E M E R G E N C Y L O W E R I N G
S ERIAL # 4022 TO 4274

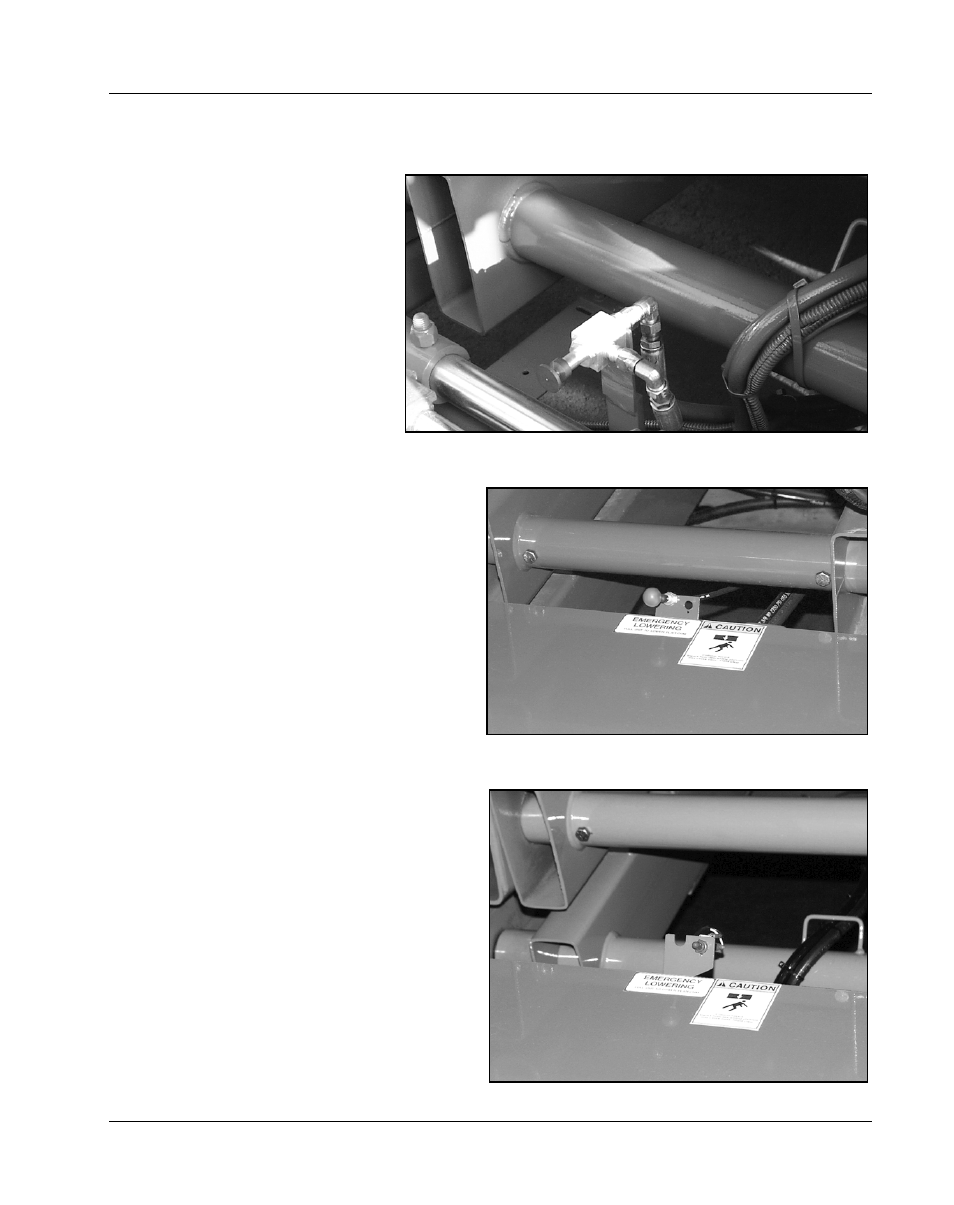

Figure 4:
The Emergency Lowering
Control is located at the rear
of the machine at the base of
the elevating assembly.
1. Open the Emergency Low-
ering Valve by pulling on
the knob and holding it.
2. Once the platform is fully
lowered, release the knob
to close the valve.
LX31 AND LX41, S ERIAL # 4275 TO C URRENT
Figure 5: Emergency Lowering Knob, LX31 and LX41
The Emergency Lowering Control Knob is
located at the rear of the machine at the
base of the elevating assembly.
1. Open the Emergency Lowering Valve by
pulling on the knob and holding it.
2. Once the platform is fully lowered,
release the knob to close the valve.
LX50, S ERIAL # 4275 TO C URRENT
Figure 6: Emergency Lowering switch, LX50
The Emergency Lowering Control Switch is
located at the rear of the machine at the
base of the elevating assembly.
1. Open the Emergency Lowering Valve by
pusshing down on the toggle switch and
holding it.
2. Once the platform is fully lowered,
release the toggle switch to close the
valve.
