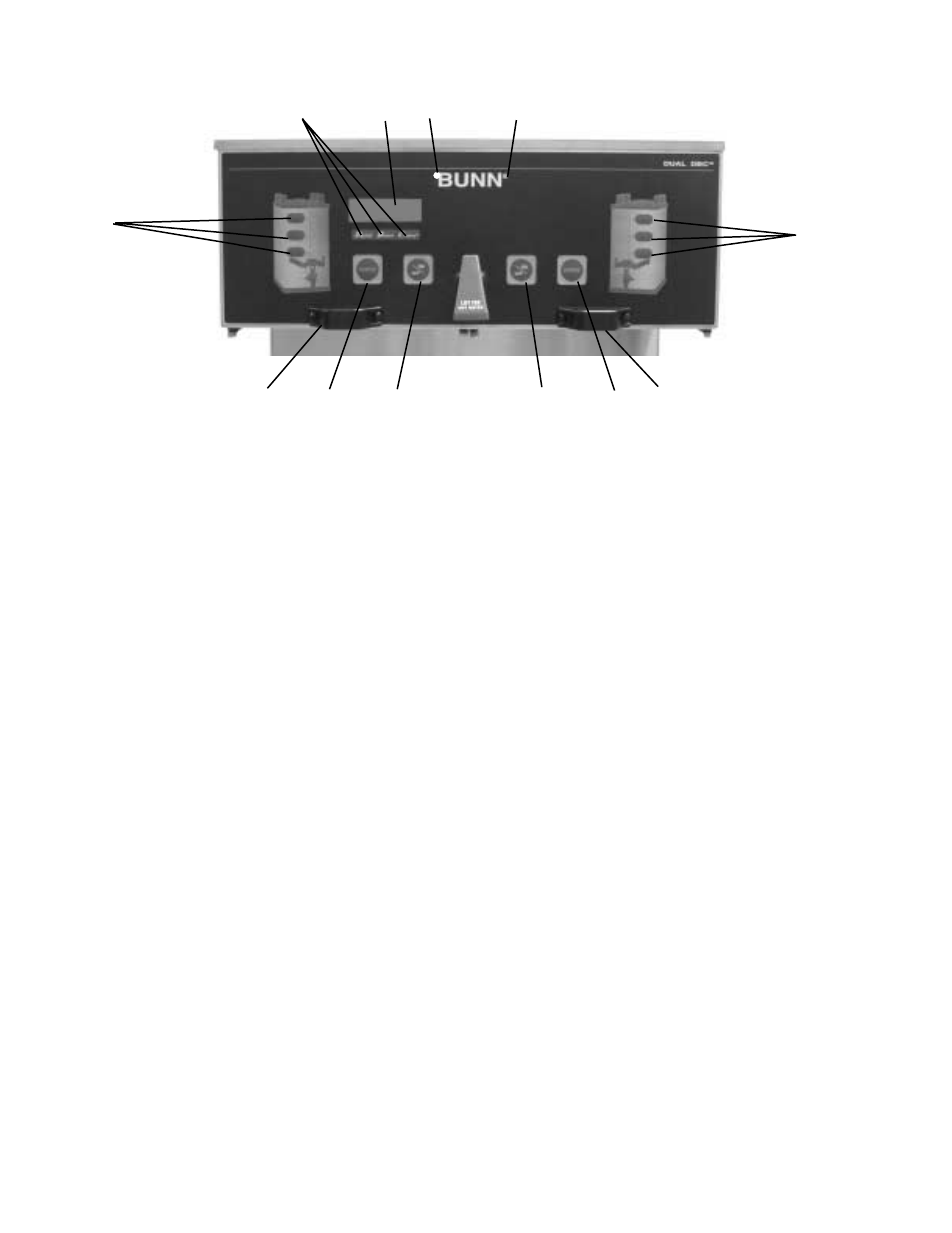

OPERATING CONTROLS
OPERATING CONTROLS
(a) BATCH SELECTOR PADS
Pressing the pad corresponding to the Small, Medium, or Large batch selects the amount of coffee to be
brewed. Pressing a different pad after a brew cycle has been initiated does not change the brew batch in progress.
Light indicates the selected batch to brew.
(b) ON/OFF PAD
Pressing the ON/OFF pad alternately turns the brewing side on and off. Pressing this pad during the brew cycle
will interrupt the brew cycle, stopping the flow of water. Pressing this pad during the programming of the brewer
will exit the setup and return to the main screen.
(c) BREW PAD
Momentarily pressing and releasing this pad begins a brew cycle.
(d) ® PAD
Pressing and holding the ® pad allows entry to the programming menus. Pressing and releasing the pad steps
through each function screen during programming.
(e) FUNCTION SCREEN
This is the display which shows the various functions of the brewer and allows the programming to be
accomplished.
(f) FUNCTION SCREEN PADS
These are the hidden pads which are used to program the brewer.
(g) FUNNEL SENSING COILS
These are used to "receive" information from the Smart Funnel TM handle (coffee name and batch size), and also
from TAG CARDS.
(h) SCROLL BACKWARDS
The upper left corner of the B in BUNN ® can be used to scroll backwards through the function list.
