Bunn Dual SH - Manual (Page 23)

Page 23
29877 080301
PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)
Setting Pulse Brew - ENTER TIMES:
NOTE: No water should flow from the brewer during
this set-up process.

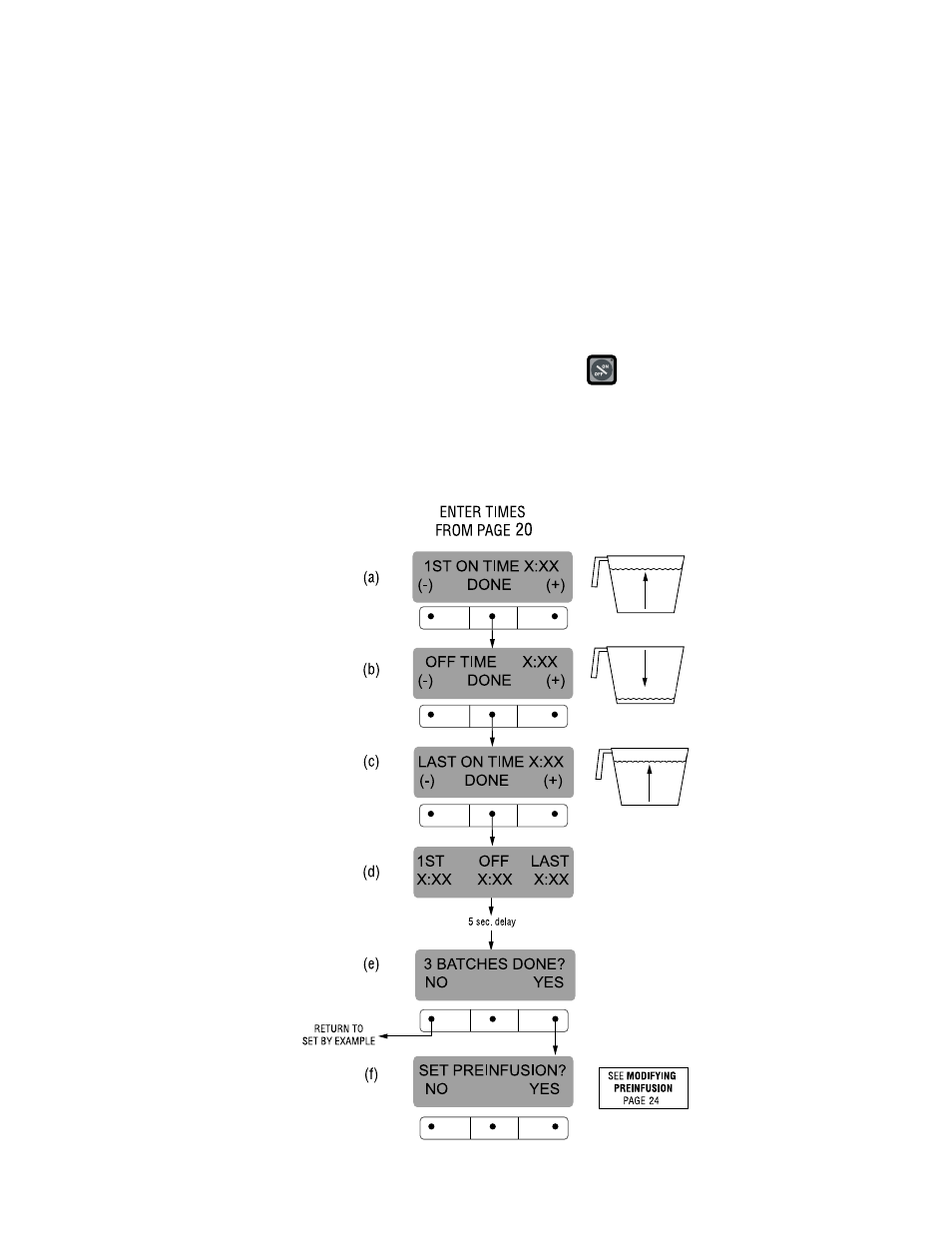

1. This display should read 1ST ON TIME X:XX.
Choose the batch size to be set by pressing the
pad next to the indicator light on the left brew side.
The batch size indicator selected will be flashing.
2. Adjust the 1ST ON TIME using (-) and (+). When
finished, press DONE. (a)
3. The display will now read OFF TIME X:XX. Adjust
the OFF TIME using (-) and (+). When finished,
press DONE.(b)
4. The display will now read LAST ON TIME X:XX.
Adjust the LAST ON TIME using (-) and (+). When
finished, press DONE.(c)
5. The display will show the three times just entered
for that batch size. After a 5 second delay, the dis-
play will read 3 BATCHES DONE?(d and e)
P2411
6. If other batch sizes need to be modified, press
NO. The display will then read SET BY EXAMPLE.
7. In that screen, press NO. The display should now
read ENTER TIMES.
8. Press YES in this screen, then press a different
batch size pad and repeat steps 2 through 4. Re-
peat until all the desired batch sizes are set for the
left side.
9. When finished press YES in 3 BATCHES DONE?.
The display will then read SET PREINFUSION.
Another alternative is to press and release either
of the pads located on the front panel of the
brewer to exit SET PULSE BREW and return to
the MAIN SCREEN.
NOTE: Pressing ® before reaching the final setting
screen exits the setup and retains the old values.
