Bunn Dual SH User Manual

Page 11

Page 11

29877 080301

PROGRAMMING THE BREWER (cont.)

PROGRAM FUNCTIONS - LEVEL 2

There are three methods of programming the

various brewing parameters of the Dual

with

Smart Funnel

Brewer.

METHOD 1:
Using a Smart Funnel

and a G92T DBC Grinder:

Certain coffee NAMES are stored in the G92T

DBC's memory. When a particular name of coffee is
ground into the Smart Funnel

, that name and the

batch size selected are transferred from the grinder to
the programming TAG located in the funnel's handle.
The funnel is then inserted into the brewer's left side
funnel rails. The sensor coil on the brewer reads the
information contained in the handle. This then allows
the operator to set the BREW VOLUMES, BYPASS
PERCENTAGES, PULSE BREW TIMES, PREINFUSION
TIMES and DRIP-OUT TIMES for that particular coffee
NAME. Each coffee NAME can be set individually to
provide optimum brewing quality.

METHOD 2:
Using a TAG CARD to enter all of the brew settings at
one time:

If using a coffee name not in the G92T DBC's

memory, the customer can obtain a TAG CARD from
the factory with all the information needed to set up
that particular coffee flavor. This includes the COFFEE
NAME, BREW VOLUMES, BYPASS PERCENTAGES,
PULSE BREW TIMES, PREINFUSION TIMES, and
DRIP-OUT TIMES.

METHOD 3:
Not using a Smart Funnel

and/or a G92T DBC

Grinder:

This allows the operator to enter ONE set of

brewing parameters for each side, in the event a Smart
Funnel

and/or a G92T DBC is not used with the

Dual

SH Brewer. This is referred to as a NO NAME

coffee flavor. If the brewer does not read the informa-
tion in the funnel's handle, it automatically selects the
NO NAME brewing parameters set up prior to brewing.
This includes the BREW VOLUMES, BYPASS PER-
CENTAGES, PULSE BREW TIMES, PREINFUSION
TIMES and DRIP-OUT TIMES for the three batch sizes.

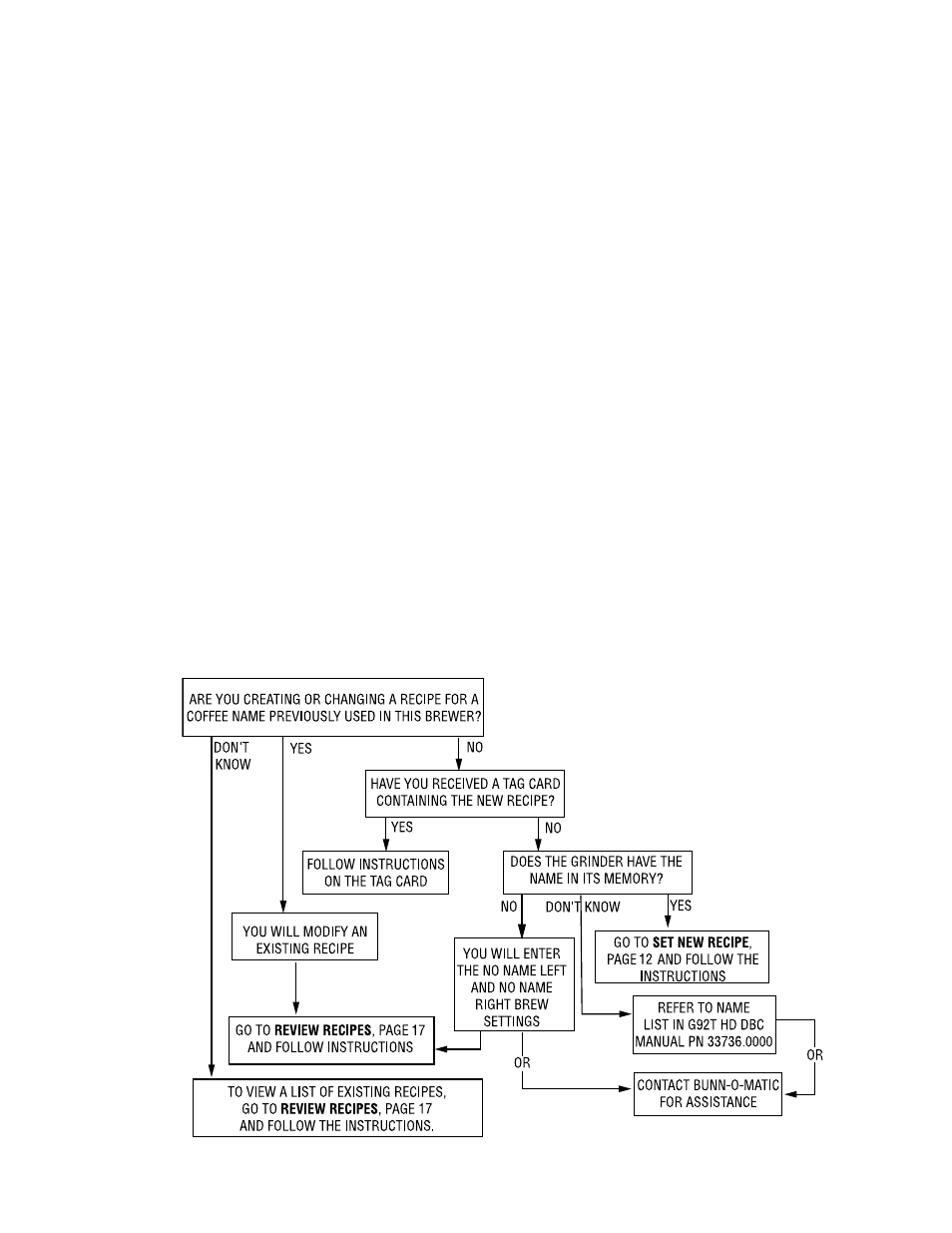

RECIPES

This diagram allows for the creating, modifying, or

viewing of recipes in the brewer.

P2369
