BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-28E-6
MAY, 2011

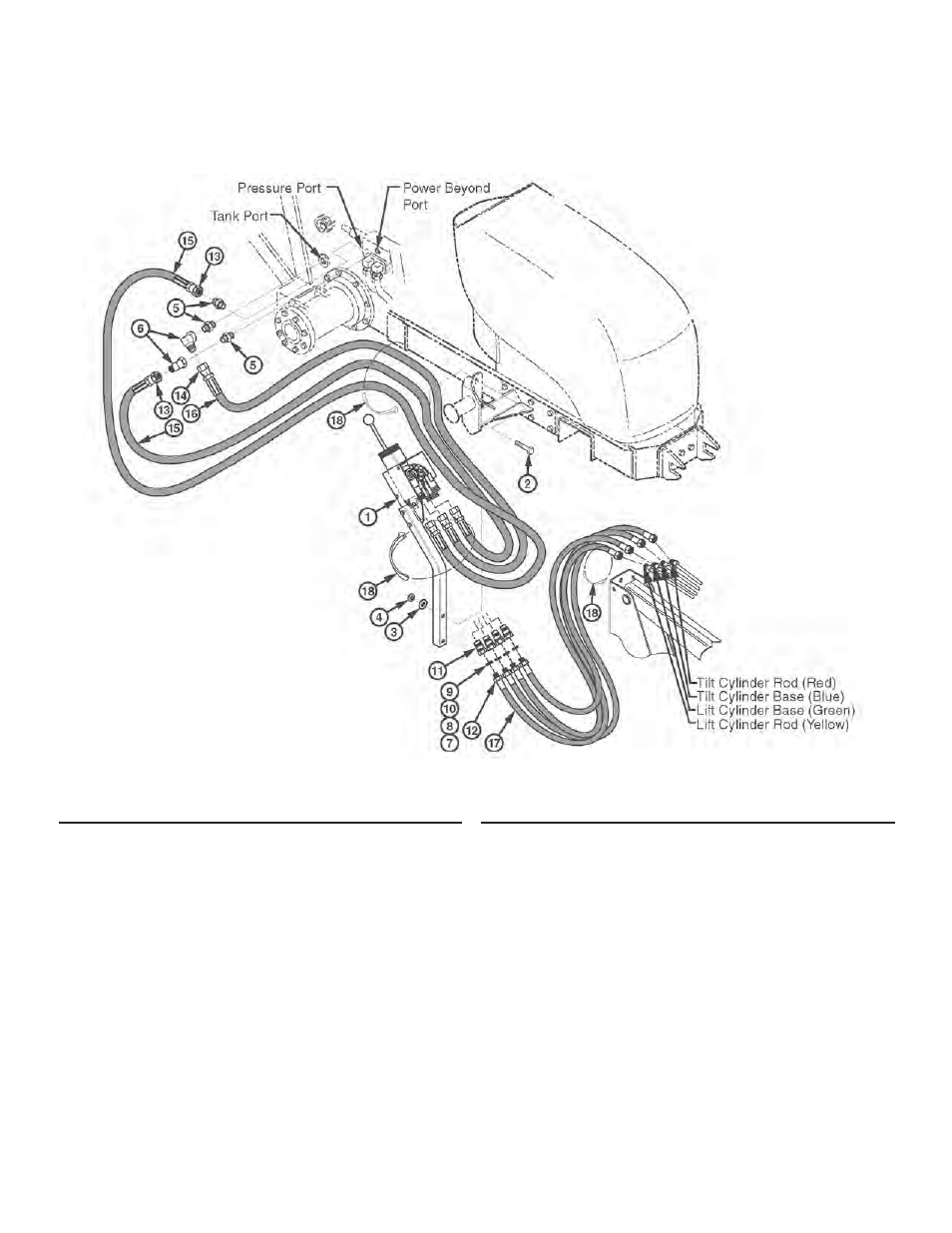

CONTROL VALVE AND PLUMBING KIT 2-7443
Case IH Models DX18E, DX22E, DX24E AND DX25EFWA
NEW HOLLAND MODELS - TZ18DA, TZ22DA, TZ24DA, TZ25DA FWA, T1010,
BOOMER1020 FWA
REF. PART DESCRIPTION QTY.
NO. NO. REQ’D.
1 52190 Valve, Assembly, 1
2 ------- Capscrew, 1/2-13 X 2-3/4" 2
3 ------- Flatwasher, 1/2" 2
4 ------- Locknut, 1/2-13 2
5 43518-2 Fitting, Straight, 1/4 Bspt Male X 9/16 Jic Male 3
6 34128-3 Fitting, Elbow, 90°, 9/16 Jic F Swivel X 2
9/16 Jic M
7 36240-1 Band, Spiral, 3/4", Blue 1
8 36240-2 Band, Spiral, 3/4", Red 1
9 36240-3 Band, Spiral, 3/4", Yellow 1
REF. PART DESCRIPTION QTY.
NO. NO. REQ’D.
10 36240-4 Band, Spiral, 3/4”, Green 1
11 6137-9 Coupler, Quick, Male 4
12 36388-8 Hose, 3/8 X 38" (Loader Boom Oil Lines) 4
13 36386-18 Hose, 3/8 X 82” (Pressure & Power Beyond) 2
14 36386-6 Hose, 3/8 X 72" (Tank) 1
15 34853-44 Sleeve, Hose, 82" 2
16 34853-78 Sleeve, Hose, 72” 1
17 34853-33 Sleeve, Hose, 38” 4
18 8137-1 Strap, Adjustable 14
19 52788 Poppet, Assembly With O-Ring 1
