BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-28E-5
MAY, 2011

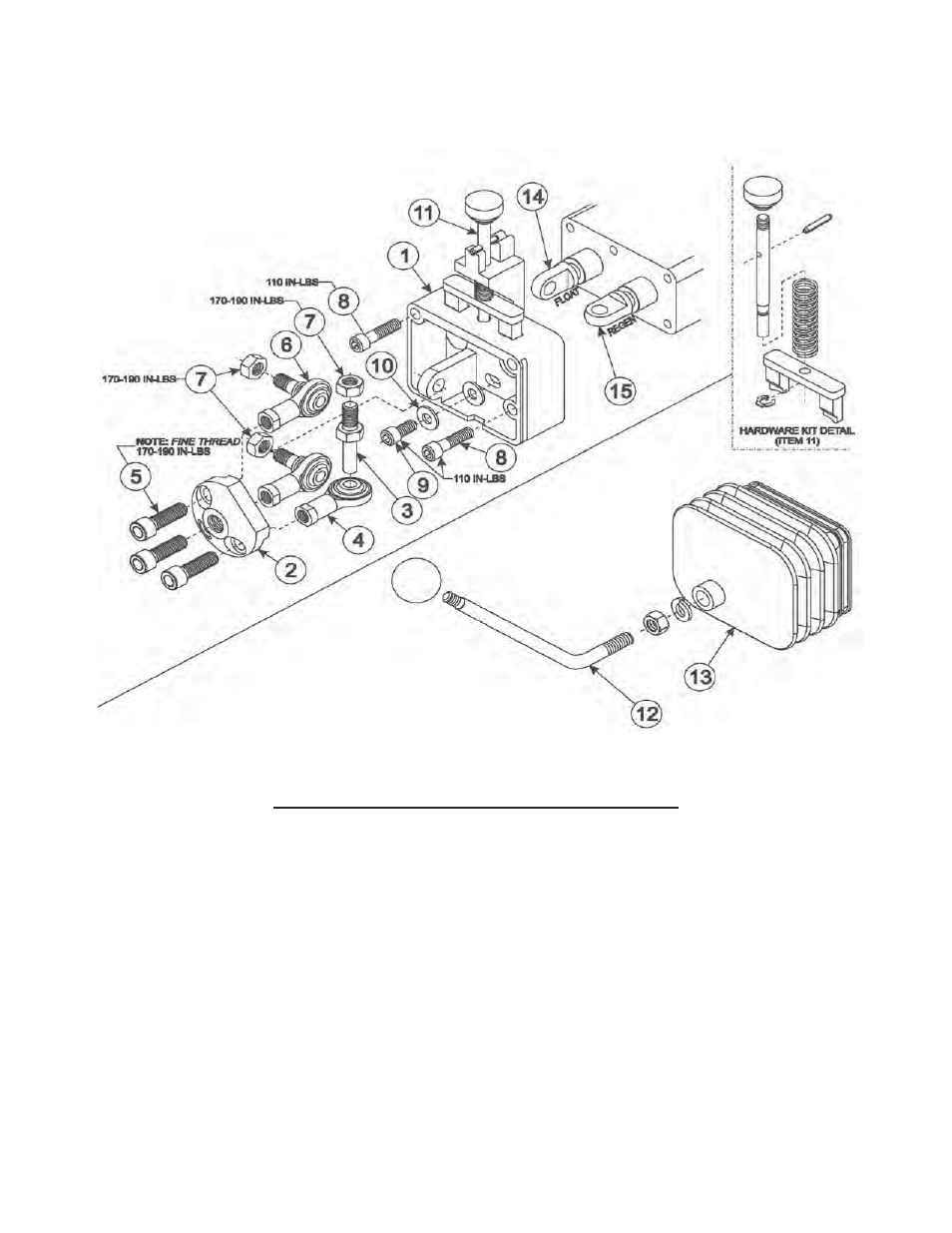

CONTROL VALVE AND PLUMBING KIT 2-7408
Massey Ferguson Models - GC2300
REF. PART DESCRIPTION QTY.
NO. NO. REQ’D.
55827 Kit, Sub-Assy, Includes Items 1-11 1
1 ------- Clevis, Spool Lock 1
2 ------- Plate, Adapter 1
3 55821 Stud, Spool 1
4 55822 End, Rod 1
5 ------- Screw, Cap 3
6 55823 Assy, Rod End 2
7 ------- Nut, Hex 3
8 ------- Screw, Cap 2
9 ------- Screw, Cap 1
10 ------- Washer, Flat 1
11 55824 Kit, Spool Lock Hardware 1
12 56004 Kit, Bent Handle 1
13 55826 Kit, Boot/Cable Tie 1
14 55917 Adapter, Float Spool 1
15 55918 Adapter, Regen Spool 1
