BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-28E-2
MAY, 2011

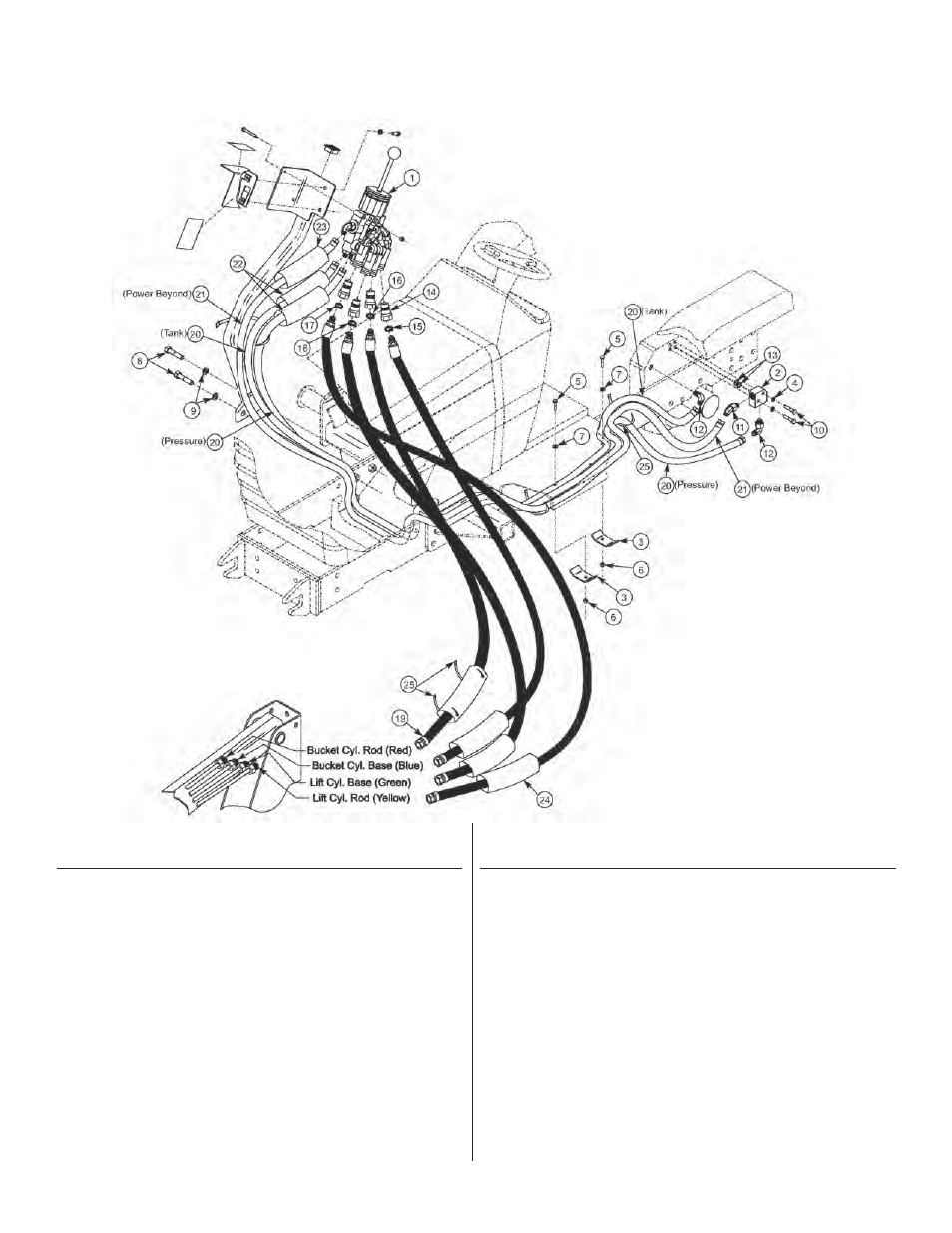

CONTROL VALVE AND PLUMBING KIT 2-7553
Kubota Models - BX1500, BX1800, BX1830, BX2200, BX2230
REF. PART DESCRIPTION QTY.
NO. NO. REQ’D.
1 51908 Valve, Assembly 1
2 51858 Block, Adapter, Bx1500, Bx1800, Bx2200 1
53346 Block, Adapter, Bx1830, Bx2230 1
3 51857 Clamp, Hose 2
4 ------- Washer, Lock, 5/16" 2
5 ------- Screw, Cap, 1/4-20 X 1-1/4" 2
6 ------- Nut, Lock, 1/4-20 2
7 ------- Washer, Flat, 1/4" 2
8 ------- Screw, Cap, 9/16-18 X 2-1/4" 2
9 ------- Washer, Lock, 9/16" 2
10 ------- Screw, Cap, 8mm-1.25 X 40mm 2
11 31213-5 Fitting, Elbow, 45°, 9/16 Jic X 9/16 O-Ring 1
12 2845-1 Fitting, Elbow, 90°, 9/16 Jic X 9/16 O-Ring 2
REF. PART DESCRIPTION QTY.
NO. NO. REQ’D.
13 6000-20 O-Ring, 5/8" 2
14 6137-9 Coupler, Male Adapter 4
15 36240-1 Band, Spiral, 3/4", Blue 1
16 36240-2 Band, Spiral, 3/4", Red 1
17 36240-3 Band, Spiral, 3/4", Yellow 1
18 36240-4 Band, Spiral, 3/4", Green 1
19 36388-8 Hose, 3/8 X 38” 4
20 36386-10 Hose, 3/8 X 90” (Pressure & Tank) 2
21 36386-3 Hose, 3/8 X 94” (Power Beyond) 1
22 34853-71 Sleeve, 1.66 X 90” 2
23 34853-72 Sleeve, 1.66 X 94” 1
24 34853-33 Sleeve, 1.66 X 38” 4
