BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-28E-1
MAY, 2011

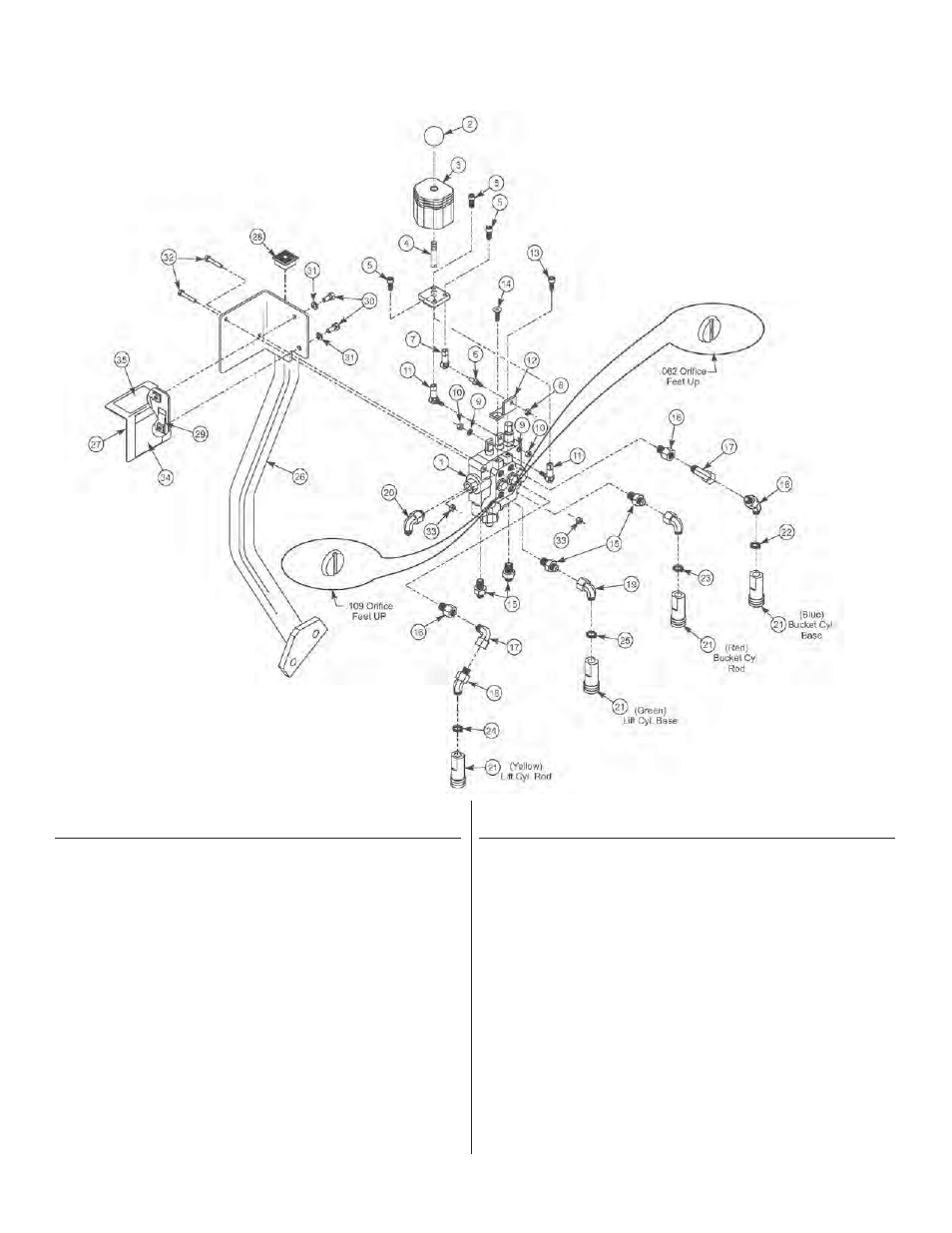

CONTROL VALVE AND PLUMBING KIT 2-7553
Kubota Models - BX1500, BX1800, BX1830, BX2200, BX2230
REF. PART DESCRIPTION QTY.
NO. NO. REQ’D.
1 51908 Valve, (1600psi) 1
2 38902 Ball 1
3 43635 Boot 1
4 38902 Handle 1
5 ------- Screw, Socket Head, 1/4-28 X 3/4" 3
6 38904-1 Stud, Ball Joint 1
7 38900-5 Ball Joint, Female 1
8 ------- Nut, Lock, 1/4-28 1
9 ------- Washer, Lock, 1/4" 2
10 ------- Nut, Hex, 1/4-28 2
11 26009-3 Ball Joint, Male 2
12 38903 Bracket, Valve Linkage 1
13 ------- Screw, Socket Head, 5/16-24 X 3/4" 1
14 38911-1 Screw, Flat Head Socket, 5/16-24 X 3/4" 1
15 32844-1 Fitting, Straight, 9/16 Jic X 9/16 O-Ring 4
16 42062-6 Fitting, Straight, Swivel, 9/16 Jic X 9/16 O-Ring 2
17 34128-3 Fitting, Elbow, 90°, 9/16 Jic X 9/16 Jic 2
18 31213-5 Fitting, Elbow, 45°, 9/16 Jic X 9/16 O-Ring 2
REF. PART DESCRIPTION QTY.
NO. NO. REQ’D.
19 44277-2 Fitting, Elbow, 90°, 9/16 Jic X 9/16 O-Ring 2
20 32845-1 Fitting, Elbow, 90°, 9/16 Jic X 9/16 O-Ring 1
21 6147-9 Coupler, Female 4
22 36240-1 Band, Spiral, 3/4", Blue 1
23 36240-2 Band, Spiral, 3/4", Red 1
24 36240-3 Band, Spiral, 3/4", Yellow 1
25 36240-4 Band, Spiral, 3/4", Green 1
26 51850 Valve Stand Assembly 1
27 51910 Cover Assembly, W/Decals 1
28 44274-1 Plug, Square Tube 1
29 6067-1 Nut, Speed, 5/16-18 2
30 ------- Screw, Cap, 5/16-18 X 3/4" 2
31 ------- Washer, Lock, 5/16 2
32 ------- Screw, Cap, 1/4-20 X 2" 2
33 ------- Nut, Lock, 1/4-20 2
34 25801 Decal, Warning 1
35 38929 Decal, Single Handle Control 1
