BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-28E-4
MAY, 2011

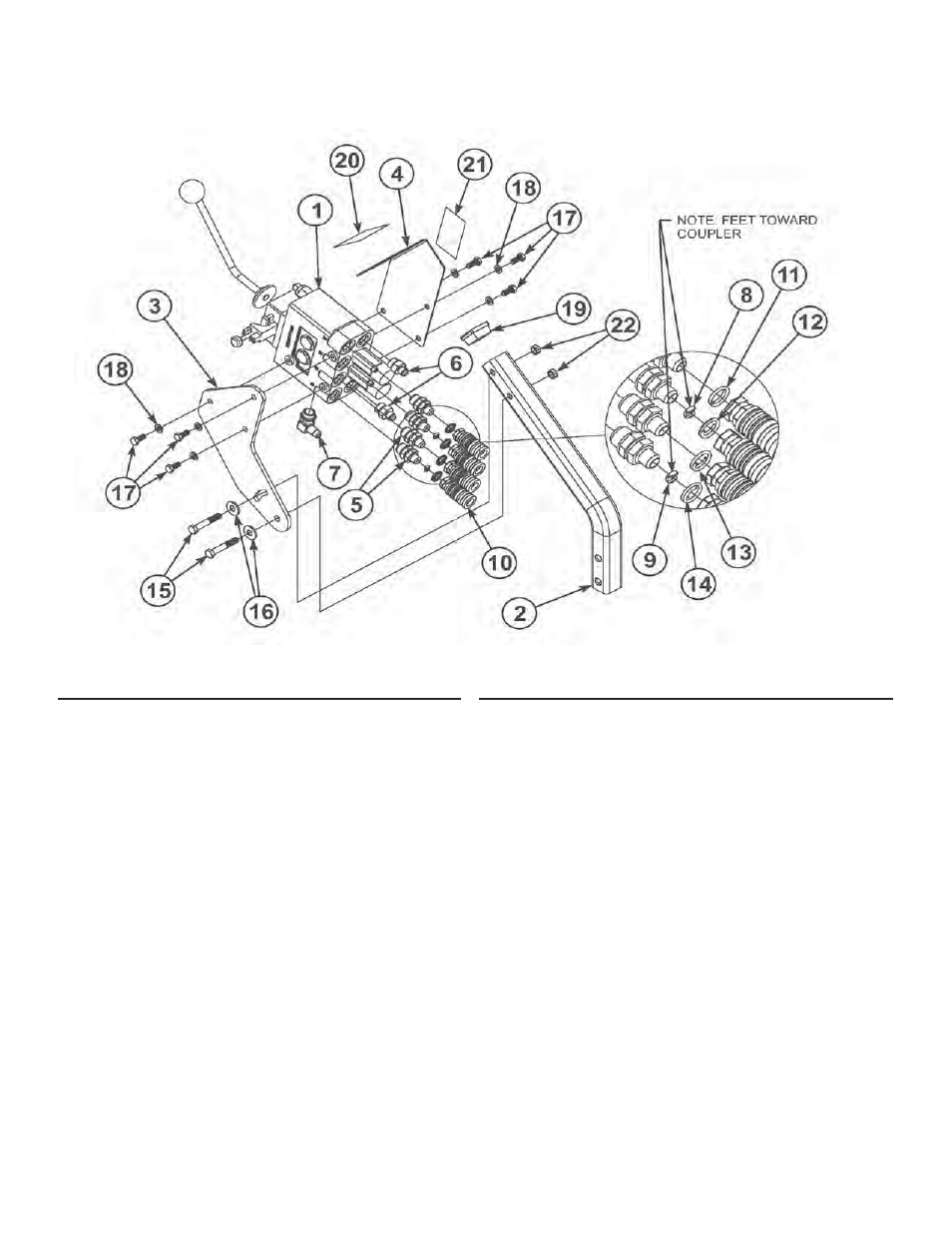

CONTROL VALVE AND PLUMBING KIT 2-7408
Massey Ferguson Models - GC2300
REF. PART DESCRIPTION QTY.
NO. NO. REQ’D.
1 53462 Assy, Loader Valve - 1800 Psi 1
2 56064 Tube,Valve Mount 1
3 56065 Plate,Valve Mount 1
4 56066 Plate,Valve Cover 1
5 48670-3 Adapter,Str 8 mab - 6 mb 4
6 32844-5 Adaptor, 9/16-18x3/4-16 2
7 32845-7 Adp Hyd Elbow 6mj - 8mb90 1
8 48004 Orifice Plate 1
9 47879 Orifice Plate 1
10 6147-9 Coupling Body 4
11 36240-5 Spiral Band,Plastic-Blue 1
REF. PART DESCRIPTION QTY.
NO. NO. REQ’D.
12 36240-6 Spiral Band-Plast-Red 1
13 36240-7 Spiral Band-Plast-Yellow 1
14 36240-8 Spiral Band-Plast-Green 1
15 ------- Capscreqw 3/8-16 x2.25” Lg Gr 5 2
16 ------- Flatwashert 3/8 W-Std 2
17 ------- Capscrew, 5/16-18 X .75” Lg Gr 5 6
18 ------- Lockwasher 5/16 6
19 44274-1 Plug, Square Tube 1
20 38929 Decal-Single Handle Control 1
21 25801 Decal-Warning 1
22 41840-3 Locknut 3/8-16 2
