BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-28E-3
MAY, 2011

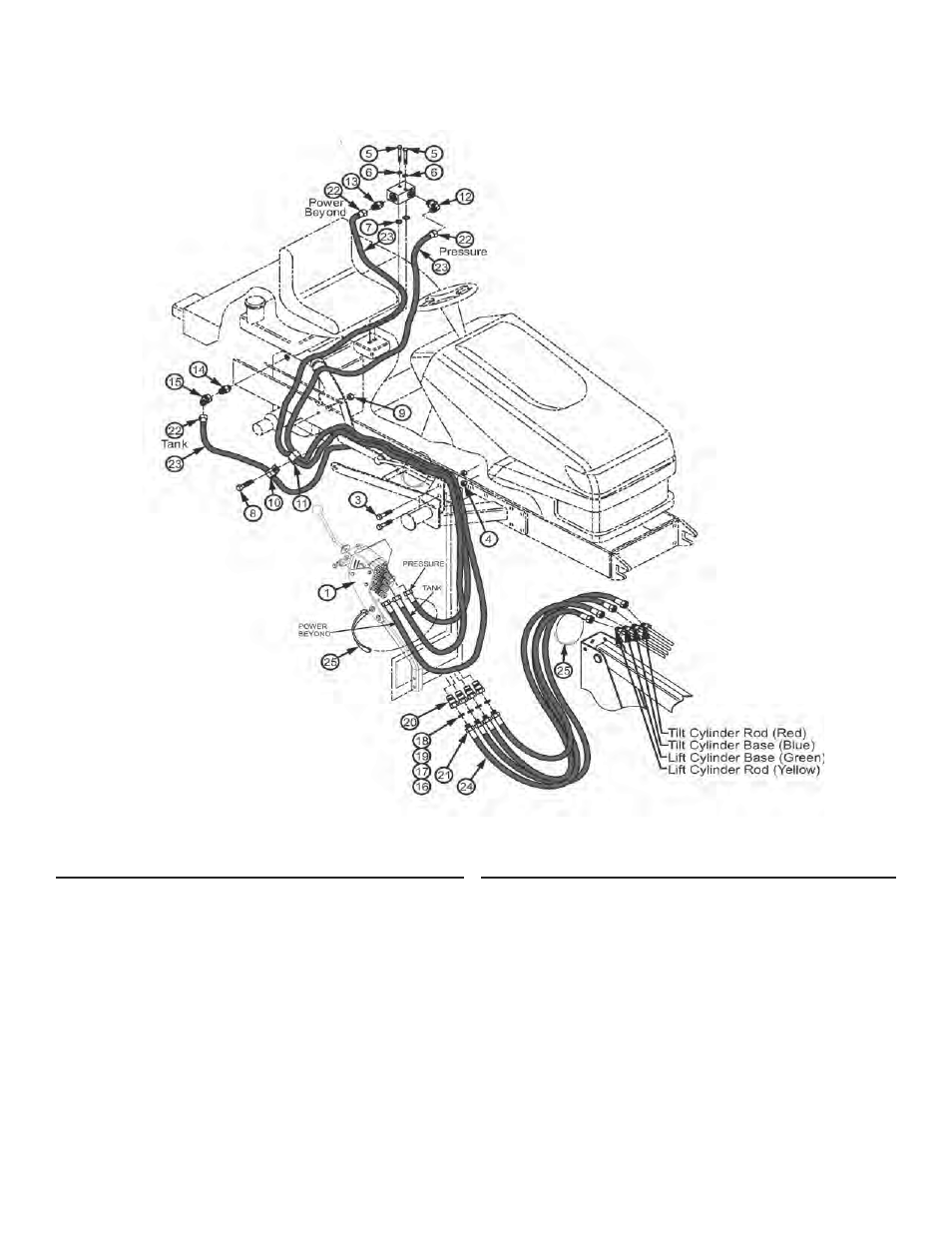

CONTROL VALVE AND PLUMBING KIT 2-7408
Massey Ferguson Models - GC2300
REF. PART DESCRIPTION QTY.
NO. NO. REQ’D.
1 53462 Valve Assy. 1
2 52183 Adapter Block 1
3 ------- Capscrew 1/2-13 x 2.00” Lg Gr5 2
4 ------- Lock Nut 1/2-13 2
5 ------- Capscrew 6mm-1.00 x 45 2
6 ------- Lockwasher 1/4 2
7 6000-20 O-Ring 2
8 -------- Hhcs 3/8-16 X 1.25” Lg 1
9 ------- Lock Nut Ydp 3/8-16 1
10 8222-3 Clamp, Tube 5/8 Zp 1
11 39047-2 Hose Clamp, Double 0.687 1
12 32845-1 Adp Hyd Elbow 6mj - 6mb90 1
13 32844-1 Adapter, 9/16-18 37 1
REF. PART DESCRIPTION QTY.
NO. NO. REQ’D.
14 36249-1 Fitting - Straight W/ O-Ring 1
15 38226-1 Elbow 6 MJIC - 6 FJIC x 45 1
16 36240-5 Spiral Band, Plastic-Blue 1
17 36240-6 Spiral Band-Plast-Red 1
18 36240-7 Spiral Band-Plast-Yellow 1
19 36240-8 Spiral Band-Plast-Green 1
20 6137-9 Coupling,Male 1/4” 4
21 36388-8 Hose 3/8 X 38” (Loader Boom Oil Lines) 4
22 32837-18 Hose 0.25 X 72” (Pressure, Tank, 3
And Power Beyond)
23 34853-78 Nylon Sleeve, 1.00 X 72” 3
24 34853-33 Nylon Sleeve 1 X 38” 4
25 8137-1 Strap-Adjust .19 X 11.00 B 1 4
