Synergy 523X - Jeep YJ Cage Kit User Manual
Page 10

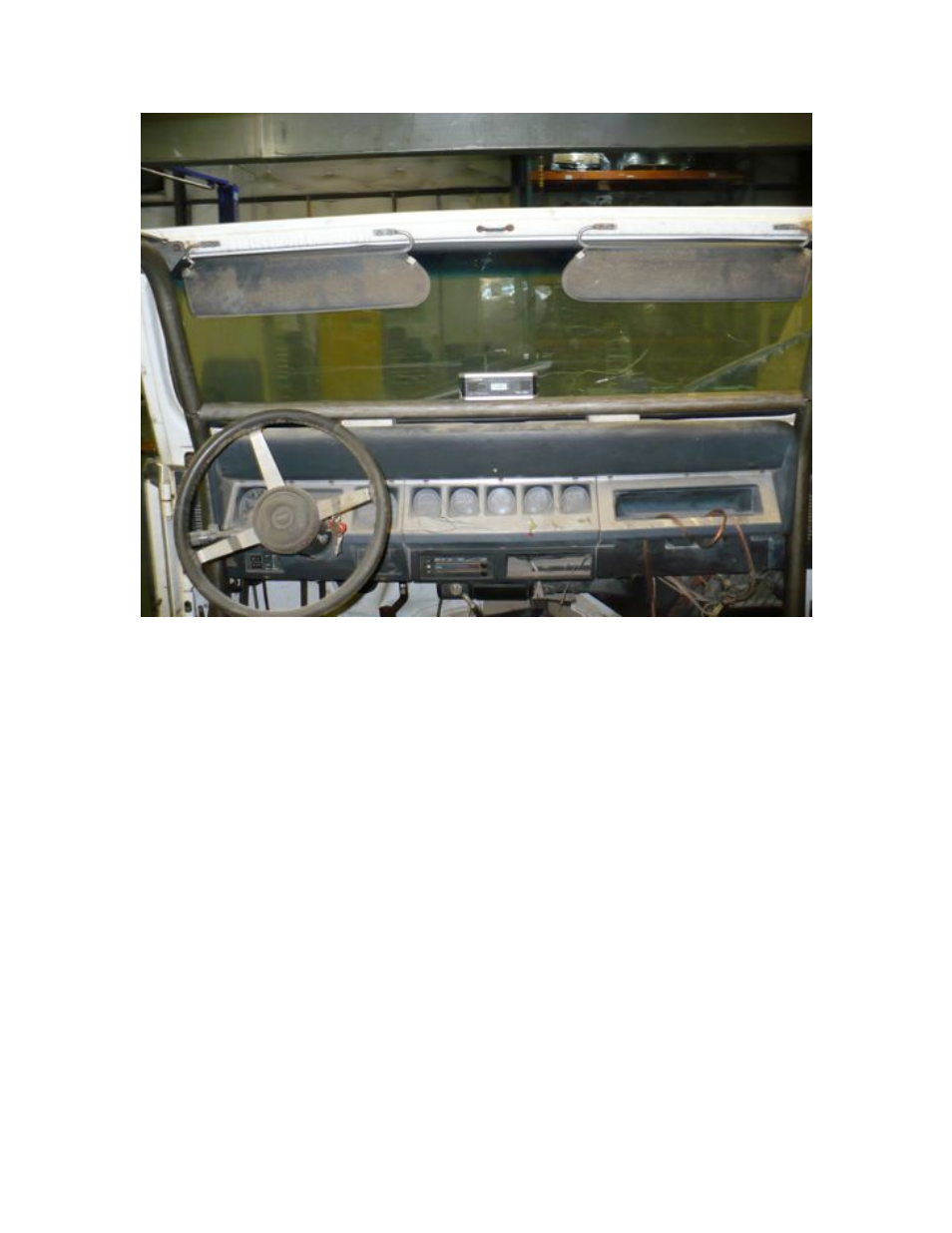

Picture 11.1b
12) Next, fit the 523104 Top A-Pillar Cross Bar in place in addition to the 523105 Top
Spreader Tubes.
a. The bend in the spreader tubes goes towards the front of the Jeep.
b. The 523104 Top A-pillar cross tube is notched at a slight angle to match
the A-pillar angle. Be sure to orient this correctly.
c. Use a pair of ratchet straps or some clamps as shown to square the cross
tube and position it in the proper place for the spreader tubes to fit
correctly. See pic 12.1c
d. The top spreader tubes spacing is up to the installer, however to match the
rear cage kit, they should be spaced approximately 10” apart on center.
See pic 12.1d
