Synergy 5221 - 07-10 Jeep JK 2/4 Door Front Cage Kit User Manual
Page 32

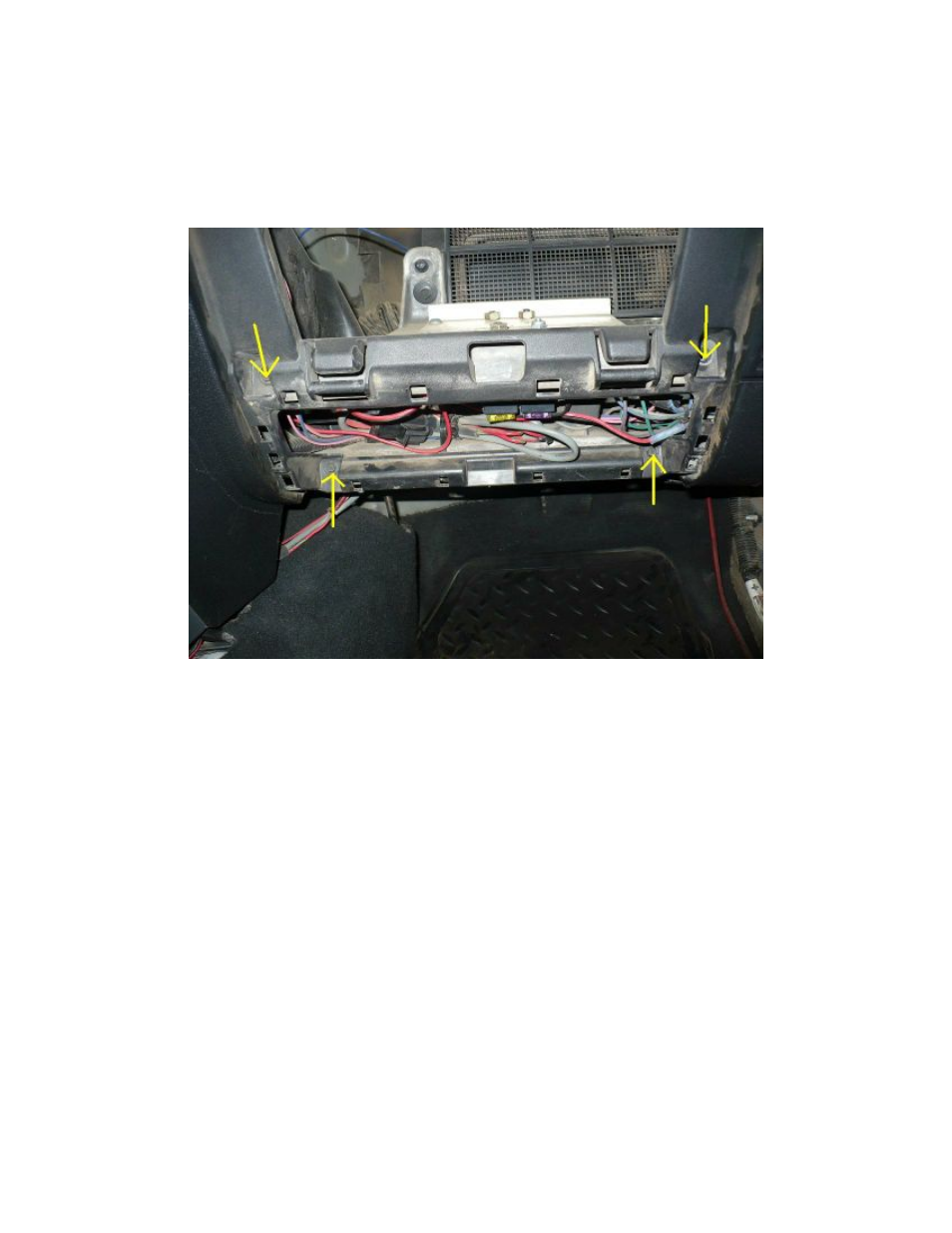

47. After glove box is removed, remove the lower trim panel, grab handle and four 7mm
bolts in the image below.
48. From this point, the remaining steps for A-pillar fitment on the passenger side are the
same as they are for the driver’s side. Speaker removal, dash bracket and A/C duct
trimming all closely follow the procedures described for the driver’s side. Refer back
to those steps before moving on.
49. Once both A-pillars are tacked into position, begin fitting the dash bar 522103-02.
Space the dash bar off the dash the desired amount. **Note** it is designed to be
spaced approximately 1” off the dash itself to fit correctly between the A-pillars.
