Synergy 5022-02 - Jeep JK Frame Side RLCA Gusset Kit - Manual (Page 7)

8) Driver’s side installation is complete. Passenger side is the same up until step 6 where fitment of inner
gusset takes place. To properly fit and install the inner gusset plate, the gas tank must be removed for
adequate clearance.

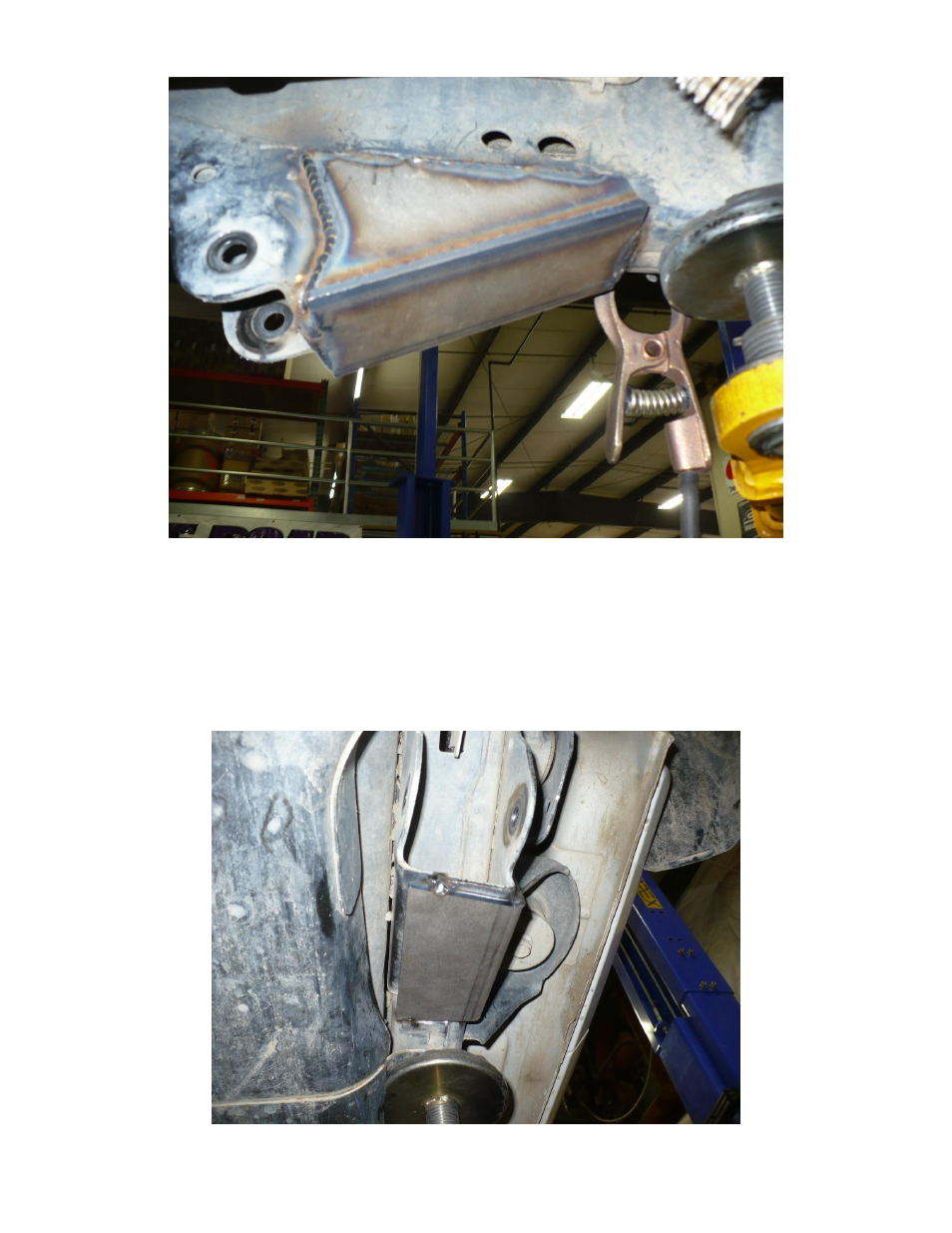

 If gas tank removal is not desired, install outer gussets only as shown. Careful when
welding around the plastic portions of the gas tank. Completed gussets should appear as
shown in IMG 8.1 & 8.2 below.
 Note, some trimming of factory gas tank skid or LCA skid is required for fitment. See
Images 8.3 & 8.4 below.
 If gas tank removal is desired, proceed to step 9 for instructions on removal.
IMG 8.1
