Synergy 5014-A - Jeep JK Rear Air Bump Kit User Manual
Page 5
8. Depending on axle location due to longer control arms, position of the air bump mount may vary. We have
found that 5-3/8” back from the same frame hole used earlier is the ideal location on Jeeps featuring 3-4.5”
lift and control arms set at about ½” longer than stock. See image 8.1 below.
9. Positioning of the air bump mount can be adjusted front to back as needed for proper alignment on the axle
pad. Be sure to check sway bar clearance and axle pad engagement at bump.

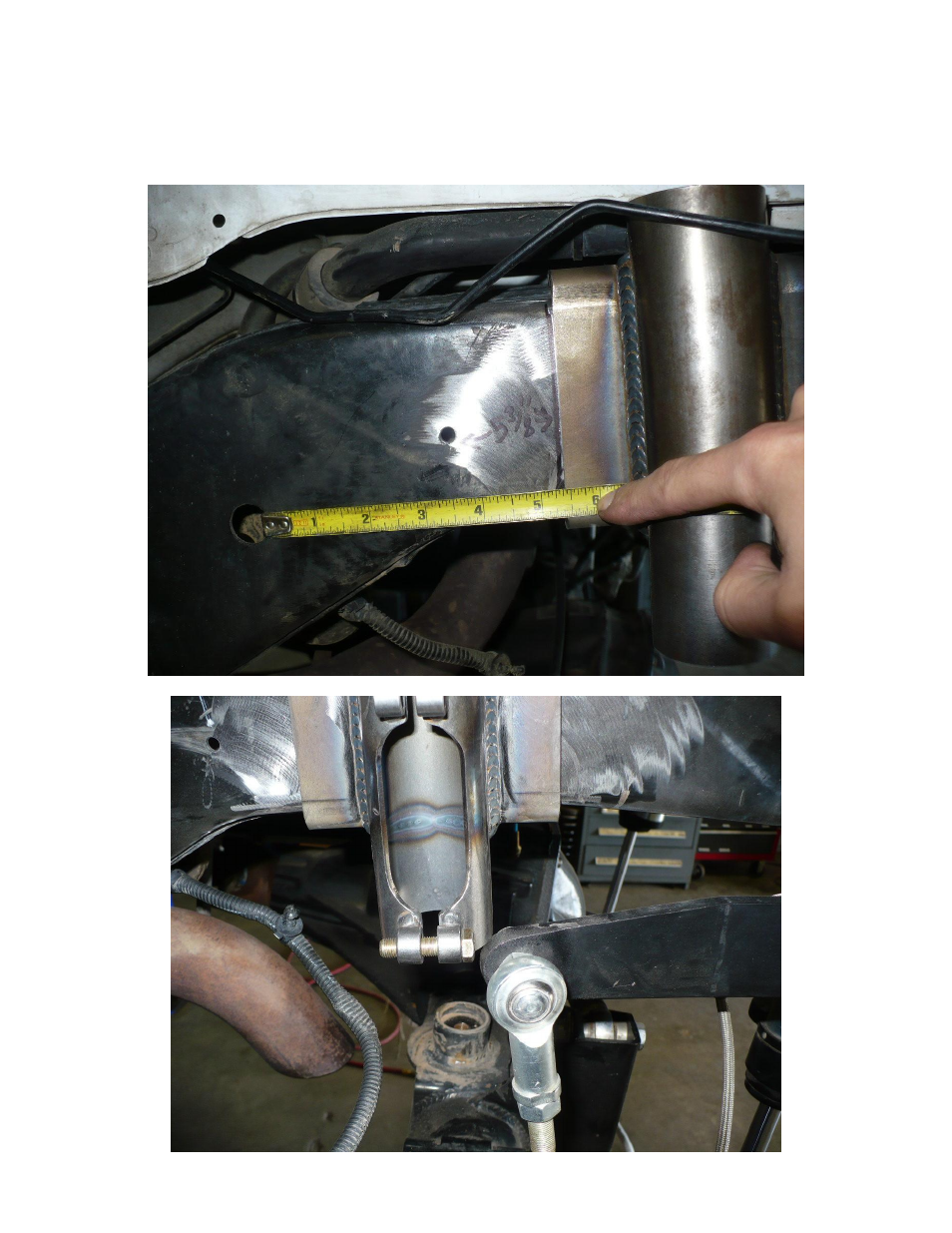

IMG. 8.1
