Synergy 5014-A - Jeep JK Rear Air Bump Kit User Manual
Page 2
3. Clean up the remainder of the area with a grinder / sanding disc until the frame is smooth.

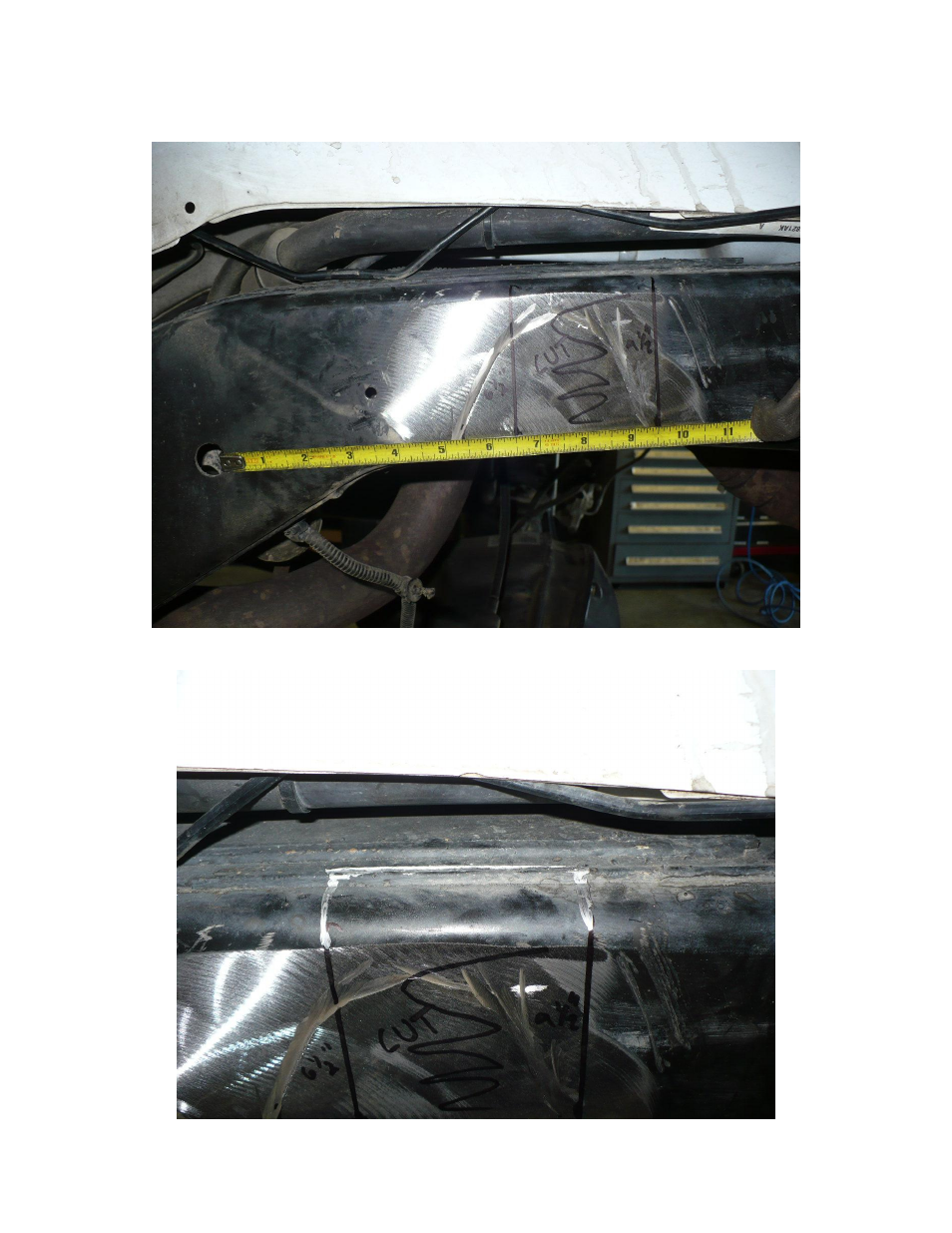

4. With the frame cleaned up, measure 6-1/2” and 9-1/2” back from the frame hole shown below.
5. Mark cut lines on both top and bottom of frame. Cut lines should go to the back of the first weld seam on
both top and bottom of frame. See images below.
