Lukas Concrete crushers User Manual

Page 17

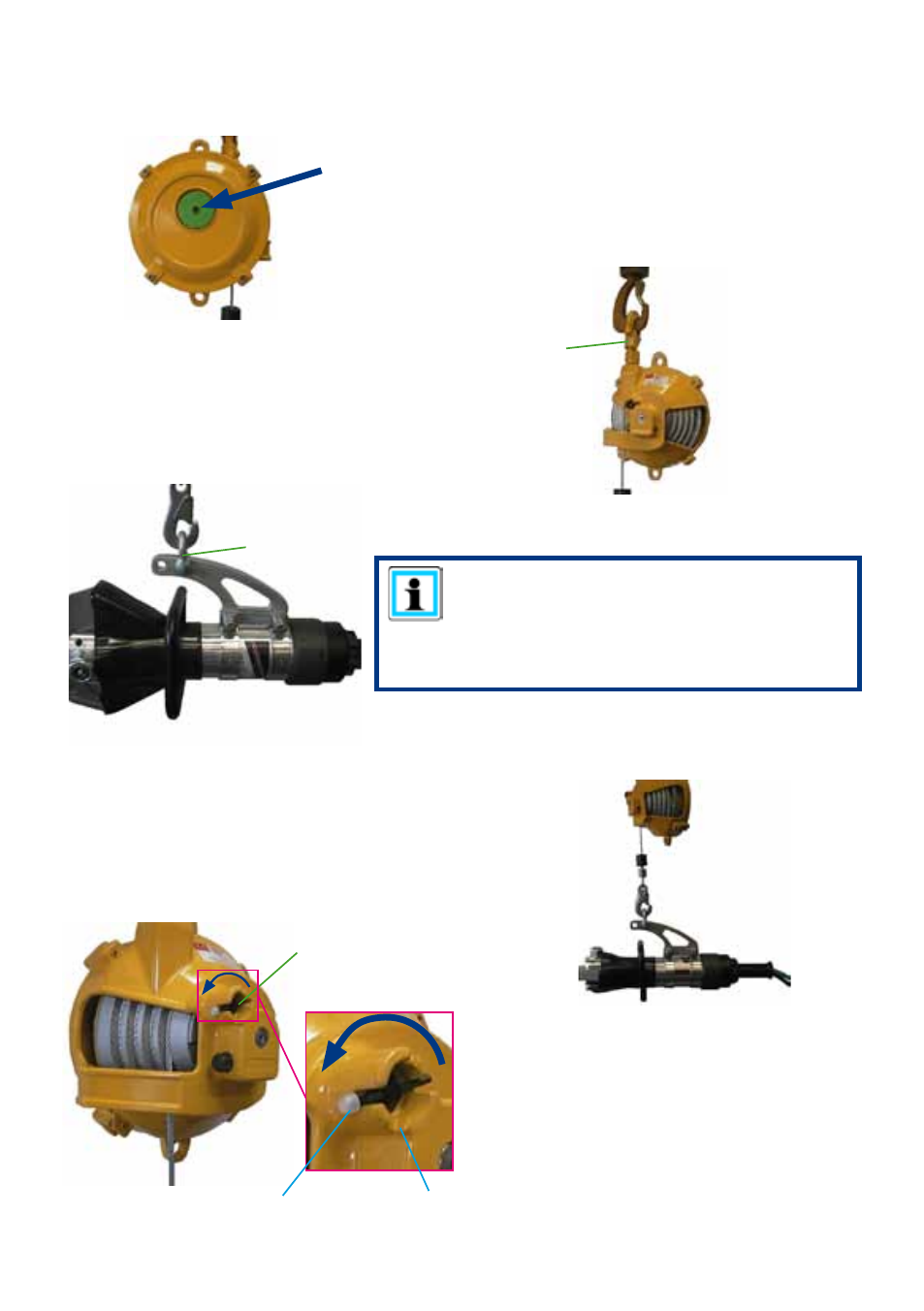

Then fix the recycling unit to the swing bracket (see il-

lustration at left hand side).

First set the weight of the recycling unit on the green

rotating ring on the back of the balancer (see arrow on

illustration at left); this ensures that the cutting unit later

stays at any height position at a later time.

Fix the balancer using the attached hook (see illustration

at right hand side, Item 1) onto the suspension device

provided (e.g. outrigger hooks)

Engaging point:

Pull out locked

Engaging point:

Pull out unlocked

5.4 Mechanical fixing to a balancer from the LUKAS range of acces-

sories

NOTE:

The unit cannot be clamped in the suspension

device!

This is because the recycling unit is mounted

in a rotating manner in the swing bracket.

The swing bracket is fitted with 2 holes in order to balance

out the centre of gravity differences by fixing the shackle

(see illustration at left, Item 2) in the 2nd hole.

The recycling unit should now be aligned

vertically to the steel rope of the balancer (see

illustration at right).

Unlock the balancer by pulling out the

pin (see illustration, Item 3) and then

turn anti-clockwise to the second, slightly

higher engaging point and then releasing

to allow it to engage.
