14
5. Connecting the equipment
5.1 General points
There are two short hoses on the side of the equipment: they are connected to the pump unit
via two hoses. All hose assemblies are marked with a colour and have couplings to enable
non-interchangeable connection.

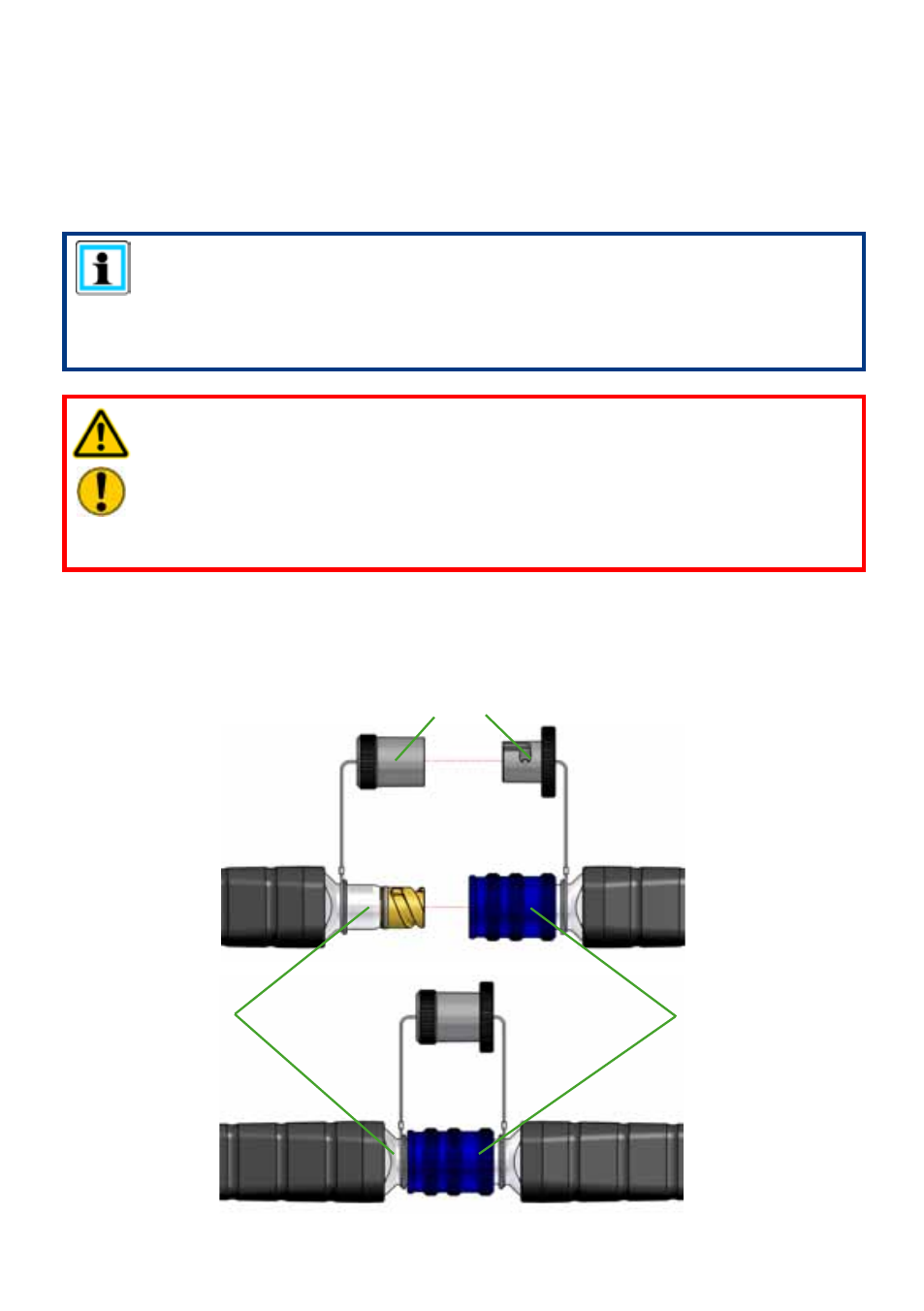

Mono-coupling
half (female)
Dust protection caps
The device is connected to the hose line to the hydraulic pump using non-interchangeable
monocoupling halves (female and male coupling).
NOTE:
The devices can be equipped with different coupling systems.
They differ only by the article number and not by the designation.
It goes without saying that the coupling systems can also be converted at a
later time.
WARNING / DANGER / CAUTION!
Prior to connecting the devices, ensure that all the components
being used are suitable for the maximum operating pressure
of the pump unit. In case of doubt you must consult LUKAS
directly.
5.2 Coupling Mono-couplings
Mono-coupling
half (male)
