14
4.4 Controlling the operating movements

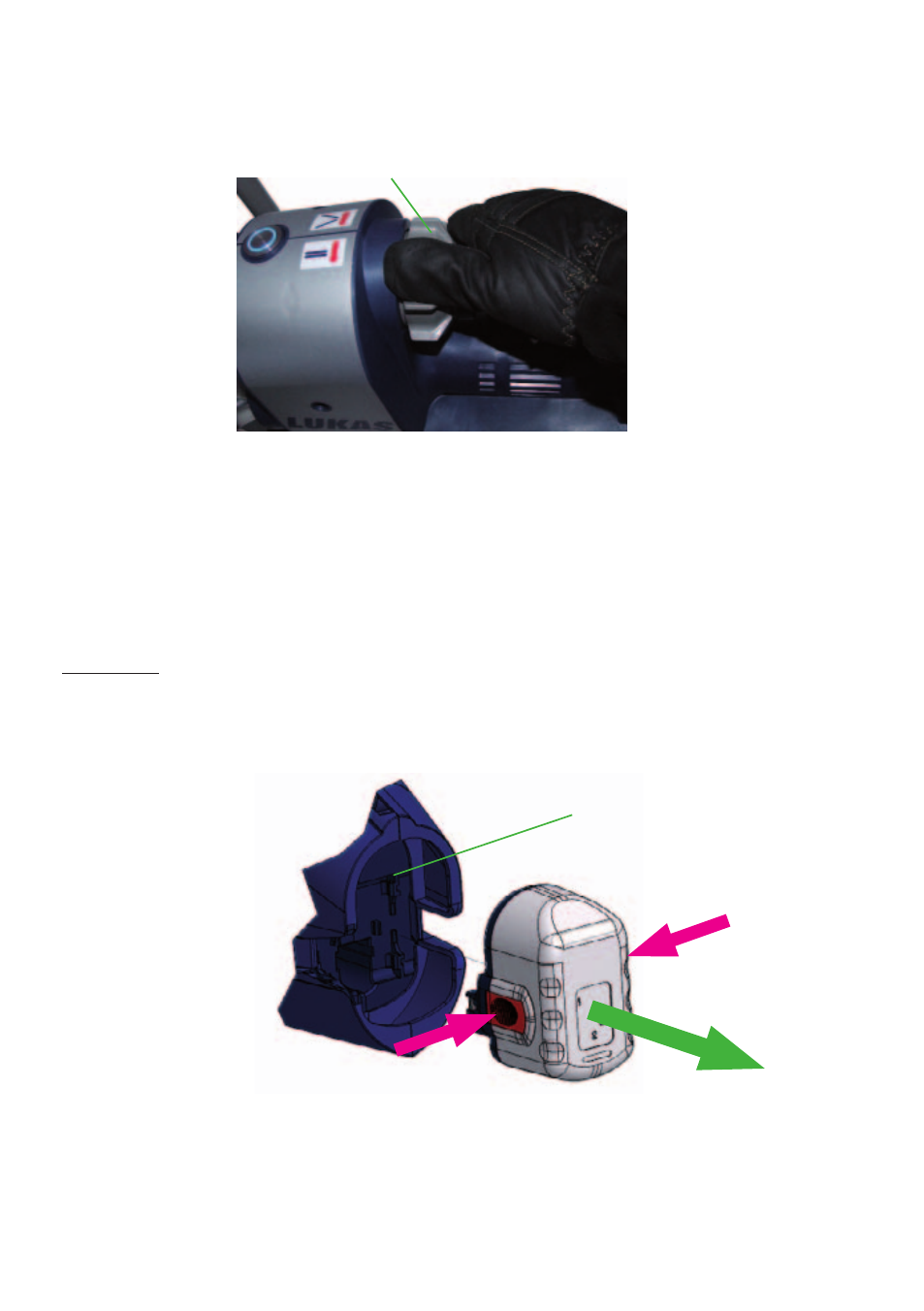

The piston movement is controlled by the star grip on the attached valve (see illustration
below).
Star grip
5.1 Battery or power supply for eDRAULIC device
5. Operation
5.1.1 Initial start-up
Before initial operation, the battery (where used) of the rescue device must be fully loaded,
using the external charger.
Procedure:
1. Unplug the power supply (where used) from the mains.
2. Fully press down the two unlocking buttons and carefully pull the battery or power
supply out of the device.
Do not use force!
3. The battery can now be recharged in the charger (please take note of the separate
operating instructions for the charger and the batteries to be used); alternatively,
the power supply can be replaced.
4. Insert the recharged or new battery into the eDRAULIC device until it reaches the stop.
The battery or power supply will be automatically locked when correctly operated.
Connection slot
