Apple Mac Pro (Early 2008) User Manual
Page 53
Chapter 3
Making a Good Thing Better
53
4

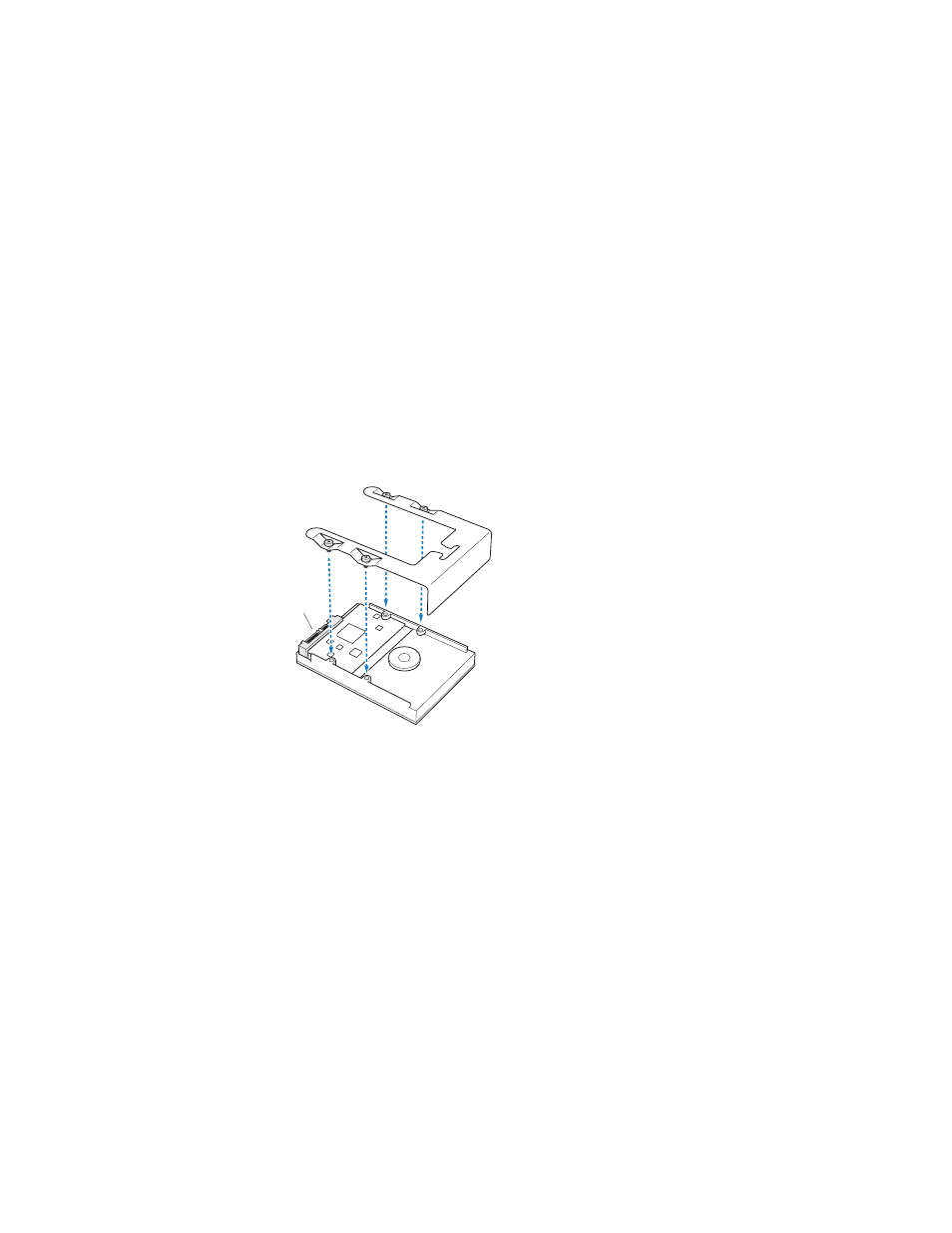

Position the carrier over the hard disk drive with the connectors at the rear.
5
Use the four screws on the carrier to attach the hard disk drive to the carrier.
Important:
If the printed circuit board is exposed on the bottom of the hard disk drive,
hold the drive by its sides. To avoid damaging the drive, don’t touch the printed circuit
board.
Connectors
