AEM 30-5130 Analog Wideband UEGO Gauge Gasoline AFR User Manual
AEM For the car
Table of contents
Document Outline

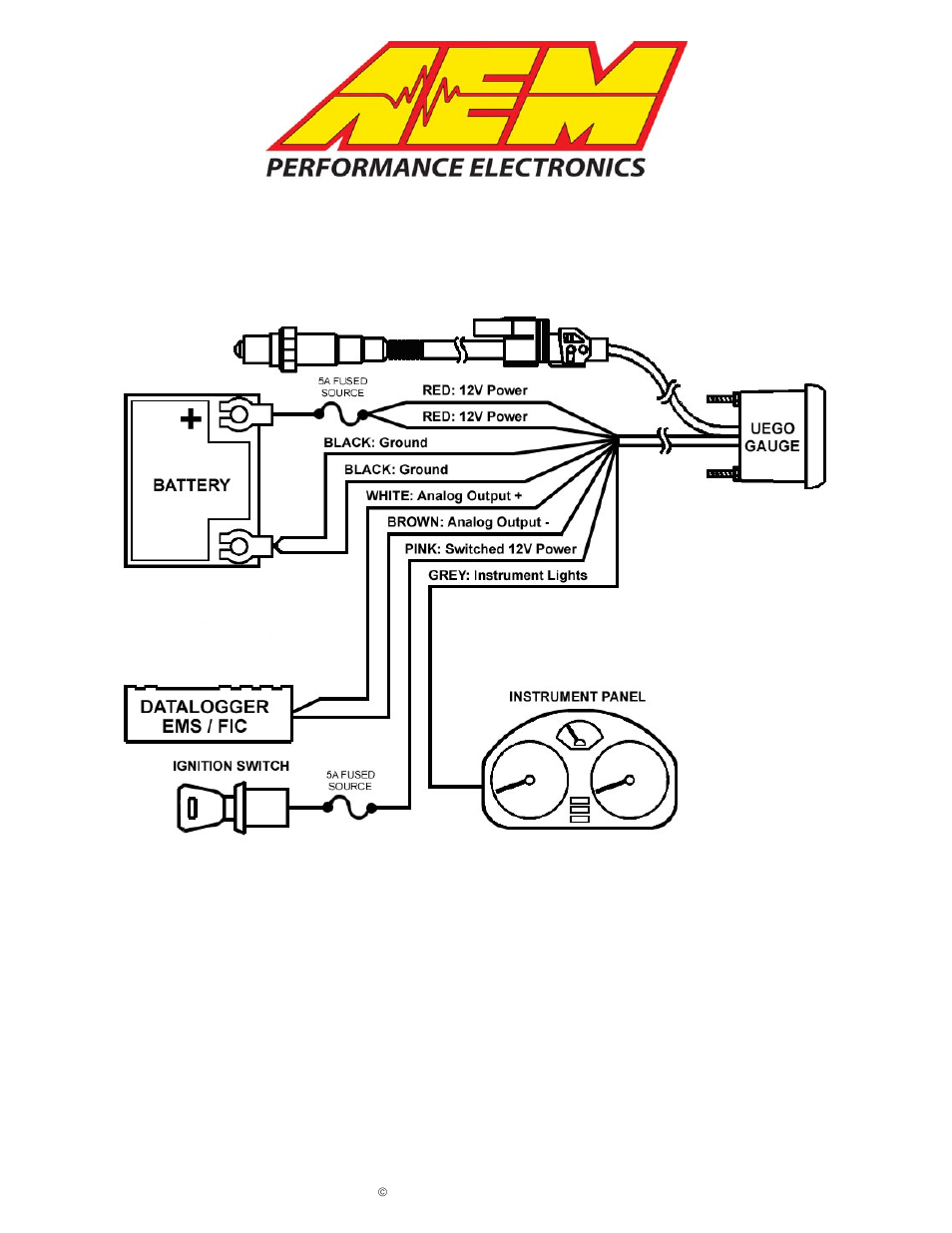

- INSTALLATION
- RED - Connect BOTH RED wires to a constant 12 volt power source utilizing a 5A fuse.
- BLACK – Connect BOTH BLACK wires to a clean power ground.
- PINK - Connect to a switched 12 volt power source utilizing a 5A fuse.
- GREY - Connect to instrument lighting circuit supply voltage.
- *WHITE - Connect to Lambda + Input.
- *BROWN - Connect to Lambda – input. (Must be connected if Lambda + is used)
- Changing the Bezel
- The Analog Wideband UEGO Gauge has 7 different backlight colors available to the end user, which closely match some of the more common factory dash panels: white, blue, green, red, orange, light blue, and aqua. To change the backlight color, rotate the backlighting switch using a small precision style screwdriver. The backlight switch is accessed through the small hole in the back of the gauge.
- Status Lights
- Analog Output
