Tank Install
Find a suitable location to mount the tank. The tank should be
mounted such that it is below the injection point. The tank and
pump must be mounted in the same area. Use 4 of the 8 supplied #8
sheet metal screws along with the 4 large washers or the 5/16-18
bolts and Nylock nuts to mount the 1-gallon tank.
(Optional 5 Gallon Tank Install)
Before mounting the tank, check the area under the desired mounting
location for fuel tanks, fuel lines, or any other obstructions. Mount the

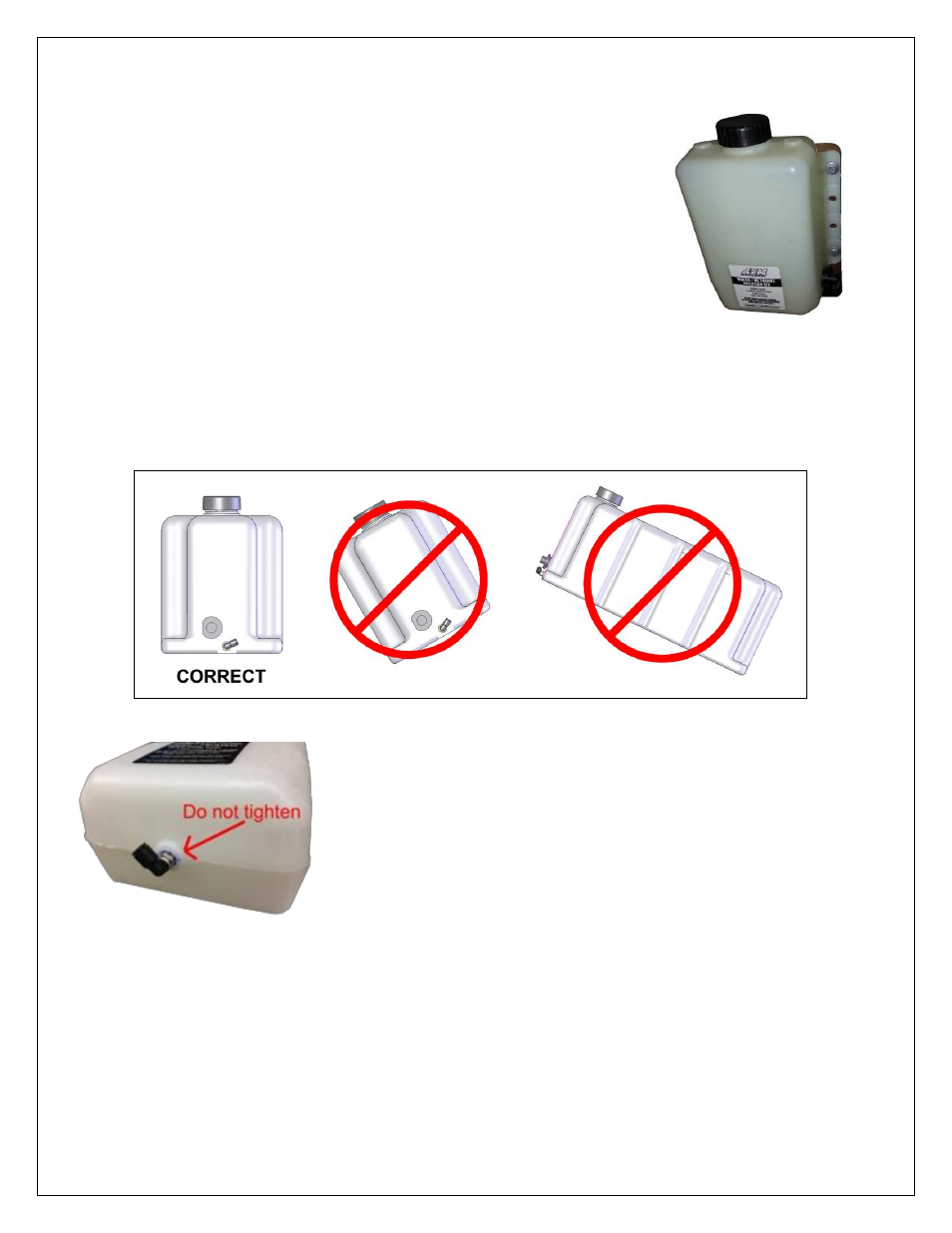

tank in an upright level position as shown below. Mark the four mounting points and drill with a
3/8” bit. Use the supplied 5/16-18 bolts, nuts, and large OD flat washers for mounting the tank
into your vehicle. IMPORTANT: Use the supplied large OD washer to spread the load on the
plastic mounting ears of the tank. DO NOT OVERTIGHTEN! Nuts should just be snug; they
are locking nuts and will not loosen. Over-tightening will crack the plastic and cause leaks and
void the warranty.
Note: All tanks are tested for leaks during assembly. A special
sealant adhesive is used to bond the plastic tank to the metal
fitting. DO NOT attempt to tighten the fitting any further!
The pump must be located in the same area as the tank and should be mounted at or below the
lowest fluid level height.
Pump/Tank Flush
After all wires are hooked up, add water to the tank and with the hose pointed into a container,
press and hold the
“TEST” push button on the controller module. The “TEST” button can be
used to test the system. The pump speed will gradually increase from zero to full speed over 3
seconds, and then remain full for another 3 seconds before stopping.
Repeat the “TEST” button
procedure until you are sure the system is free of any debris that may have been in the lines or
tank. Drain the water out of the tank and refer to the next section on installing the nozzle.
