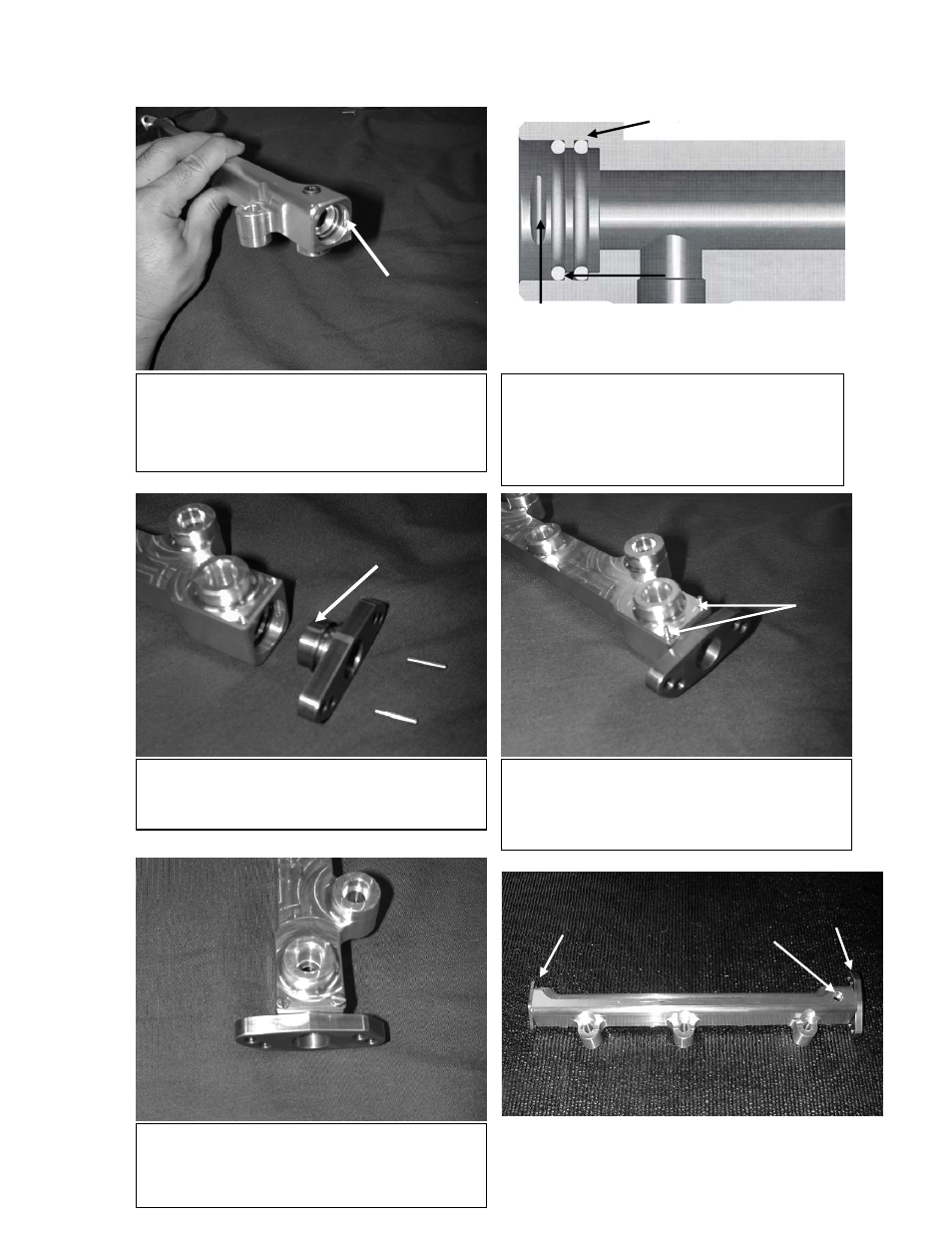

d) Insert another 1-3024 o-ring up against the
first shoulder. Make sure the o-ring is seated
evenly against the shoulder and is past the
slots for the dowel pins.
Make sure o-ring is
past these slots.
f) Gently insert the end adaptor into the fuel
rail. Make sure the o-rings stay in place and
are not torn. Insert two 1-2061 dowel pins into
the dowel pin holes.
Dowel
pins
g) Insert and tighten two 1-2062 screws into
the dowel pin holes. Repeat steps b-g for the
other side of the fuel rail.
Inlet
Adapter
Install
1/8” Pipe
Plug
Regulator
Adapter
f) Lightly lubricate the tip of the end adapter
and the o-rings in the end of the fuel rail. Clean
engine oil works well.
e) Refer to this cut-away view for proper o-
ring installation. Warning: The o-rings MUST
be properly seated as shown in this
diagram. Improper installation may
damage the o-rings and cause leakage.
First o-ring goes
in this groove
Second o-ring goes
against this shoulder
O-rings MUST be past
the dowel pin slot
Lubricate
