Placing the Feed Bowl Hopper
on the Assembly

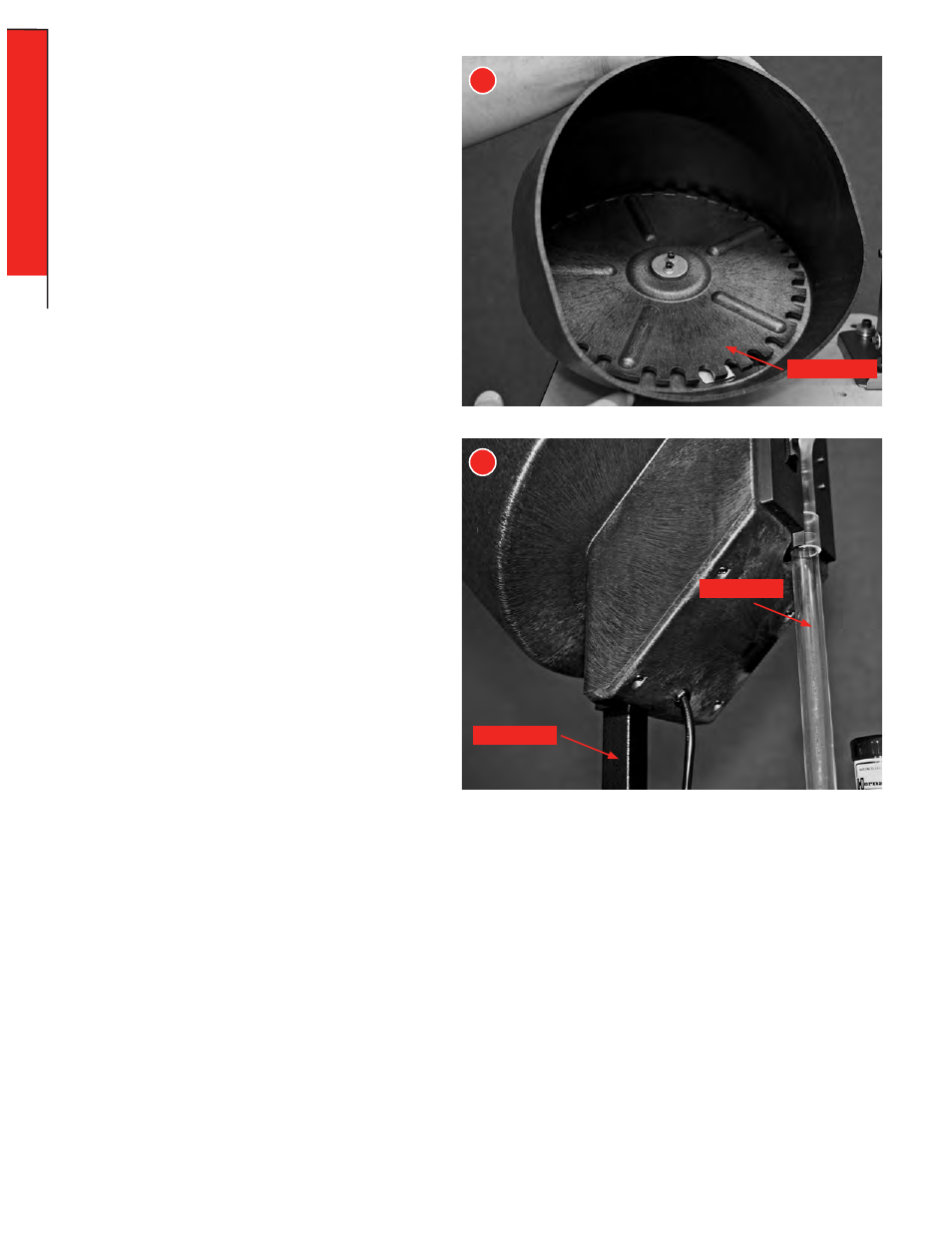

Select the Case Feed Plate for your application.
Refer to page 13.
To install the Case Feed Plate, place Feed Plate over the
motor shaft and rotate until pawls on motor shaft engage the
two slots on the bottom of the Feed Plate.
Slide Case Feed Hopper on to the Square Tubing and the
Feed Tube.
18
19
18
19
Square Tubing
Case Feed Plate
Feed Tube
Maintenance of the Lock-N-Load
®
AP Case Feeder
As with all equipment, proper and routine maintenance will provide smooth operation and a longer life for your reloading
press and Case Feeder. At the end of each reloading session, wipe off all spilled powder, any dirt, etc., from the press.
Check all moving parts for dirt or spilled powder and remove with a clean rag.
