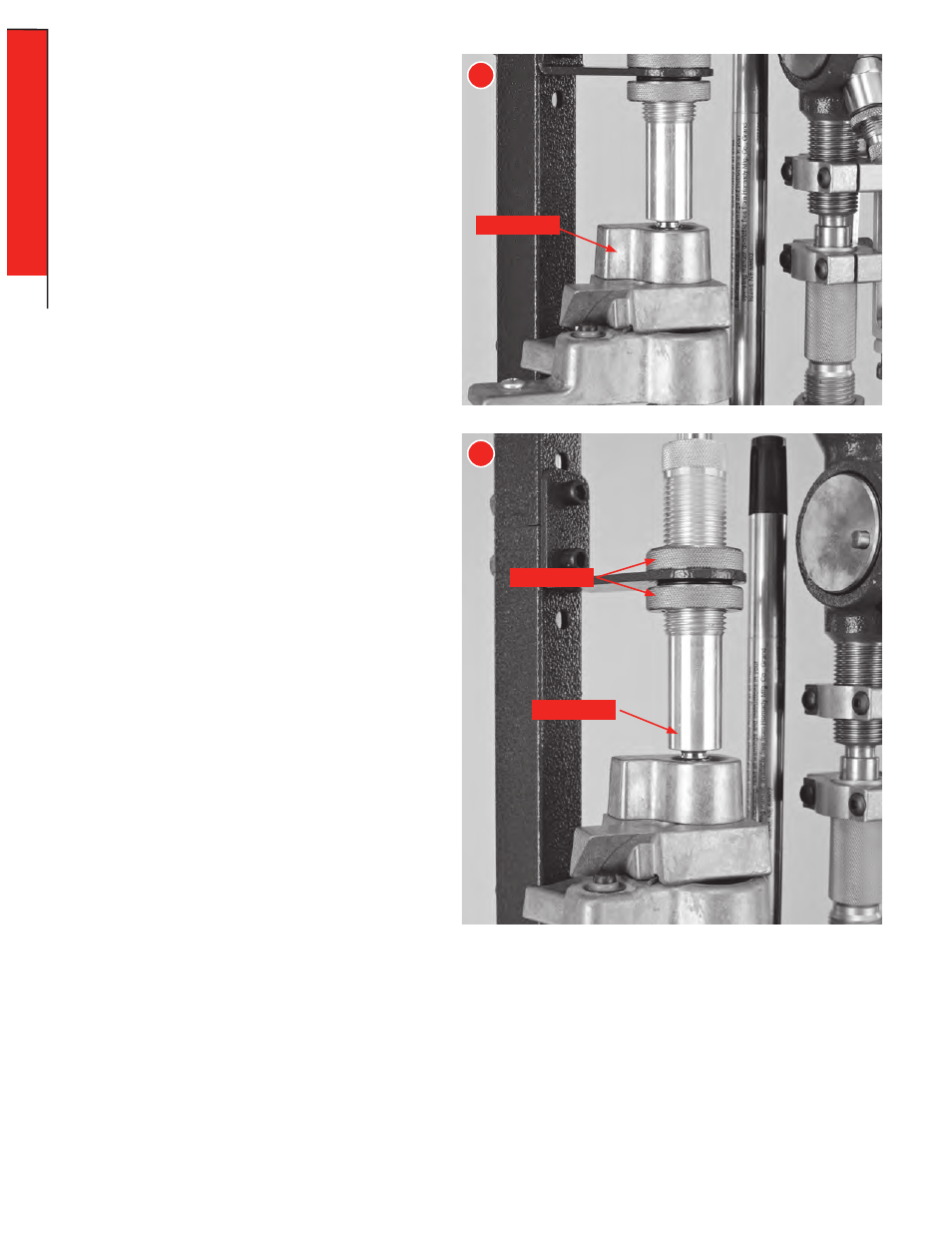

Pivot Adapter
Place the Pivot Adapter (18) on top of the pivot for small
rifle cases.
Refer to page 13 for proper Pivot Adapter Bushing (51 or 52).
15
16
15
16
Feed Tube End
Placing the Feed Tube End on
the Assembly.
Select the Feed Tube End for your application.
Refer to page 13.
Screw one Lock Ring (17) on the Feed Tube End (15 or 50).
Place it through the hole on the Feed Tube Mounting Bracket
(16). Adjust the height of the Feed Tube End to have
approximately 1/16" below the bottom of the tube to the
case mouth. With some cases such as the 357 Mag, it may
be necessary to adjust the Feed Tube End to where the case
mouth sits up inside of the Feed Tube End approximately.
These are both starting points, and for your particular case,
it may need to be adjusted a little differently. (Long skinny
cases, which are shorter than 1.50" long, will not work with
the Pivot Adapter.) They may need to be supported at the
mouth of the case by the Feed Tube Ends. This will allow the
case to feed down
the Drop Tubes without falling over and causing double or
triple feeds.
Screw on the other Lock Ring (17).
Lock Ring
- 10 -
ASSEMBL
Y
ASSEMBLY: CASE FEEDER
