Hornady AP with Case Feeder User Manual

Page 18

Step 12: Installing the V-Block onto the case slide.

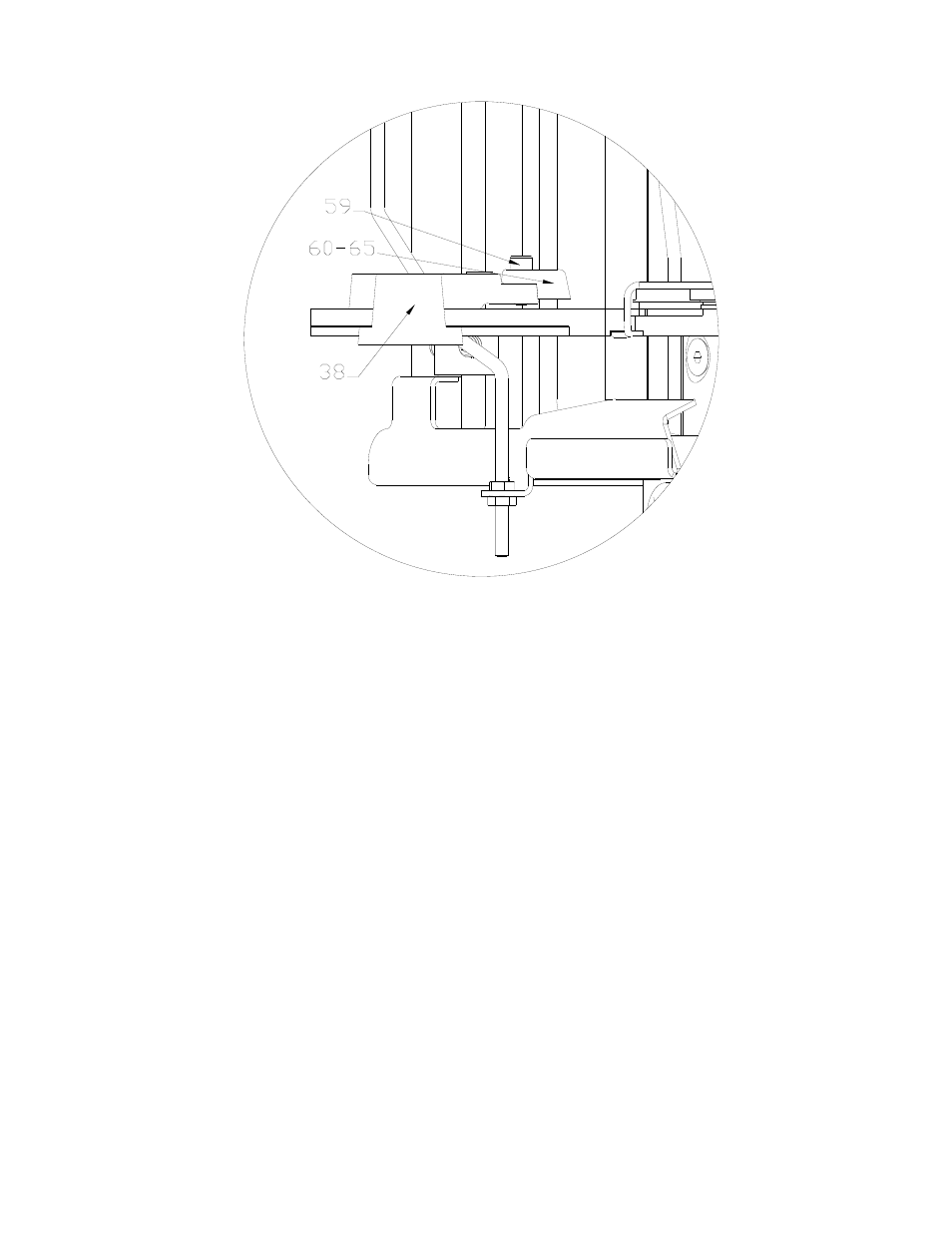

Figure 12: Inserting the V-block.

• With the ram at the bottom of the stroke (idle position), set the V-Block (item

#60-#65) onto the Case Slide (#38).

• Place the #10-24 X 1/2 Cap Screw (#59) through the hole of the V-Block and

screw it into the Case Slide

Before you tighten the Cap Screw, push the V-Block

back into the Case Slide and snug the Cap Screw with your fingers.
