Hornady AP with Case Feeder - Manual (Page 10)

10
Step 5: Assemble the square tubing and brackets to the frame of the AP Press.
(This step is a preliminary adjustment and will be completed later in the assembly.)
See Figure 5 for more details.

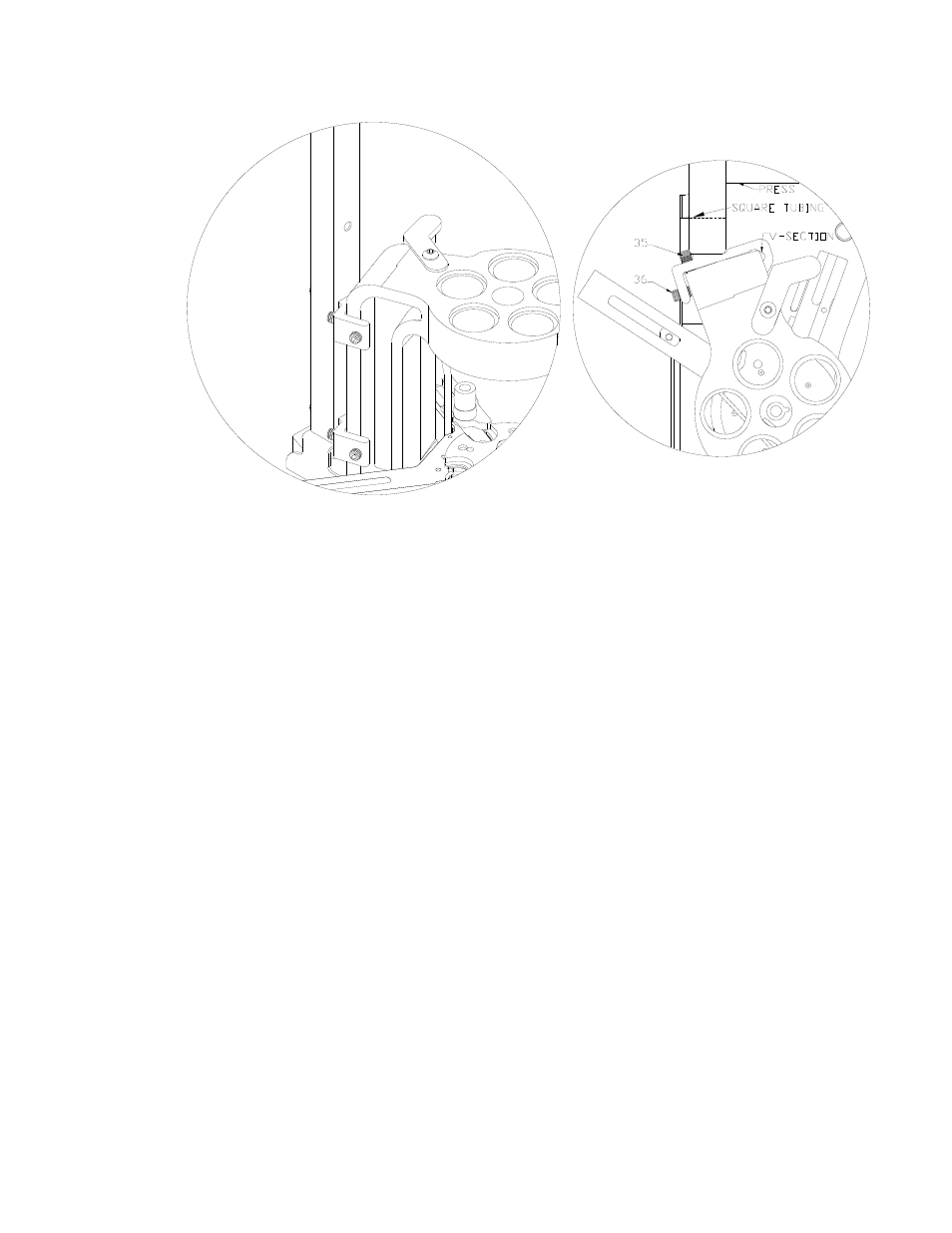

Figure 5: Square tubing brackets to the frame.
• While standing to the left side of the press, (your left),
hook the v-section of
bracket to the rib on the corner of the frame.
• Rotate the square tubing with the brackets counter clockwise (CCW) around
the corner of the press. Make sure that the tube rests on the tab of the
mounting bracket.
• Tighten the two (Cone Point) set screws (#36) until about half of the angled
point is past the corner of the rib on the press.
• Tighten the two (Cup Point) set screws (#35) until the square tubing assembly
is secure.
• Finish by tightening the screws (#47) on the Square tubing and bracket
assembly.
• The back of the square tubing should be parallel to the back edge of the frame.
If it is not, you will need to readjust it using the set screws.
• The assembly can be rotated clockwise by loosening the Cone Point screws
(#36) and tightening the Cup Points (#35), and visa versa to rotate it Counter
Clockwise. Complete the installation by tightening the Cup Point Set Screws
(#35).
