CARR 223412 Vehicle Mount Bracket - Rain Gutter Kit User Manual
Mounting instructions for raingutter bracket kit

Quality and Style that Endures
Follow the diagram and the written
directions carefully for a proper, safe
installation.
Should you encounter an unusual,
unforeseen problem, contact our
Technical Help Line
7:00 AM – 3:00 PM Pacific Time
(951) 719-1068
Visit our web-site at
www.CARR.com
Carr Pattern Co., Inc.

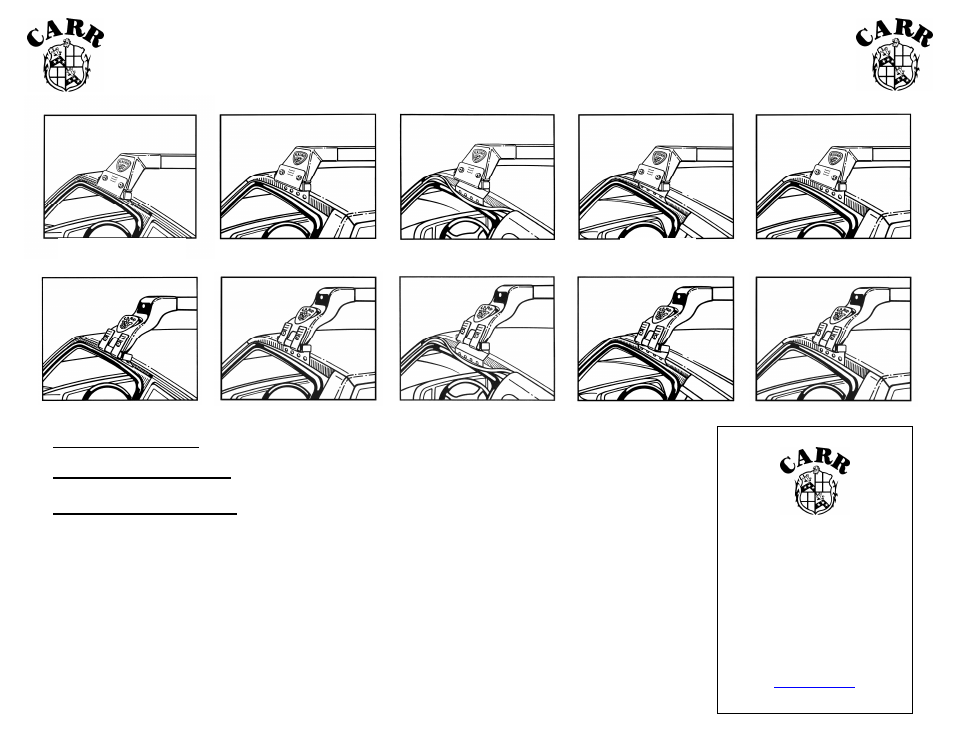

LOW and M-PROFILE LIGHT
BARS
DELUXE LIGHT
BARS
220542
220052
223412
220542
220052
220042/220062
222742
22
223412
2
MOUNTING INSTRUCTIONS:
1.
Open the vehicle door.
2.
Using diagrams provided place the stainless steel raingutter brackets underneath topside of door jam
in desired location. You may to pull back the weather stripping.
3.
Hold in place and mark four holes on vehicle using the stainless steel raingutter brackets as a guide.
4.
Using a 1/8" drill bit, drill through marked holes on vehicle.
5.
Before mounting the raingutter bracket, peel of the plastic (PVC) protective tape. Place the bracket
back into location and with the four sheet metal screws provided securely fasten the bracket to the
vehicle.
6.
Brackets now will be tightly secured to the vehicle. (Refer to the Light Bar instruction guide for
installation of your Light Bar)
7.
Repeat the same steps for the raingutter bracket on the other side.
MOUNTING INSTRUCTIONS FOR RAINGUTTER BRACKET KIT
Part No’s: 220042 / 220052 / 220062 / 220542 / 222742 / 223412
For Deluxe, Low and M-Profile Light Bars
MATERIALS NEEDED: Phillips screw driver, drill motor,1/8” drill bit.
MATERIALS FURNISHED: Two Stainless Steel Raingutter Brackets, eight sheet metal screws and
instruction page.
220042/220062
222742
