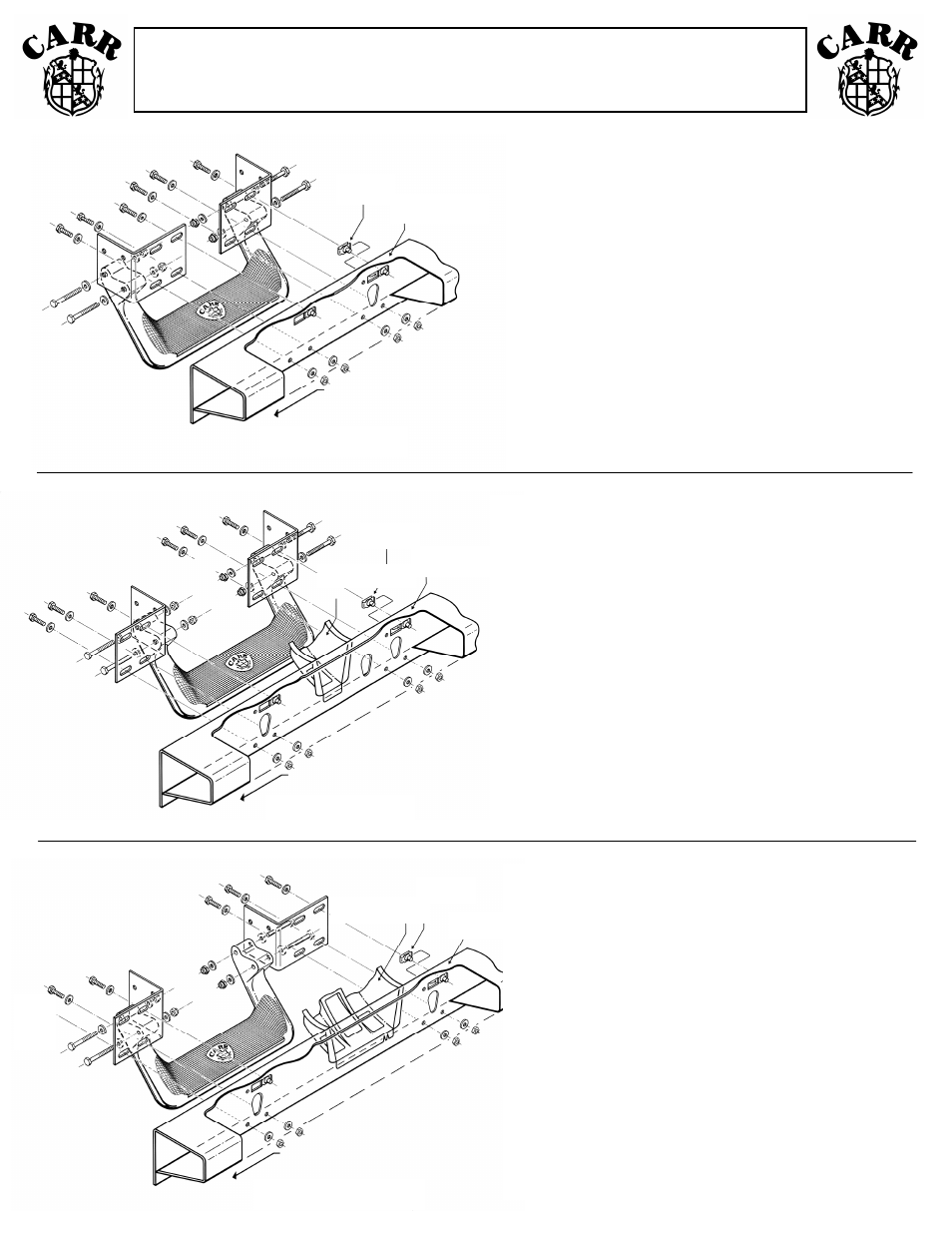

DIAGRAM FOR:

Rear door EXTENDED CAB.

Drivers side shown here

1. Place the steel brackets on the step casting the

same way as shown on the diagram.

2. Securely tighten the steel brackets to the step

casting with the ¼” hardware provided.

3. Install the clips as shown here by pushing the clips to

the side. (A larger view of the clips installation is
available on the reverse side of this sheet).

4. Take the 5/16” hardware that is provided and bolt the

step and bracket assembly to the truck under the
rear door using the holes in the truck as indicated on
the diagram.

5. Repeat the same procedure for the passenger side

of your vehicle only reverse how the steel brackets
bolt to the step casting.

Super Hoop Multi-Mount Step Installation Instructions

Part No’s:125001, 125002 & 125004

DIAGRAM FOR:

Front door ALL CABS.

Drivers side shown here

1. Place the steel brackets on the step casting the

same way as shown on the diagram.

2. Securely tighten the steel brackets to the step

casting with the ¼” hardware provided.

3. Install the clips as shown here by pushing the clips

to the side. (A larger view of the clips installation is
available on the reverse side of this sheet).

4. Take the 5/16” hardware that is provided and bolt the

step and bracket assembly to the truck under the
front door using the holes in the truck as indicated on
the diagram.

5. Repeat the same procedure for the passenger side

of your vehicle.

DIAGRAM FOR:

Rear door CREW CAB.

Drivers side shown here

1. Place the steel brackets on the step casting the

same way as shown on the diagram.

2. Securely tighten the steel brackets to the step

casting with the ¼” hardware provided.

3. Install the clips as shown here by pushing the clips

to the side.. (A larger view of the clips installation is
available on the reverse side of this sheet).

4. Take the 5/16” hardware that is provided and bolt

the step and bracket assembly to the truck under
the rear door using the holes in the truck as
indicated on the diagram.

5. Repeat the same procedure for the passenger side

of your vehicle only reverse how the steel brackets
bolt to the step casting.

Front of the vehicle

Clip

Truck Brace

Body Metal
