9
AirDog
®
FP-100 & FP-150 Ford PowerStroke 2003-2007 6.0L
Section 4 AirDog ® & Mounting Brackets
Installing the AirDog
®
& Mounting Brackets on the
Truck’s Frame!

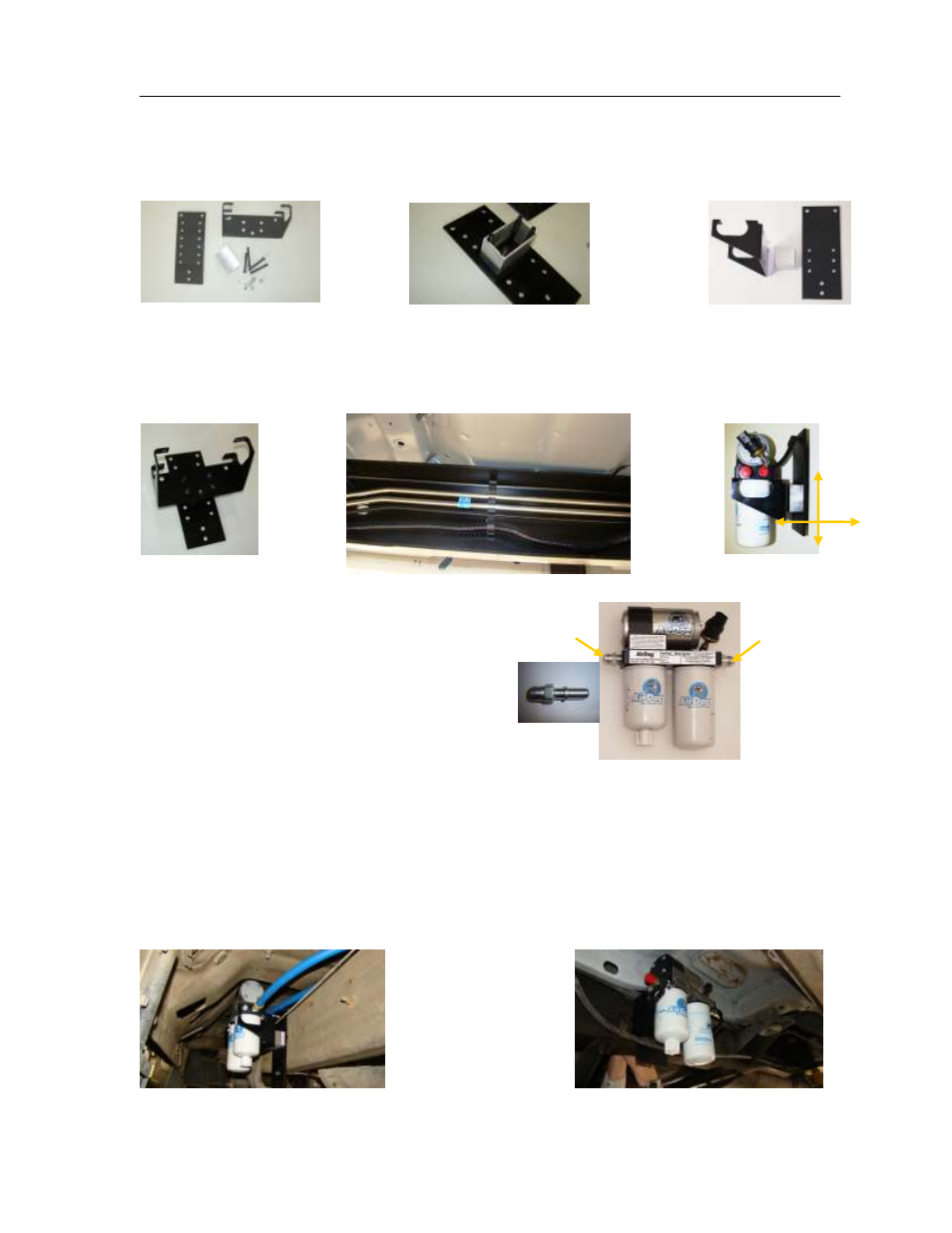

Figure 2 Figure 3 Figure 4
4-1. Assemble the AirDog® mounting bracket to the frame bracket. Use the spacer block
to adjust the AirDog® to clear lines and wiring harnesses on the frame. Also adjust
the assembly up or down on the frame bracket as needed for clearance.
Figure 5 Figure 6 Figure 7
FUEL IN ENGINE
4.2 Install a 1/2” Male SAE J2004 Quick
Connect x 3/8” (08J2044-3/8NPTF) into
the
“ENGINE” and “FUEL IN” ports in
the AirDog®.
Figure 8
WARNING: The NPT fitting threads must be lubricated with oil or anti-seize compound
before installation to prevent galling!
NOTE: The AirDog® can be mounted on either the outside of the frame or the inside, as
space or personal choice dictates.
Outside the Frame Inside the Frame
Figure 9 Figure 10
