PureFlow AirDog DF-200 - Dodge Cummins 2005-2013 - Manual (Page 18)

18
PureFlow AirDog
AirDog
®
II DF-200 Dodge 2005 - 2011
Section 5-D Fuel Return Line
Fuel Return Line from the AirDog
®
to the Tank
Installing the fuel 'Return to Tank' assembly in Filler Tube

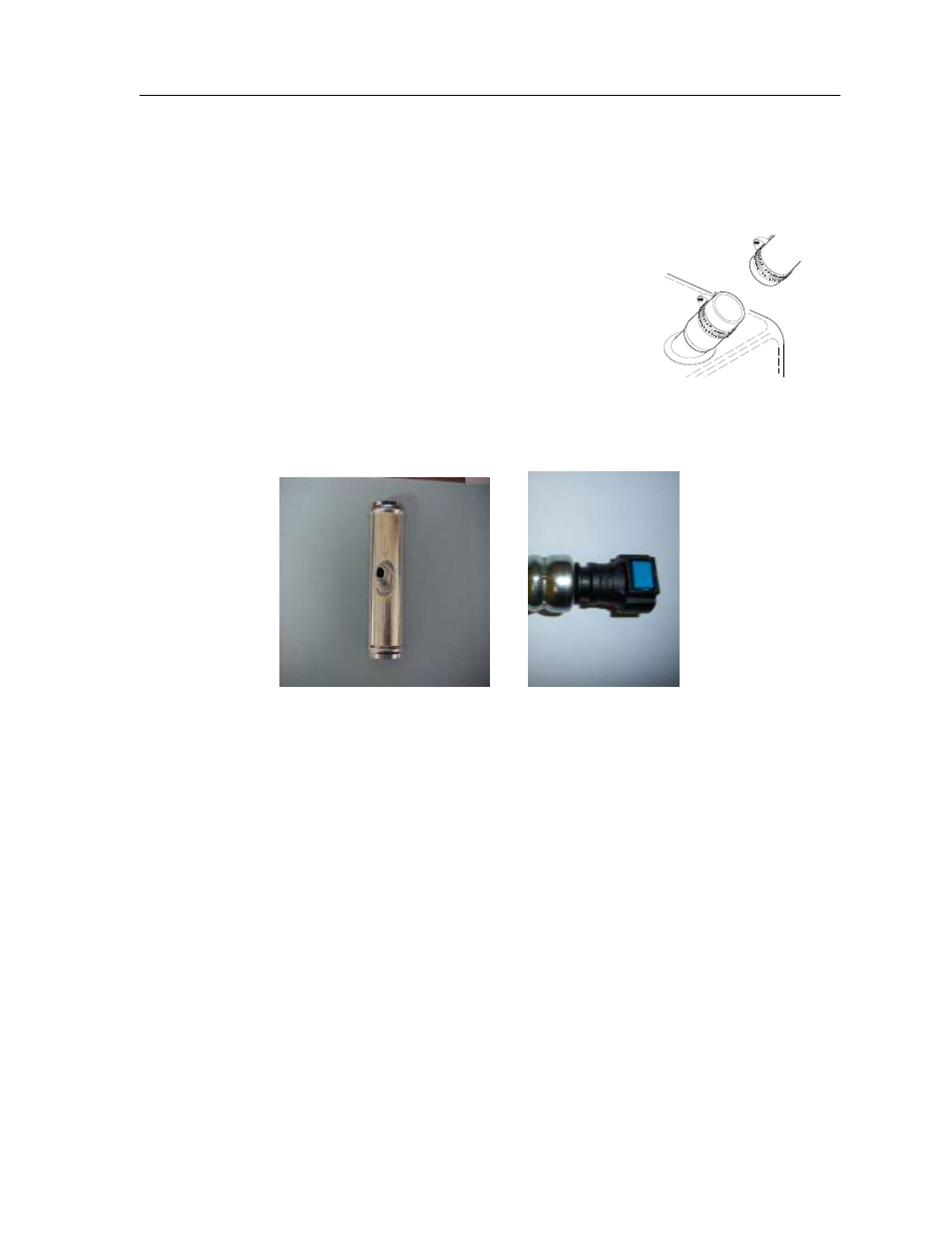

Figure 37
5D-1. Cut filler tube as illustrated, removing ½ inches. Loose assemble clamps on each end
of filler tube.
Figure 38 Figure 39
5D-2. Insert “Return Fuel Filler Tube” assembly in filler tube. INSTALL THE FILLER
TUBE WITH ARROWS POINTING TOWARD THE TANK!! SEE FIG 37.
Properly tighten clamps.
5D-3. Insert the female quick connect end (Figure 39) of the “Return Hose Assembly” into
the previously installed male fitting for the tank port (step 4-4). The fitting will
“click” when properly installed.
5D-4 Attach the other end of the “Return Hose Assembly” onto the male end form of the
“Return Fuel Filler Tube” installed in step 5C-2. A” click” will be heard when the
fitting is properly connected.
5D-5 Any excess fuel hose can be addressed by routing the hose in a fashion to take up the
extra length, or a section of the hose can be removed. Push lock splices have been
included if you choose to remove the excess hose.
Fuel Tank
Hose Clamp
Filler
Tube
Fuel
Return
Fitting
