PureFlow AirDog
AirDog
®
II DF-200 Dodge 2005 - 2011
Section 5-C High Flow Suction Tube
INSTALLING THE HIGH FLOW SUCTION TUBE, C ont’d
NOTE: The fuel tank used for the pictures is an example only and may not be exactly the
same as your tank.
IMPORTANT: Select a location for the suction tube that has adequate clearance
below the bed. Also consider that under hard acceleration, fuel will migrate
toward the back of the fuel tank.

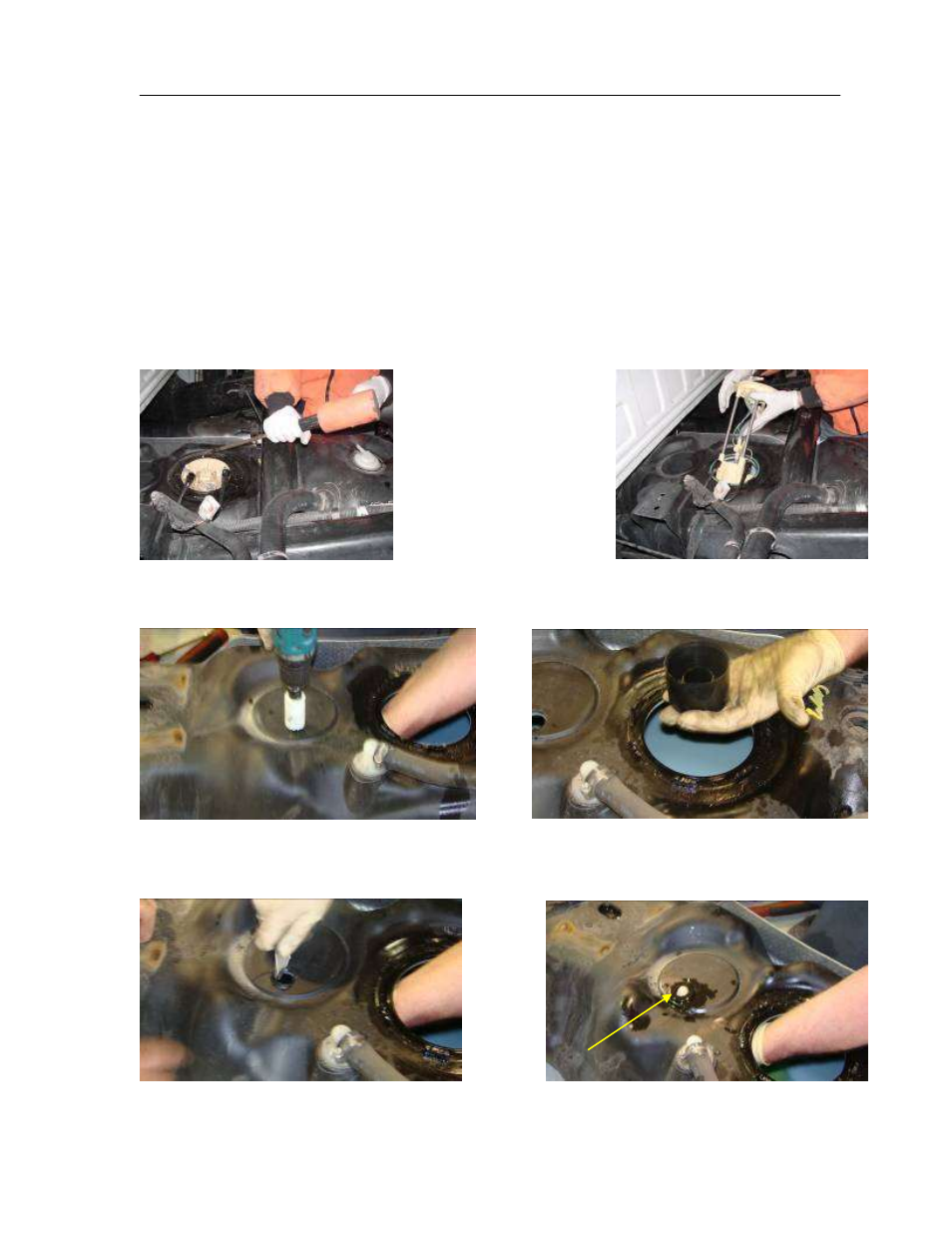

5C-1. Remove the collection basket.
Figure 26
Figure 27
5C-2. Drill a 1-1/8” hole at the selected location in the fuel tank for the suction tube. Hold
a container below the drill point to catch debris.
Figure 28 Figure 29
5C-3. Remove all burrs from the edge of the hole.
Figure 30 Figure 31
5C-4. Install the grommet in the new suction tube access hole.
