PureFlow AirDog
AirDog
®
II DF-200 Dodge 2005 - 2011
Section 5-C High Flow Suction Tube
INSTALLING THE HIGH FLOW SUCTION TUBE, C ont’d

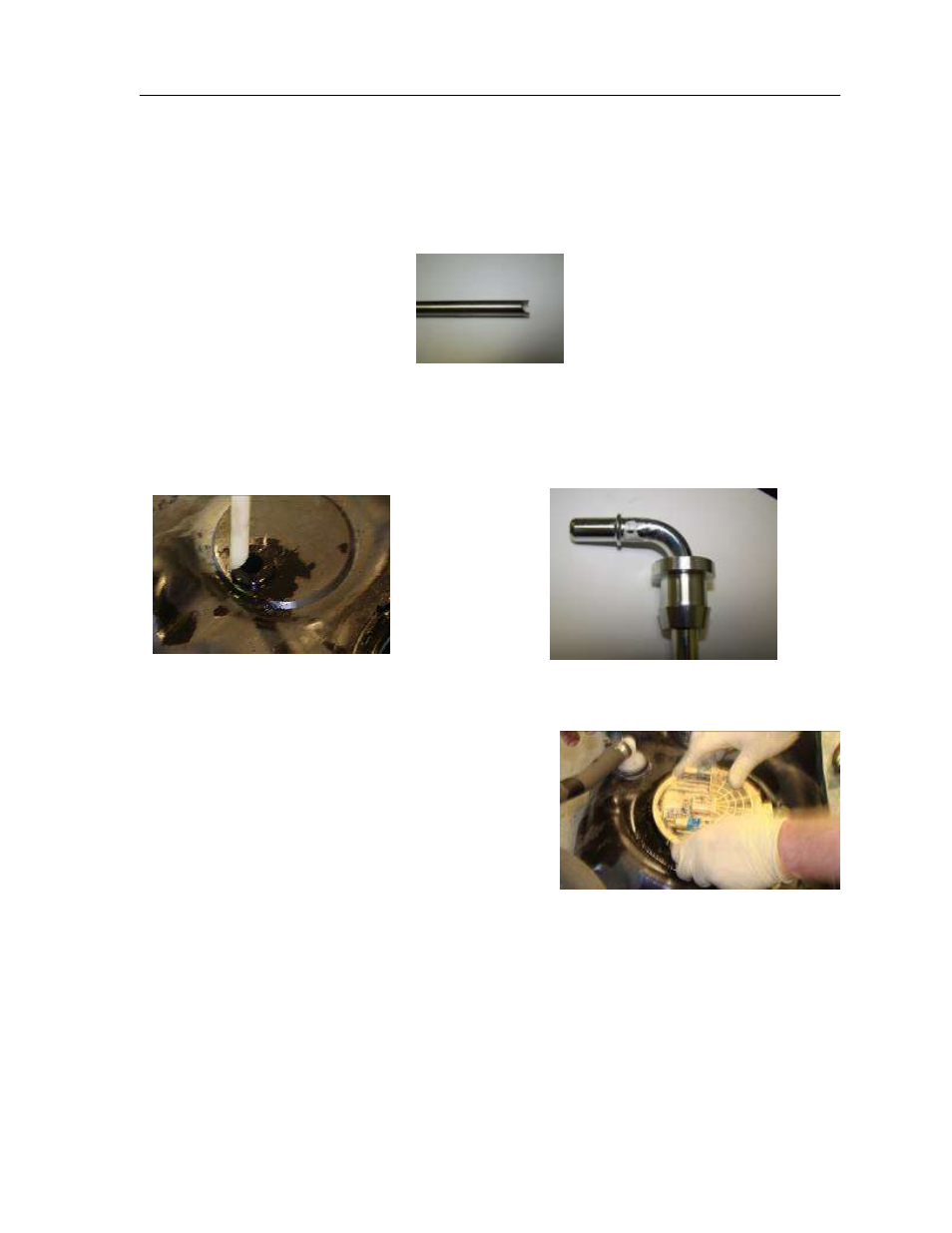

5C-5. Measure and cut the suction tube to a length that will allow approximately 1/8”
clearance off the bottom of the tank. It is suggested to form the end of the tube similar
to Figure 32.
Figure 32
5C-6. Lubricate the bulkhead fitting with motor oil. Pressing firmly, insert the suction tube
assembly into the grommet. Be sure the bulkhead fitting is completely seated in the
grommet.
Figure 33 Figure 34
5C-7. Re-install the Collection basket.
Re-install the factory return line to the proper
port of the Collection basket before the tank
is fully re-installed
Figure 35
5C-8. Connect the end of the “Suction Hose Assembly” to the bulk head fitting while it is
easily accessible. A “click” will be heard when it is properly installed.
5C-9 Any excess fuel hose can be addressed by routing the hose in a fashion to take up
the extra length, or a section of the hose can be removed. Push lock splices have
been included if you choose to remove the excess hose
