PRESSURE
ADJUSTMENT
PureFlow AirDog
AirDog
®
II Dodge 1998 ½ - 2004
Section 10 Pressure Regulator
AirDog
®
II DF-100, DF-165 & DF-200 with Adjustable Pressure Regulator!
The AirDog
®
II rises to a new level of excellence with an Adjustable Regulator
machined from stainless steel with a double O-ring seal system and a soft seat
piston
.

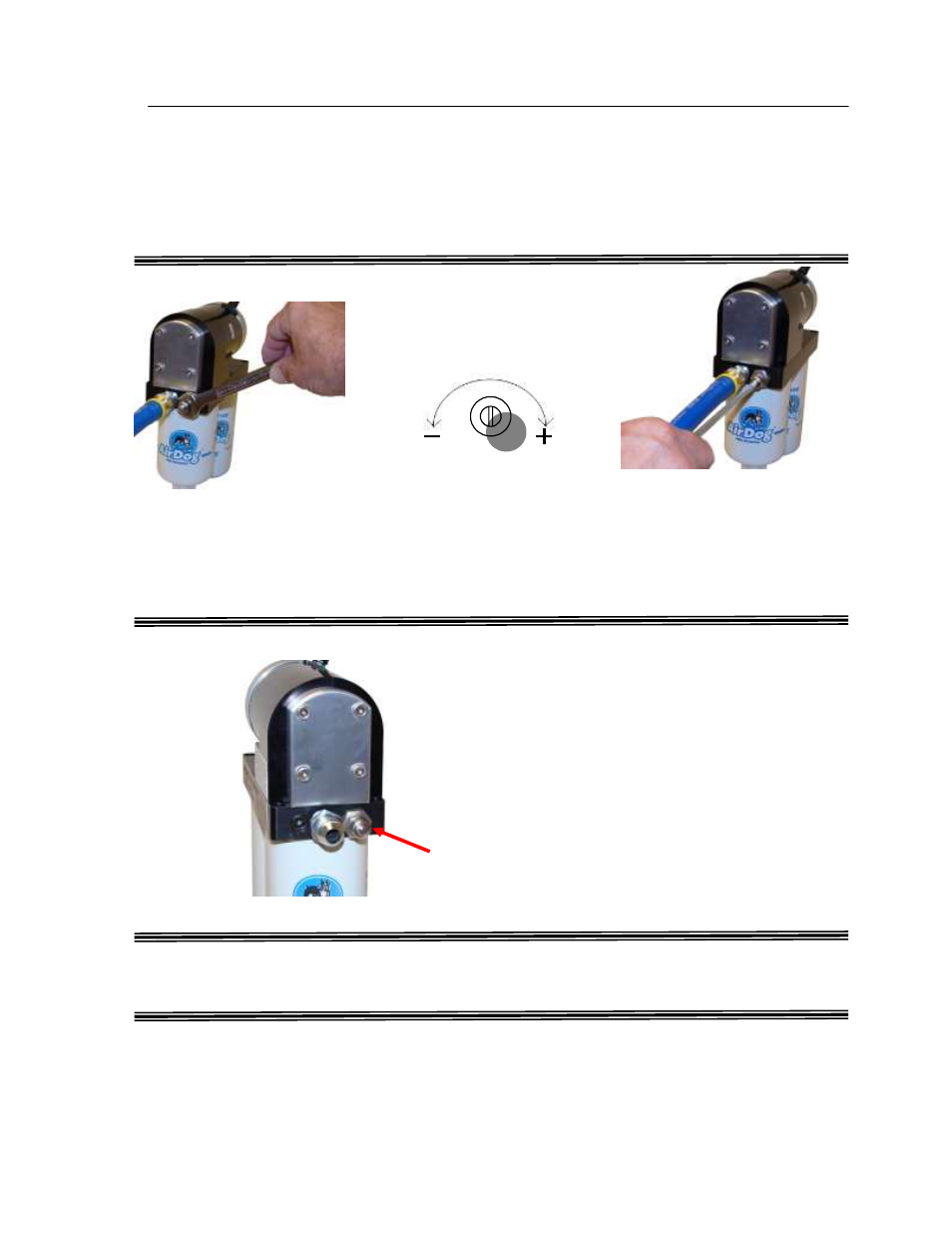

VP-44 & CP-3 Pressure Adjustment
Loosen the Jam Nut
Use a Screwdriver to Adjust
Re-Torque After Adjusting the Pressure Regulator
USE A PRESSURE GAUGE WHEN ADJUSTING THE DF-200!
Turn the adjustor screw counter clockwise to reduce the output pressure or clock wise to increase
the pressure. Be sure to re-torque the Jam Nut after adjusting the regulator.
Changing the Regulator Spring
Step 1. Remove the regulator by turning the “Base
Nut/Adjustor Body” counter clockwise.
Step 2. After removing the regulator assembly,
remove the spring and the conical plunger.
Verify the o-ring is intact.
Step 3. Reset the conical plunger and place the
spring inside the conical plunger.
Step 4. Replace the assembly in the base. Tighten
the Base Nut to proper torque.
Stainless Steel components with a Double O-ring Seal System and Soft Seat Piston.
New o-rings are included in the Customer Service O-ring Kit if replacements are required.
