PureFlow AirDog
AirDog
®
II DF-200 Dodge 1998 ½ - 2004
Section 5-C High Flow Suction Tube
INSTALLING THE HIGH FLOW SUCTION TUBE, C ont’d
5C-5. Measure and cut the suction tube to a length that will allow approximately 1/8” clearance
off the bottom of the tank. It is suggested to form the end of the tube similar to Figure 30.

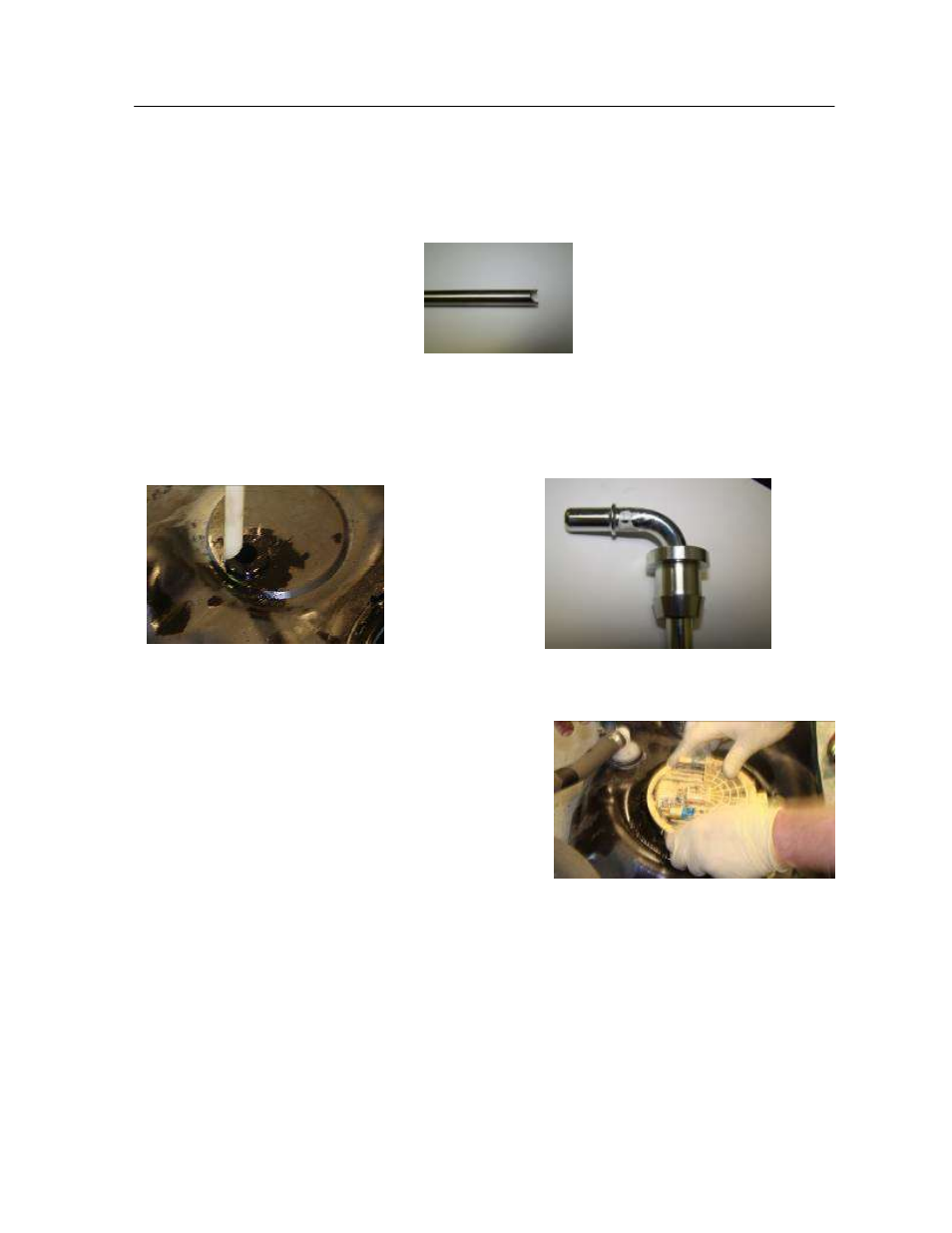

Figure 30
5C-6. Lubricate the bulkhead fitting with motor oil. Pressing firmly, insert the suction tube
assembly into the grommet. Be sure the bulkhead fitting is completely seated in the
grommet.
Figure 31 Figure 32
5C-7. Re-install the Collection basket.
Re-install the factory return line to the proper
port of the Collection basket before the tank
is fully re-installed
Figure 33
5C-8. Connect the end of the “Suction Hose Assembly” to the bulk head fitting while it is easily
accessible. A “click” will be heard when it is properly installed.
5C-9 Any excess fuel hose can be addressed by routing the hose in a fashion to take up
the extra length, or a section of the hose can be removed. Push lock splices have
been included if you choose to remove the excess hose
