18
PureFlow AirDog
AirDog
®
II Dodge 1998 ½ - 2004
Section 6 Electrical Harness
The AirDog
®
II is equipped with a relay controlled wiring harness featuring
water resistant connectors.
When properly installed, the AirDog
®
II is controlled by the engine’s ECM.

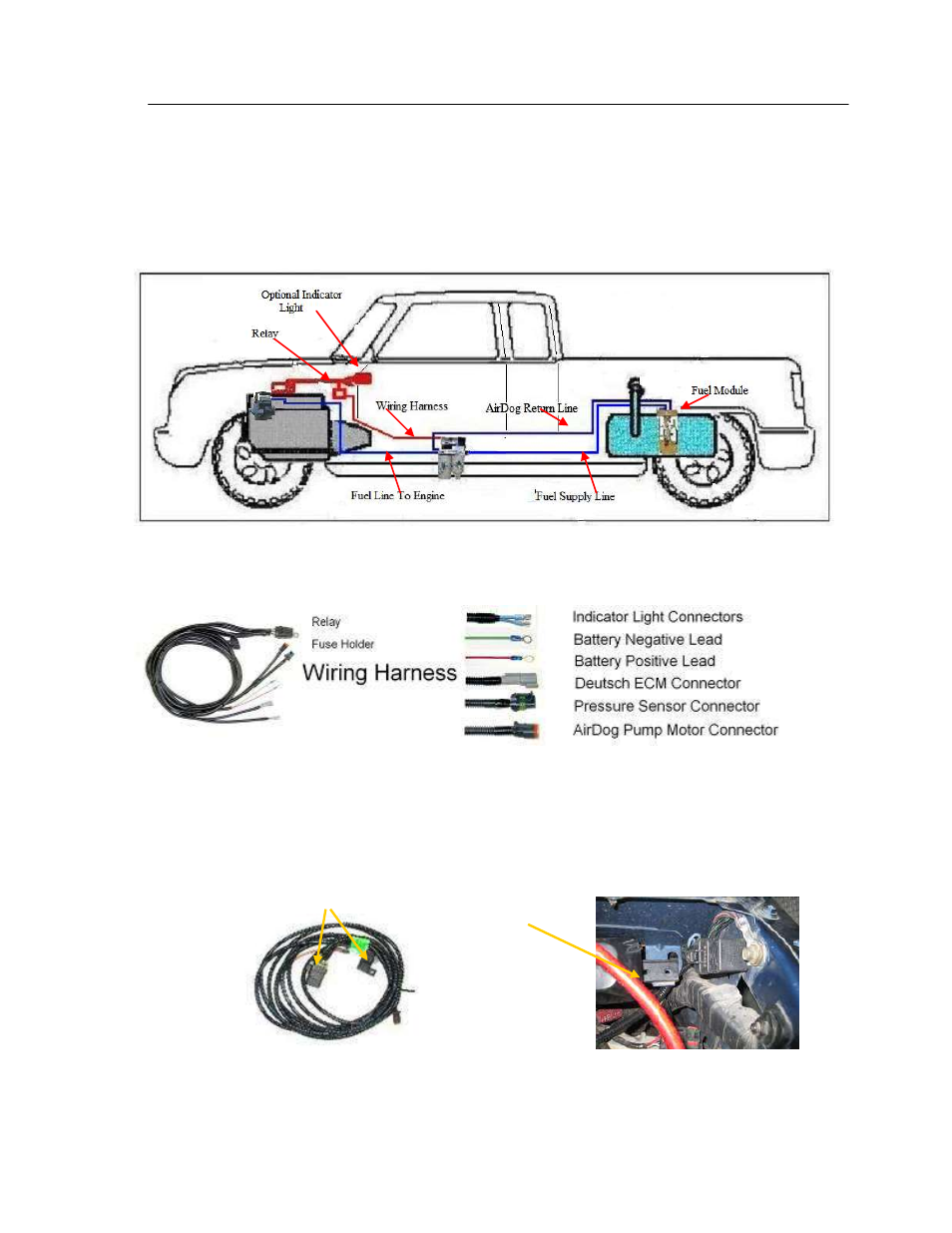

WIRING DIAGRAM
Figure 37
The AirDog
®
II is activated by the ECM through a relay controlled wiring harness connecting
directly to the original ECM Deutsch pump connector.
Figure 38
CAUTION: If the OPTIONAL Low Pressure Indicator Light is not used, be sure to insulate the
two (2) #10 Indicator Light connectors to prevent accidental contact.
Securing the Relay and Fuse Holder to the Vehicle
6-1. Secure the relay and fuse holder to the vehicle.
Figure 38 Figure 39
