PureFlow AirDog
AirDog
®
II Dodge 1998.5 - 2004
Section 5-A Fuel Lines
5A-6. It is advised to remove the factory supply lines between the tank and the filter canister.
Also remove the factory supply line between the filter canister and the injection pump.
Then plug the ports on the filter canister. This will prevent fuel spillage.

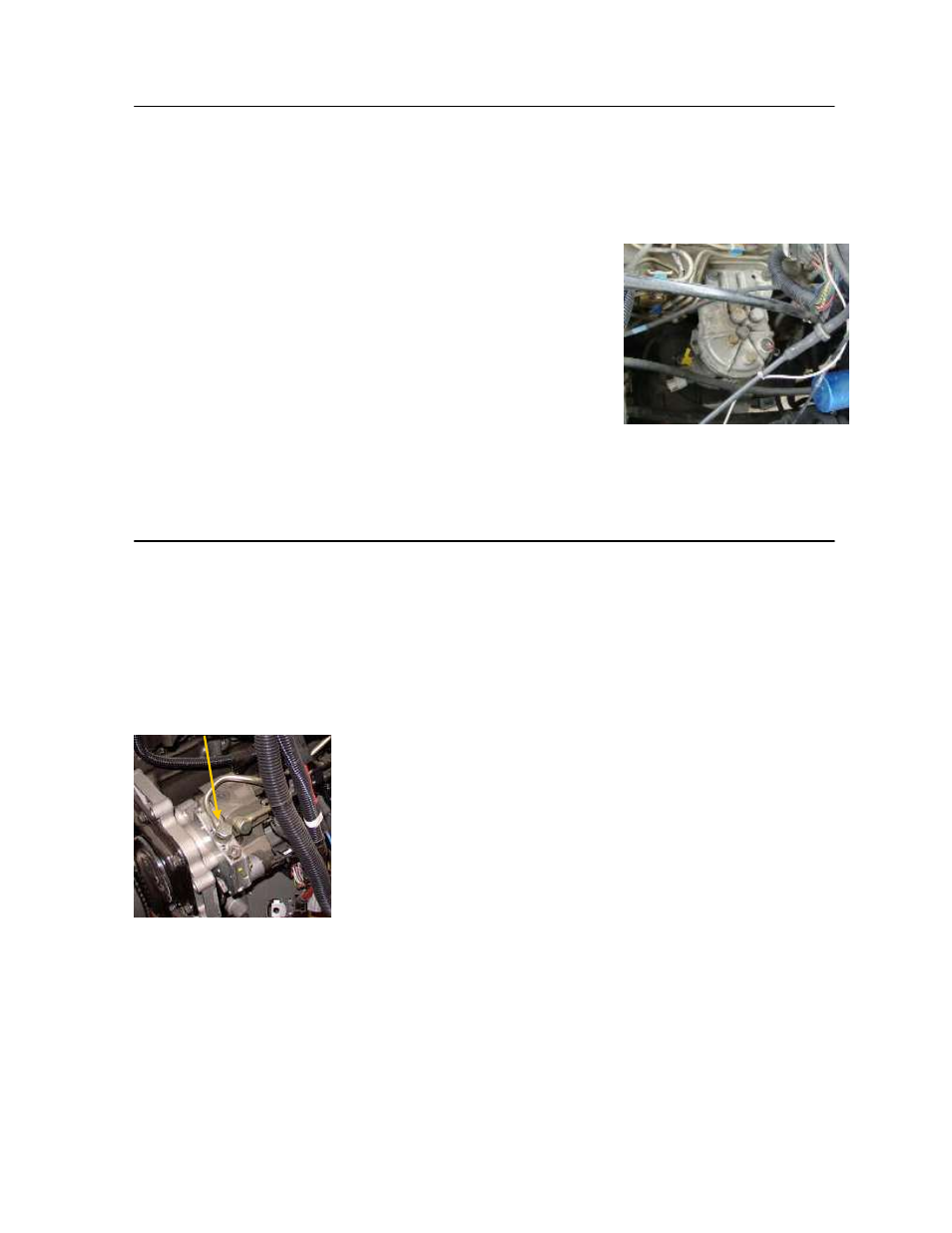

Figure 17
NOTE: Be sure to keep the ORIGINAL ENGINE RETURN LINE connected as it is from the
factory! In many cases the return runs thru the flange of the filter canister.
This section is for the 2003 – 2004 Dodge
Fuel Supply Line from the AirDog
®
to the CP3
The AirDog II fuel filter has a 2 micron media. When installing the AirDog II fuel system it
is recommended to bypass the factory filter canister.
5B-1. Remove the “banjo bolt” and the original factory fuel supply line at the fuel inlet port
of the CP-3 high pressure pump.
Figure 18
5B-2. From this point, installation of the pressure hose assembly is the same as described in
Section 5A.
