PureFlow AirDog

AirDog

II DF-200 Dodge 1998 ½ - 2004

Section 5-C High Flow Suction Tube

INSTALLING THE HIGH FLOW SUCTION TUBE, C

ont’d

NOTE: The fuel tank used for the pictures is an example only and may not be exactly the

same as your tank.

IMPORTANT NOTE: SELECT A LOCATION FOR THE SUCTION TUBE THAT HAS
ADEQUATE CLEARANCE BELOW THE BED. ALSO CONSIDER THAT UNDER
HARD ACCELERATION, FUEL WILL MIGRATE TOWARD THE BACK OF THE
FUEL TANK.

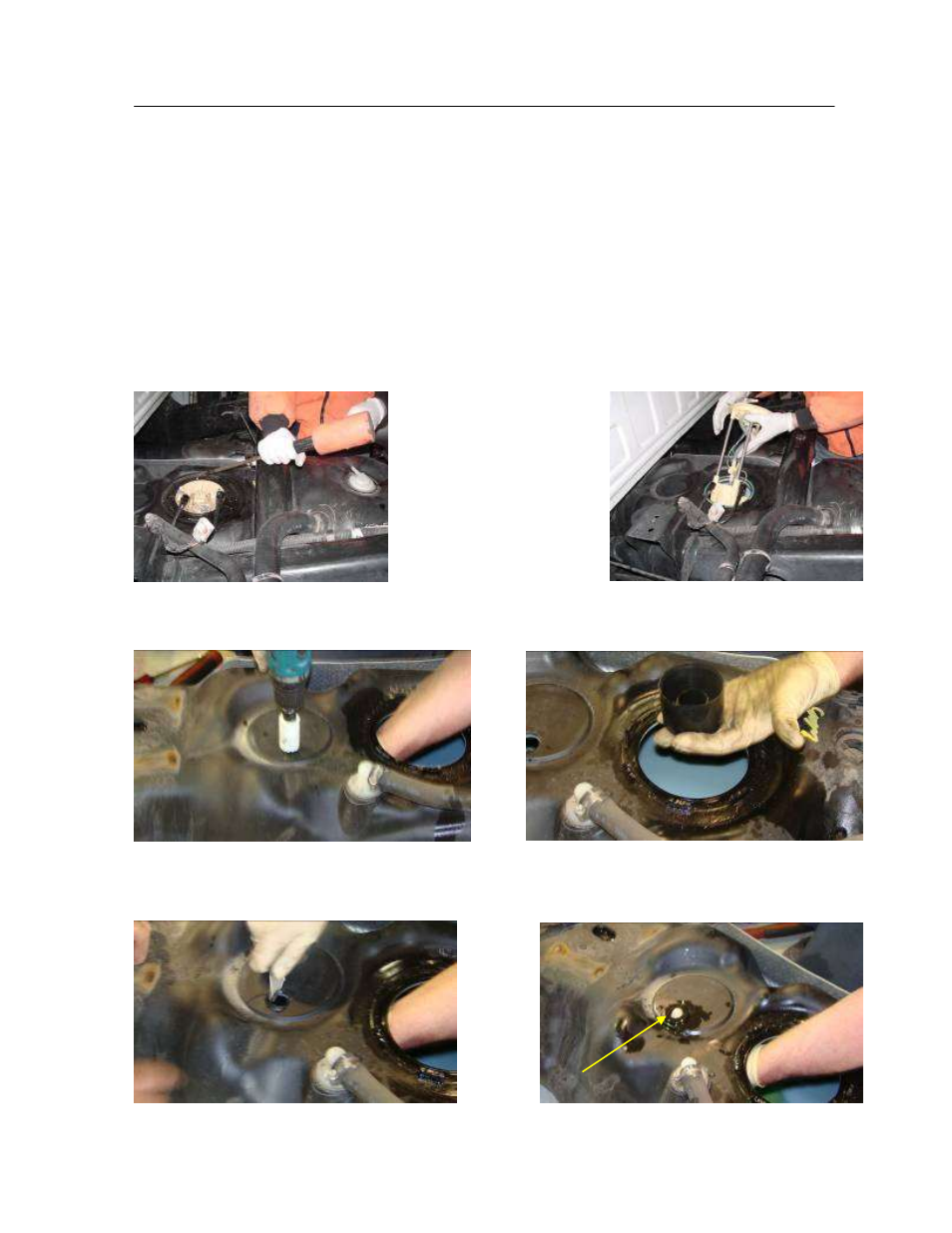

5C-1. Remove the collection basket.

Figure 24

Figure 25

5C-2. Drill a 1-1/8” hole at the selected location in the fuel tank for the suction tube. Hold

a container below the drill point to catch debris.

Figure 26

Figure 27

5C-3. Remove all burrs from the edge of the hole.

Figure 28

Figure 29

5C-4. Install the grommet in the new suction tube access hole.
