9
PureFlow AirDog
AirDog®II Dodge Cummins 1994 - 1998

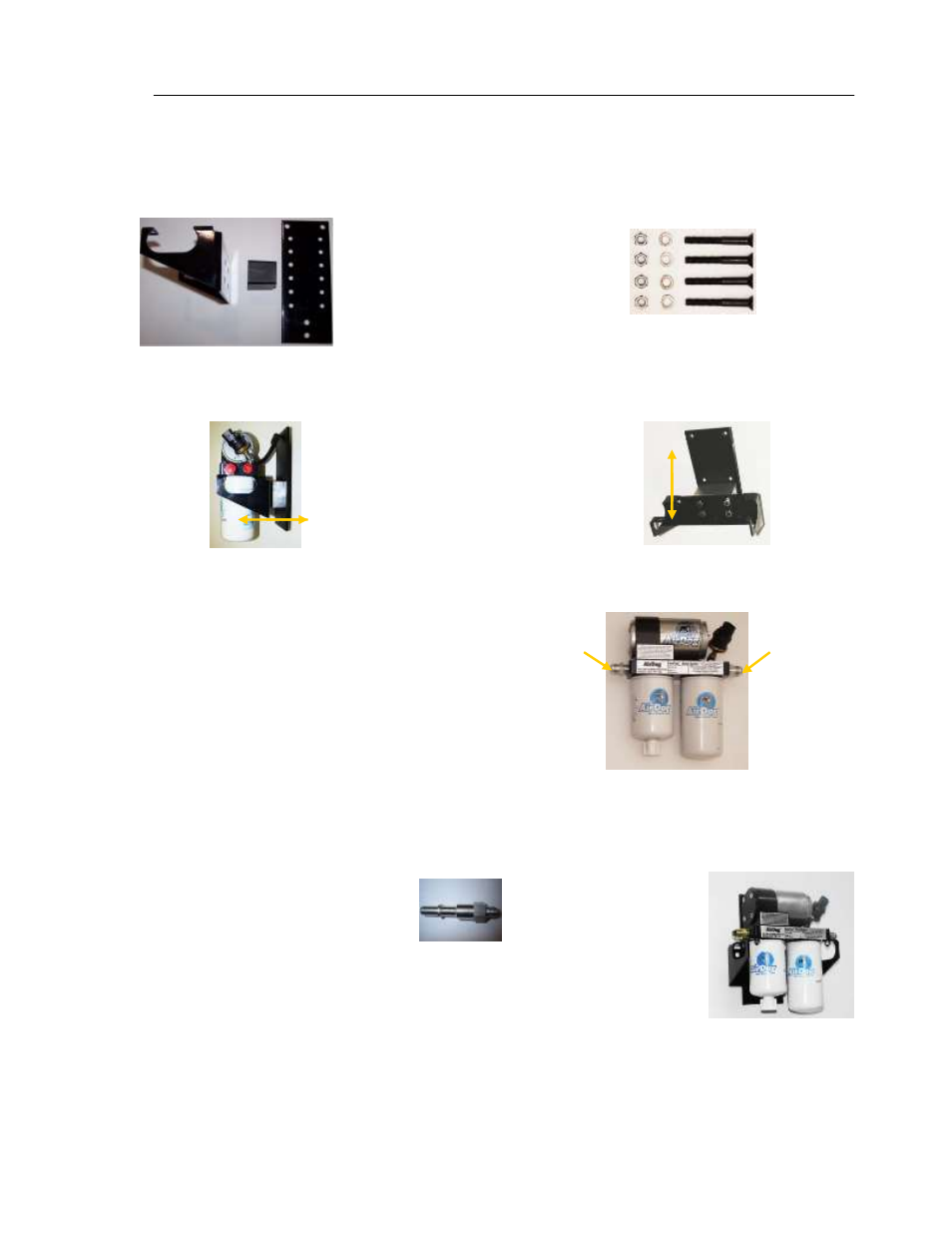

Section 4 AirDog ® II & Mounting Brackets
Installing the AirDog II
®
& Mounting Brackets on the
Truck’s Frame!
Figure 2 Figure 3
4-1.
Assemble the AirDog
®
mounting bracket to the frame bracket.
Figure 4 Figure 5
4-2. Use the spacer block to clear lines and wiring harnesses on the frame.
Adjust the assembly up or down on the frame bracket as necessary for clearance.
FUEL IN ENGINE
4-3. Install a 1/2” male J2004 quick connect x 3/8”
NPTF (08J2044-3/8NPTF) into the “ENGINE” and
“FUEL IN” ports in the AirDog
®
II.
Figure 6
4-4. Install the 3/8” male J2004 quick connect x 1/8” NPTF fitting (06J2044-1/8NPTF)
into the “TANK” port of the AirDog
®
II. This is the smaller port next to the port
marked “ENGINE”.
Figure 7
WARNING: The NPT fitting threads must be lubricated with oil or anti-
seize compound before installation to prevent galling!
4-5.
Attach the AirDog® to the frame bracket assembly. Figure 8
