Section 5 F Fuel Return
Fuel Return to Tank for AirDog
® II DF-165
5F-1
Insert the female quick connect end (Figure 33) of the “Return Hose Assembly” into
the previously installed male fitting for the tank port (step 4-4). The fitting will
“click” when properly installed.

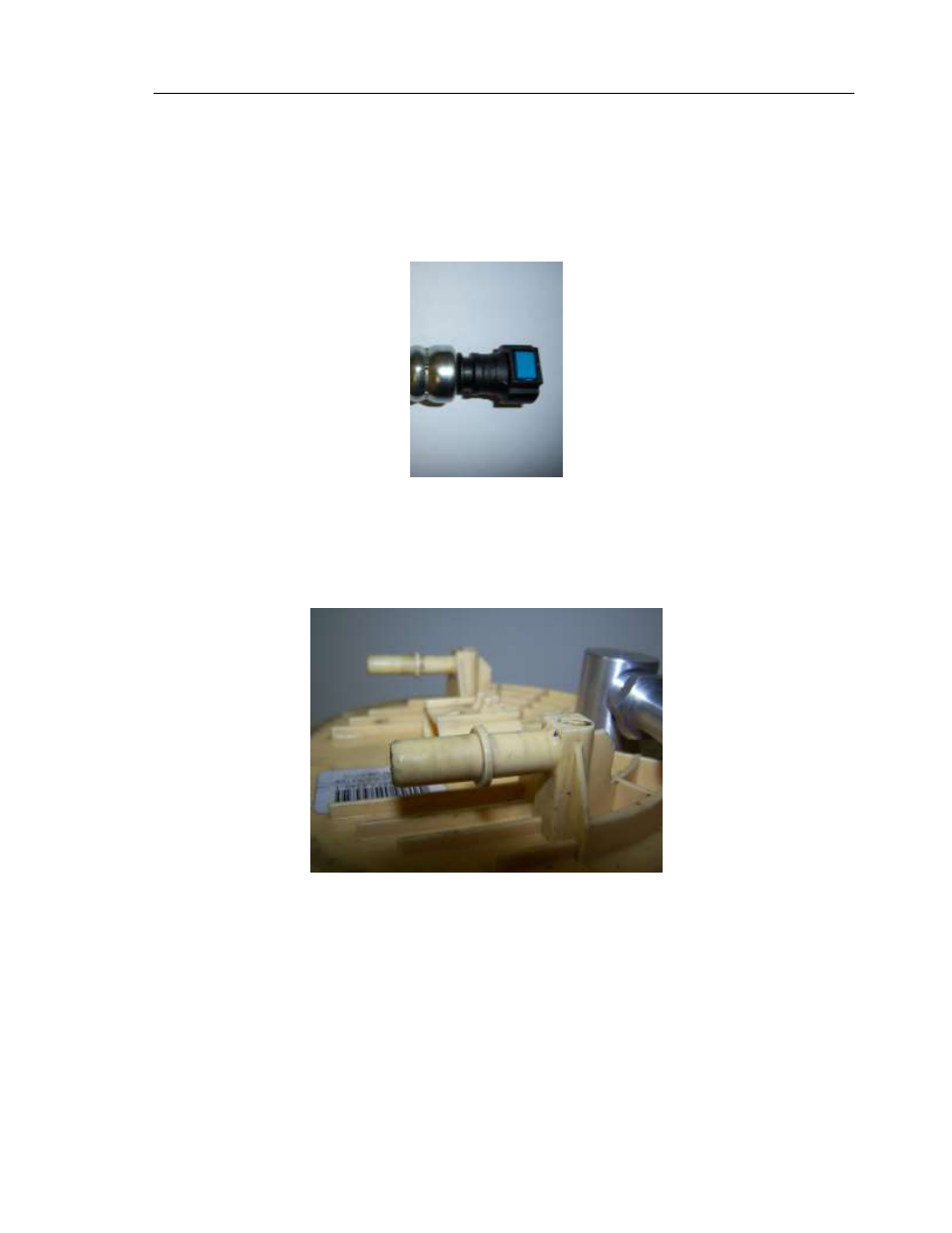

Figure 43
5F-2. Attach the other end of the “Return Hose Assembly” onto the male 3/8” quick connect
on the top of the fuel module that was previously vacated by the factory suction line.
A”click” will be heard when the fitting is properly connected.
Figure 44
5F-3. Any excess fuel hose can be addressed by routing the house in a fashion to take up
the extra length, or a section of the hose can be removed. Push lock splices have
been included if you choose to remove the excess hose.
