Section 6 Electrical Harness
Connecting the power supply leads, cont’d!
6-4A. Route the Red & Black power supply leads to the alternator Connect the Black (-)
lead to the alternator Chassis Ground connection. Connect the Red (+) lead to the
alternator Hot Lead going to the battery.
6-4B. Should you choose to connect the power supply leads directly to the battery,
connect the RED (+) lead to the POSITIVE (+) post of the driver's side battery.
Connect the BLACK (-) lead to the NEGATIVE (-) post of the same battery.

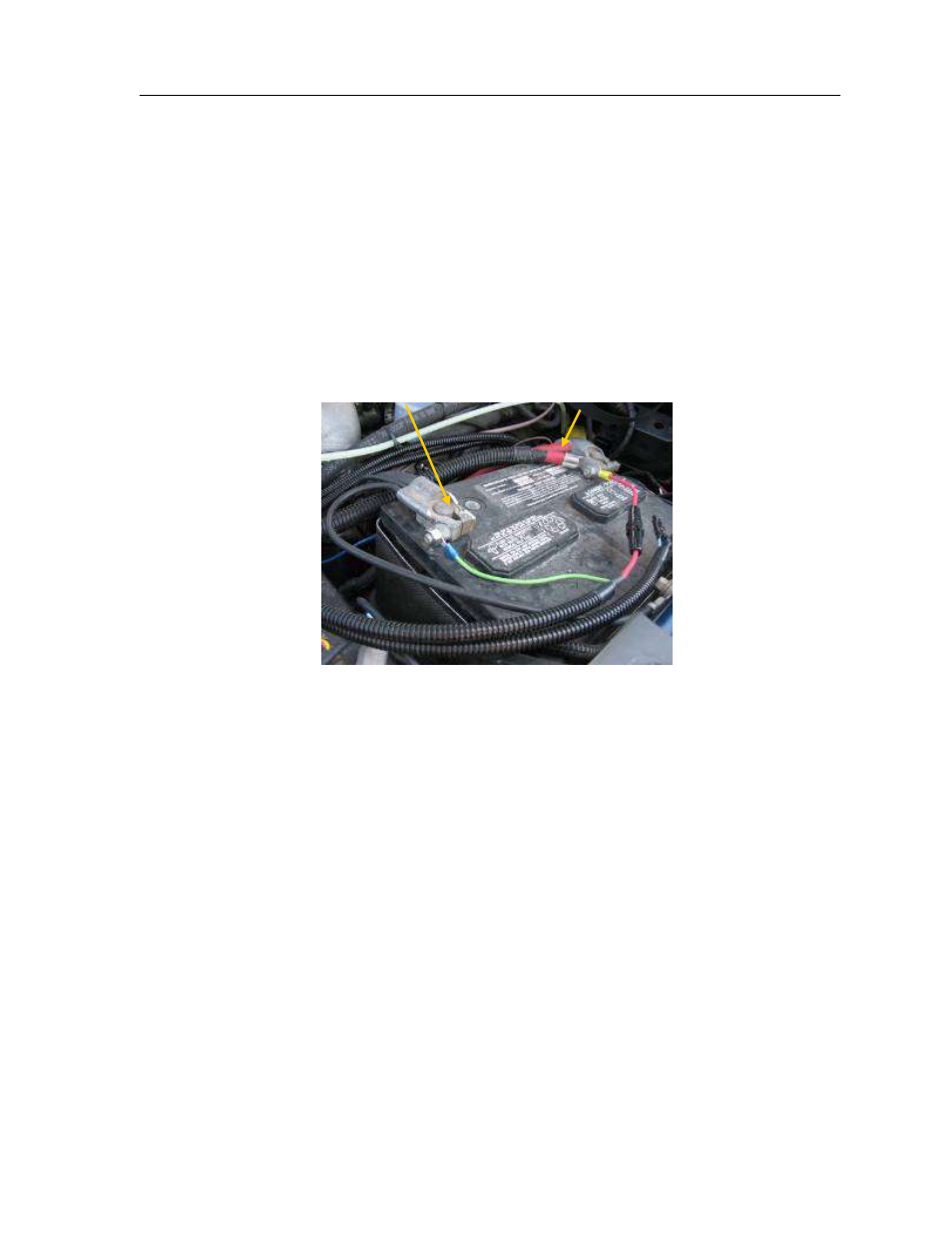

Black (-) Red (+)
Figure 53
