Section 6 Electrical Harness
Connecting the AirDog
®
II Relay Control to the Fuse Panel

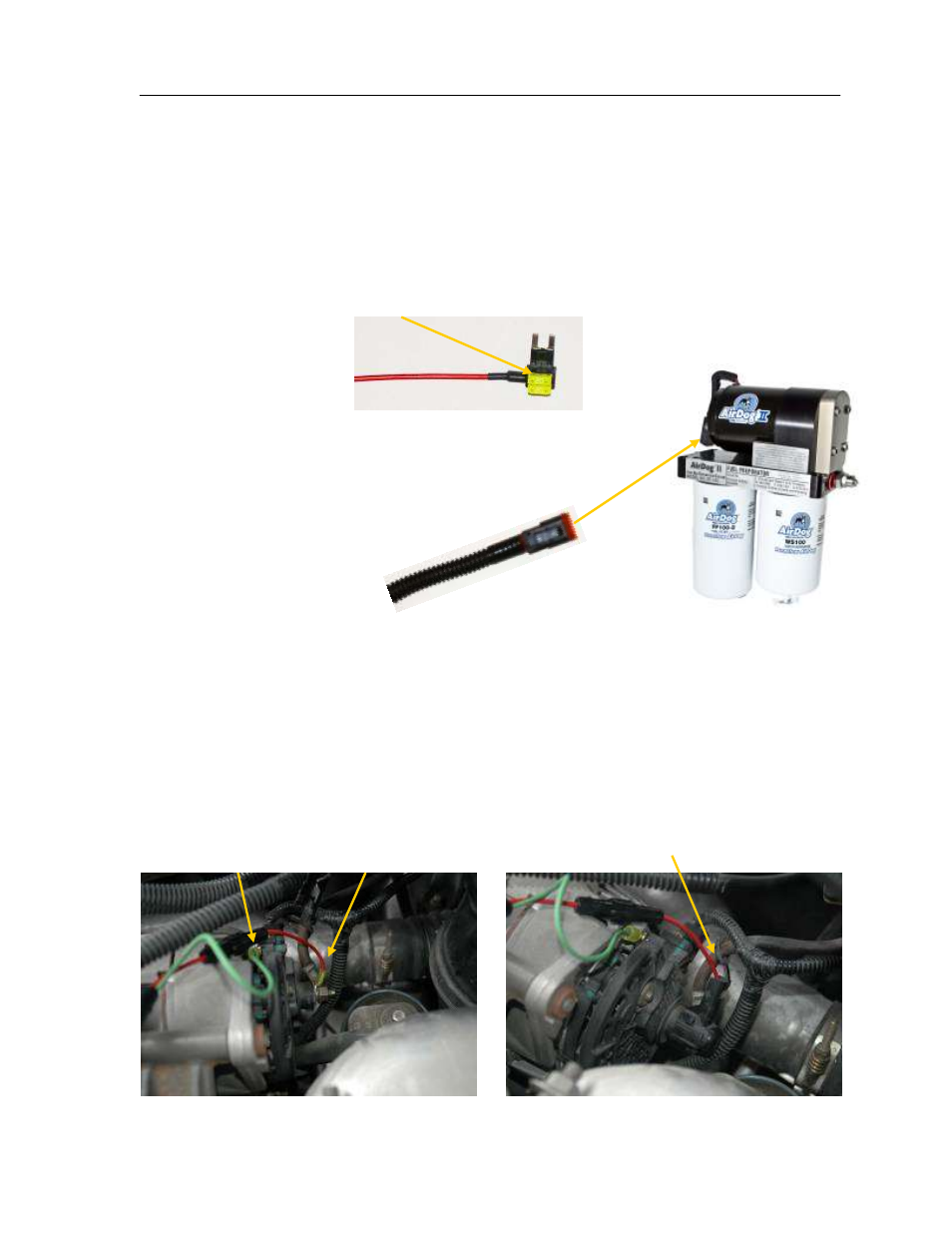

6-2. Route the red, Relay Trigger, wire with the mini fuse
tap attached to the fuse panel located inside the cab
on the driver’s side. Insert the mini fuse tap into a spare
fuse holder or key hot source on the panel that is “hot” when the starter
key is turned to the on position. If you are installing in a spot that is already in use
you will need to remove that fuse and install it into the fuse tap provided so both fuse
spots are occupied.
Figure 49
6-3.
Route the pump motor lead to the AirDog
®
II
Connect the 2 pin Deutsch connector on the end of the
wiring harness into the corresponding pump motor lead
connector on the AirDog
®
II.
Figure 50
NOTE: If the Optional Indicator Light is not used, secure the pressure switch lead to the
wiring harness with a plastic tie. Also, cover the pressure sensor lead to protect it you may
want to use it later.
NOTE: The power supply leads can be connected to the battery or the alternator.
Connecting the power supply leads to the alternator instead of the battery
will create a corrosion free connection.
Black (-) Red (+) Replace the Protective Cover
Figure 51 Figure 52
