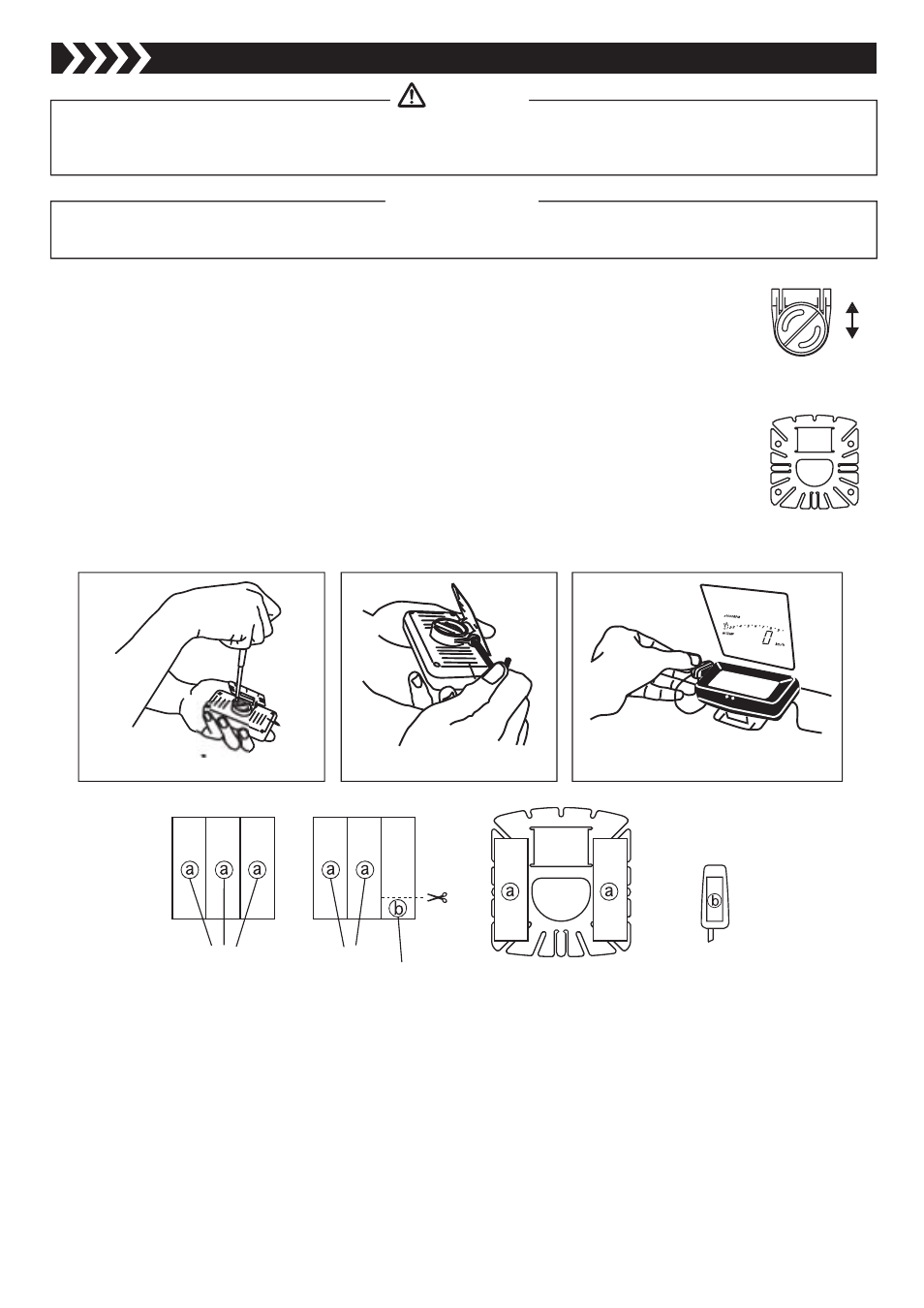

STEP ４ Installation of Display Unit and DIM Sensor
●Improper installation could cause the product to fall and damage the vehicle or cause serious danger by impeding driving.
・Attach the display unit in a location which will not hinder driving.
・Make sure that both the display unit and D.C.Unit are firmly attached.
Warning
１：Tighten temporarily the bracket A and the display unit using a Phillips screwdriver and adjust the
rotative direction.(B- １）
※Bracket A can be attached to the display unit in any direction(upside down, front/back). Determine
the location of the display unit where the display is the most clearly projected on the windshield.
２：Tighten temporarily Bracket B and the display unit to adjust the angle using an Allen wrench.(B-2）
３：Identify the location and angle the display unit on the instrument panel. Then fully tighten Bracket A
where the display is clearly projected on the windshield.
４：Connect the DIM sensor to the connector on the backside of display unit.
５：Dismount the display unit from Bracket B. Attach Bracket B on the instrument panel using double-
sided tape. Bend Bracket B fitting to the form of instrument panel. Set Bracket B using sheet-metal
screws(commercialy available).
６：Fit the display unit into Bracket B and fully tighten.
７：Attach the DIM sensor to the side of display unit towards the direction of movement using double-
sided tape.(B- ３）
※To perceive the anterior brightness, the sensor must not be interrupted by wipers and things.
※Use double-sided tape as follows:
●When leaving car under the direct sunlight, cover the display unit with a white cloth. It prevents the unit from deterioration.
●Before attaching units using double-sided tape, make sure they are clean.
Confirmation
After the installation is done, the next step is the set-up of functions. Please refer to the backside of this manual.
The quick reference chart for the set-up is printed on the inside of the package.
■When the Defi-Link Display VSD CONCEPT is used WITH a connection to the Defi-Link System
■When the Defi-Link Display VSD CONCEPT is used WITHOUT a connection to the Defi-Link System
