Press ENTER button when the following figure is displayed. Use SELECT/BAR SELECT button to select
ON or OFF of the auto warning function.

Press ENTER button when the following figure is displayed. Use SELECT/BAR SELECT button to select
auto or manual of the dim control mode.

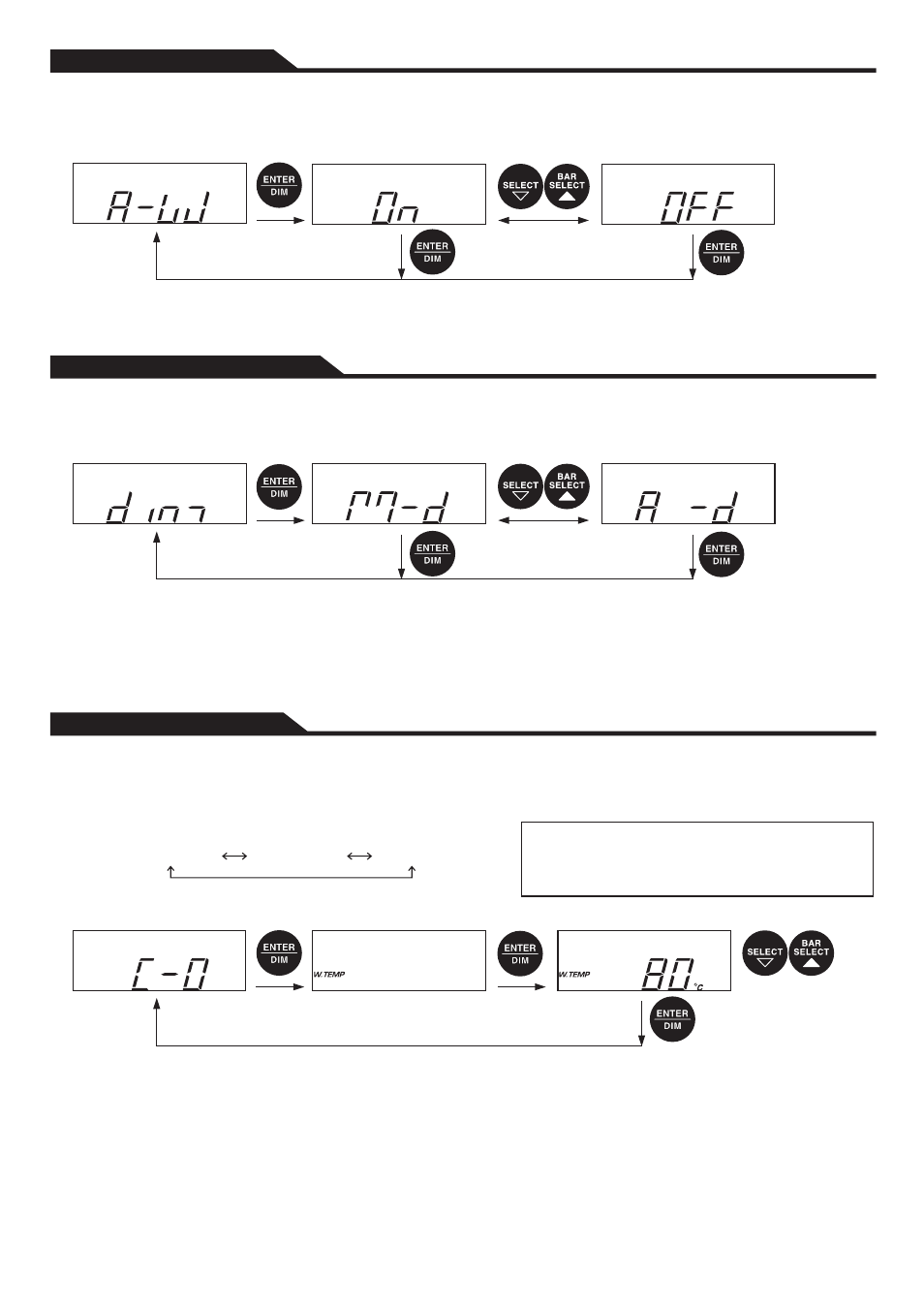

Auto warning setting

⑨Setting of Auto Warning

Dim Control setting

Auto dimmer mode

Manual dimmer mode

⑩Setting of Illumination Control

Control Output setting

⑪Setting of Control Output

■When the Defi-Link Display VSD CONCEPT is used WITHOUT a connection to the Defi-Link System

■When the Defi-Link Display VSD CONCEPT is used WITH a connection to the Defi-Link System

NOTE: If "MPH,

F, PSI" is selected in the

setting of units, data other than
the engine speed is not displayed.

NOTE: If "MPH,

F, PSI" is selected in the

setting of units, data other than
the engine speed is not displayed.

NOTE: When connected to the Defi-Link System, the PEAK button of the D.C.Unit is unavailable.

I)If the auto warning mode is turned ON in the setting of auto warning

NOTE: Even if REC button is pressed in vehicle's stopped condition, the vehicle speed data cannot be

recorded and Rec Mode will turn to Play Mode.

II)If the auto warning mode is turned OFF in the setting of auto warning

Range of setting
Water temp

：21℃∼120℃(69°

∼248°

Oil temp

：51℃∼150℃(123°

∼302°

Press ENTER button when the following figure is displayed. Use SELECT/BAR SELECT button to select
water temperature, oil temperature, or OFF. Then press ENTER button to set the selection. Use
SELECT/BAR SELECT button to set the desired temperature. If SELECT/BAR SELECT button is pressed
and held, the number is fast-forwarded.

W.TEMP

OIL T.

OFF

NOTE: Once pause, fast-forward or rewind is performed with Defi-Link Control Unit II(or Defi-Link Control Unit), the

recorded speed data cannot be played back. To play back the speed data, Play Mode needs to be started
over again. Operation needs to be performed in vehicle's stopped condition. If the PLAY button is pressed
in vehicle's running condition, speed data will not be played back but Play Mode will turn to Rec Mode.

NOTE: The pulse free setting needs to be done again if units are changed.

NOTE: If the Defi-Link Display VSD CONCEPT is linked with the Defi-Link System, the setting of Defi-

Link Control Unit II(or Defi-Link Control Unit) is prioritized.

NOTE: This function operates when the Defi-Link Display VSD CONCEPT is linked with the Defi-Link

System and the temperature sensor is connected.

NOTE: This function operates when the Defi-Link Display VSD CONCEPT is linked with the Defi-Link

System and the temperature sensor is connected.

NOTE: If the Defi-Link Display VSD CONCEPT is linked with the Defi-Link System, the tachometer

warning2 cannot be set. The setting value of the tachometer warning of Defi-Link Control Unit
II(or Defi-Link Control Unit) is applied as a tachometer warning2. Please set up the tachometer
warning of Defi-Link Control Unit II(or Defi-Link Control Unit) higher than the tachometer
warning1 value. If the value is set lower than the warning1, the warning1 will be invalid.

NOTE: If the Defi-Link Display VSD CONCEPT is linked with the Defi-Link System, the warning buzzer

of Defi-Link Control Unit II cannot be absorbed.

NOTE: This function operates when the Defi-Link Display VSD CONCEPT is linked with the Defi-Link

System.

When the auto dimmer mode is on, the brightness of the display is adjusted automatically. Press

When the auto dimmer mode is on, the brightness of the display is adjusted automatically. Press
ENTER to Select one from three stages of brightness in the auto dimmer mode during the real mode or

ENTER to Select one from three stages of brightness in the auto dimmer mode during the real mode or
the peak mode. When the manual dimmer mode is on, the brightness of the display can be set

the peak mode. When the manual dimmer mode is on, the brightness of the display can be set
manually at 5 stages in the real mode or the peak mode.

manually at 5 stages in the real mode or the peak mode.
