4 Positioning / Installing the machine 7
4.2.2 Removing the pallet

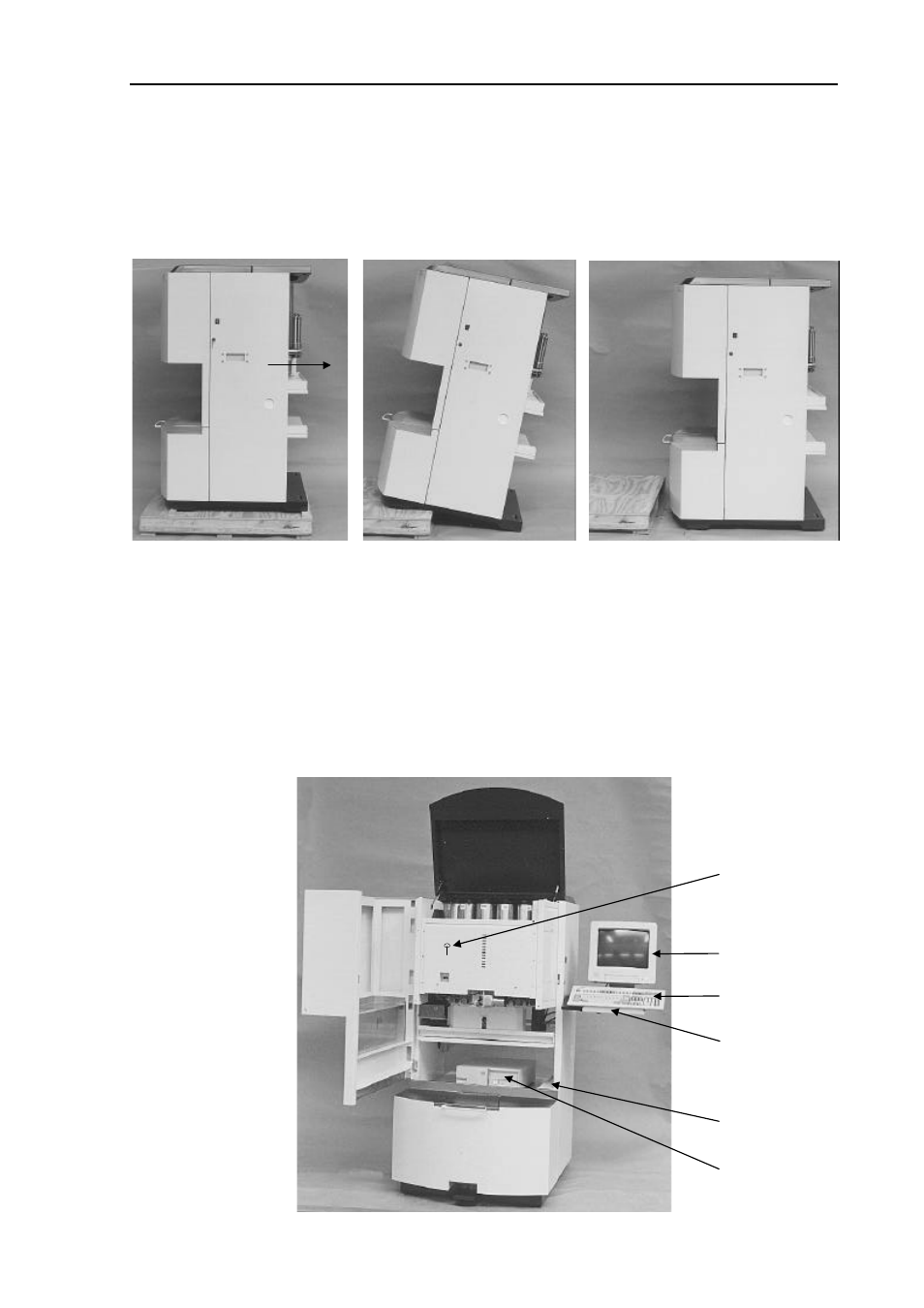

Carefully manoeuvre the machine backwards, with 2 people behind and 1 person in front of the
machine (see figure 2) and lower the machine gently on to its rear wheels, so that the situation in
figure 3 is reached. Remaining in the same formation, tip the machine backwards until it is clear of
the pallet, and the pallet can be pushed out of the way. Once the pallet has been removed, lower the
machine carefully on to its wheels (see figure 4).
4.3 Mounting the monitor stand and installing the computer system
4.3.1 Mounting the monitor stand (HA-s/m/l)
•
Remove the small plate attached to the inside of the machine level with the monitor stand, see
figure 4, number 1. This plate will have to be replaced later so that the cables can be concealed
behind it, to protect them from rotating parts in the machine.
•
Remove the bottom plate of the monitor stand.
•
Mount the stand on the right side of the machine using the four fixing bolts, see figure 5, number
1).
1
figure 2 figure 3
5
3
1
4
6
2
figure 5
figure 4
