5 Operation 10
5.1 Brief overview and function of the operating elements (HA-s/m/l)

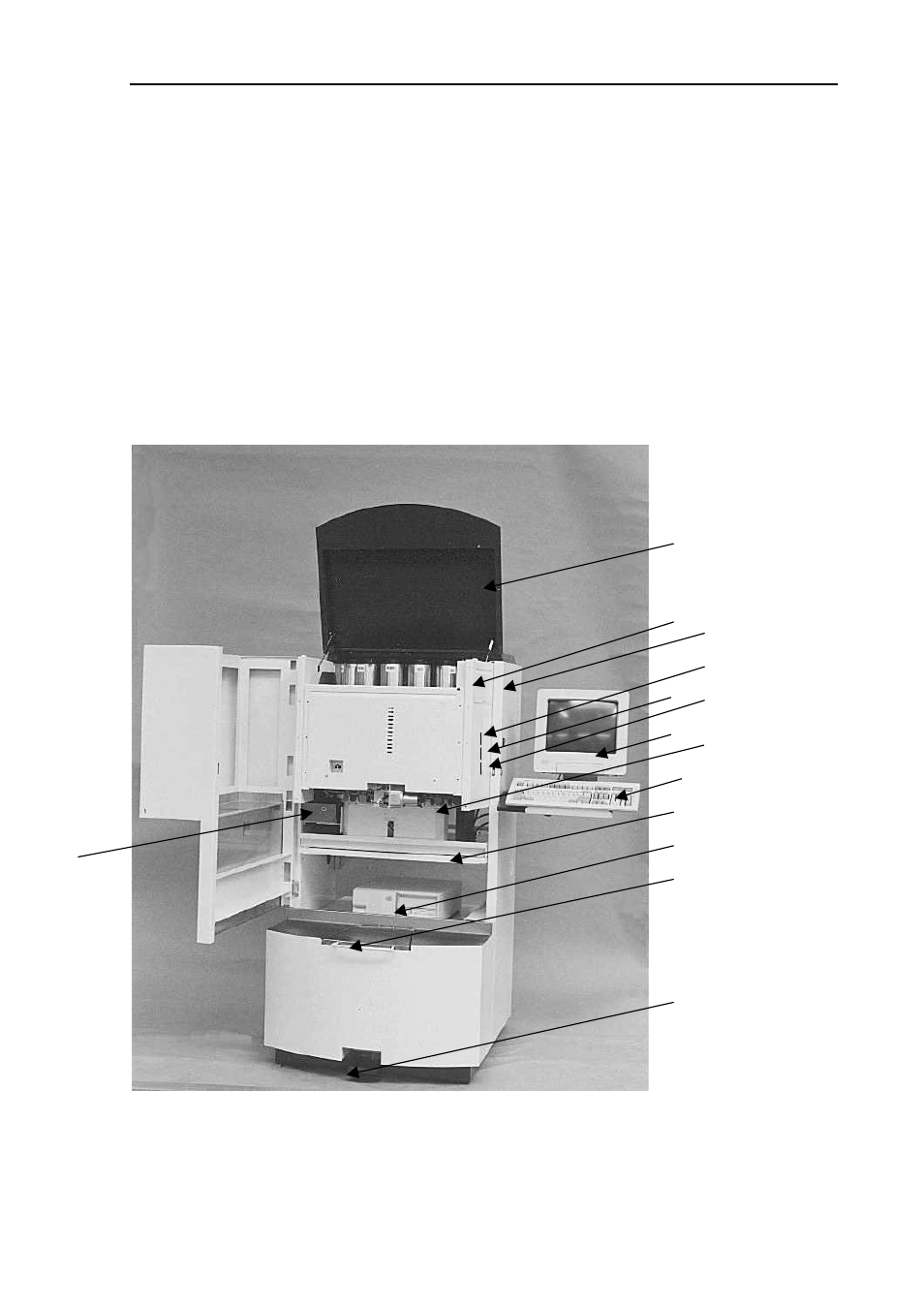

See figure 6 (elements shown with a dotted outline are located inside the machine).
1. Main switch (red)
⇒
Switching the whole machine on and off
2. Monitor
⇒
Monitoring and coordinating the process
3. Keyboard (various versions) ⇒
Controlling the process
4. Computer
⇒
Input and output control unit
5. Lift table unlocking pedal ⇒
Unlocking the lift table
6. Narrow lift table (wide available as option)
⇒
Positioning cans at correct filling height
7. Cleaning brush/Brush tray
⇒
Cleaning the nozzles
8. Punch ¶ ⇒
Punching filling openings in cans
9. Wing door with gas springs
⇒
Closing the access opening to the canisters
10. Thermostat ¶ ⇒
Adjusting temperature of heating element
11. Drip tray ⇒
Catching any spilled paste
12. Computer switch (green)
⇒
Switching the computer on and off
13. Reset lift table / punch ¶
14. Lift table switch (black)
⇒
Resetting the lift table / punch
⇒
Moves the lift table up and down
¶ = Optional
9
13
10
5
6
4
11
2
14
12
1
3
8
7
figure 6
