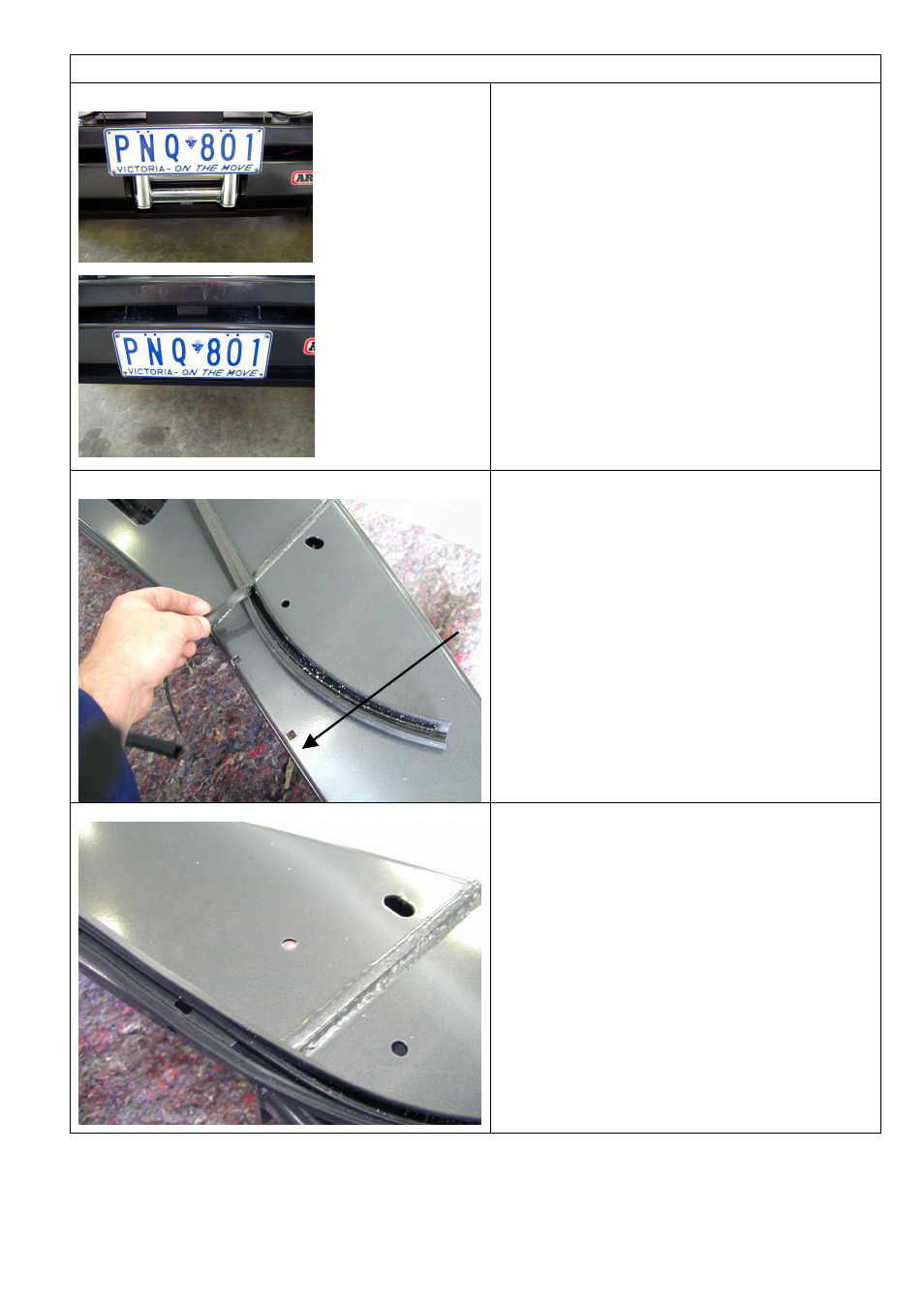

ASSEMBLY SEQUENCE FOR WINCH BUMPER.
19.
With winch
Without winch
(If fitting with winch.)
1. Peel off one side of the double sided tape
and adhere to the top rear side of the number
plate. Note: Clean the adhering surfaces
before applying tape with an alcohol solvent.
2. Peel off the other side of the tape and bolt to
the winch bumper with the M6 X 16mm bolts
and M6 flange nuts through the lower holes
of the number plate.
3. Press firmly to the top of the number plate so
the tape can properly adhere.
(If not fitting with winch.)
1. Bolt the number plate through the top holes
using M6 X 16mm bolts and M6 flange nuts.
If desired the double sided tape can be used
down the sides of the number plate.
20. 1. The rubber extrusion contains a support
section to assist in the moulding. Remove
this section by tearing at one end. Discard
this section.
2. Insert the square plastic plugs into the square
holes on the top face of the wing.
21. 1. Insert the mount strips inside the channel
section of the rubber extrusion. Make sure
the flap section is on the outer side. Allow
generous even amounts of excess at either
end of the strip so that it can be trimmed
later.
