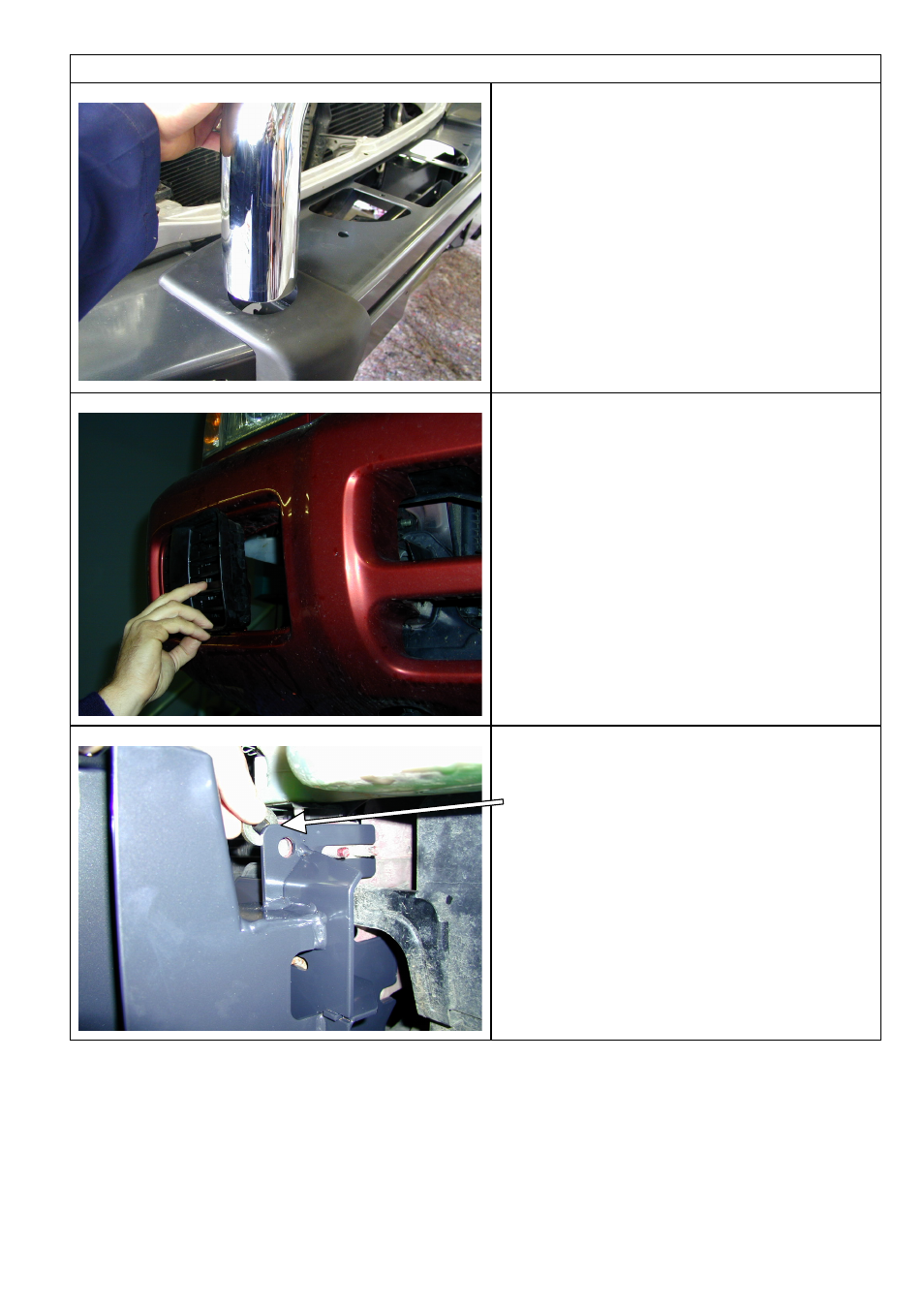

ASSEMBLY SEQUENCE FOR WINCH BUMPER.
4. 1. Push the top chrome tube through the hole
in the buffer and fasten using the M12 x 40mm
bolts, washers and spring washers.
5. 1. Remove the bumper bar.
1. Remove inner guard trims, left and right.
2. Remove Tow Hooks .
3. Remove Impact Absorbers .
NOTE: Set aside all original mounting hardware
and inner guard trims.
6. 1. Mount the Impact Absorber brackets to each
side of the chassis using original fasteners.
2. Fit spacer washer 27 x 12 x 4mm to top hole
of bracket and fasten.
