02/12/04 Page 10 of 12 3782865

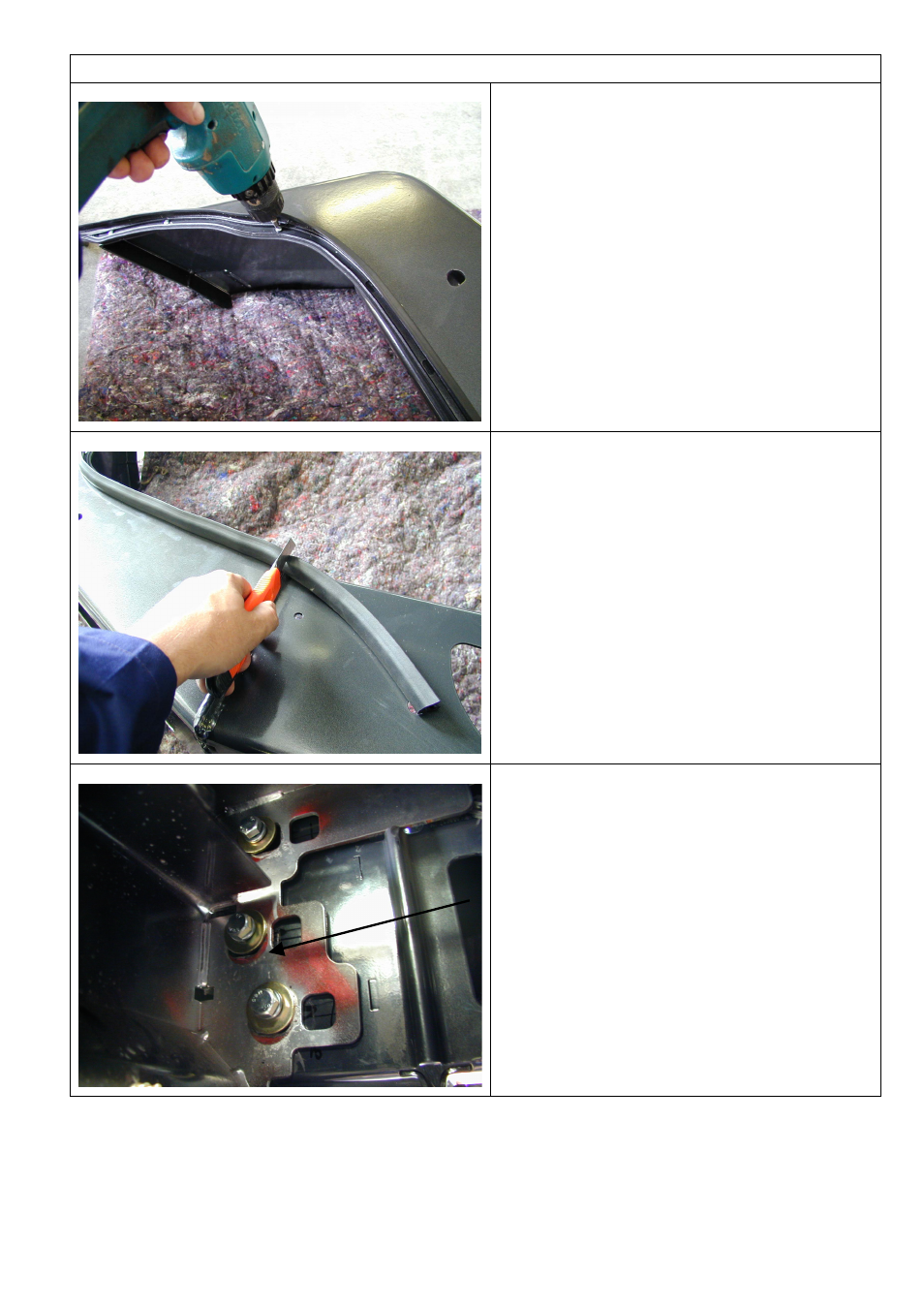

ASSEMBLY SEQUENCE FOR WINCH BUMPER.
22. 1. Using a Philips head screw driver or cordless
drill with a Philips head tip fix the extrusions
to the top of the wings using the self taping
screws.
23. 1. Using a sharp knife cut the excess rubber in
line with the inside end of the wing. Only cut
the inside excess, the other end will be cut
when the winch bumper is fitted.
24. 1. With the aid of another person carefully place
the bar on the mounting brackets.
2. Horizontally and vertically align the bar to the
body and fasten using the six M12 x 40mm
bolts, large washers and M12 spring
washers. Tighten all bolts so as the large
washer deforms inside the rectangular
cutout.
