FITTING PROCEDURE GENERAL

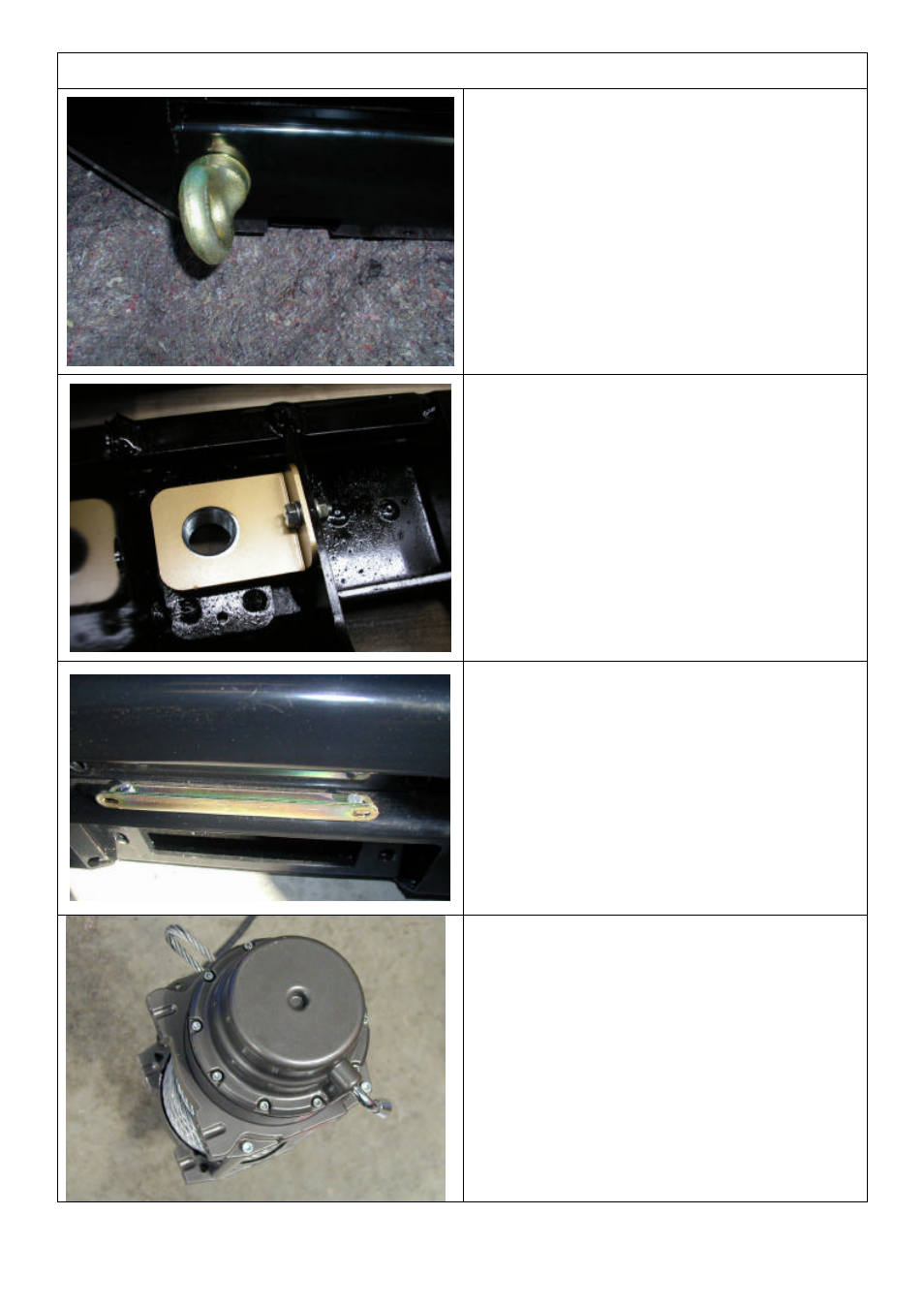

23. Screw in the eyebolt using the large
washer. Eyebolt can be positioned to sit
vertically by rotating the large nut to the
correct position
NOTE: EYEBOLTS SHOULD BE REMOVED
FOR SAFETY REASONS WHEN
TRAVELLING ON PUBLIC ROADS.
24. When the large nut is in its final position,
secure with the nut retaining bracket
using an M6 bolt, washer and flange nut.
25. Secure the number plate bracket using
M6 bolts, flat washers and flange nuts.
Attach the longer side to the bullbar and
the shorter side to the number plate.
Note: As supplied from Warn, the winch handle
on 1500 and 16500lb winches should be in
the position as shown. This is correct
orientation for this bar.
26. Remove cable retaining band and position
cable loop so it will go through roller fairlead
when it is placed in bull bar.
