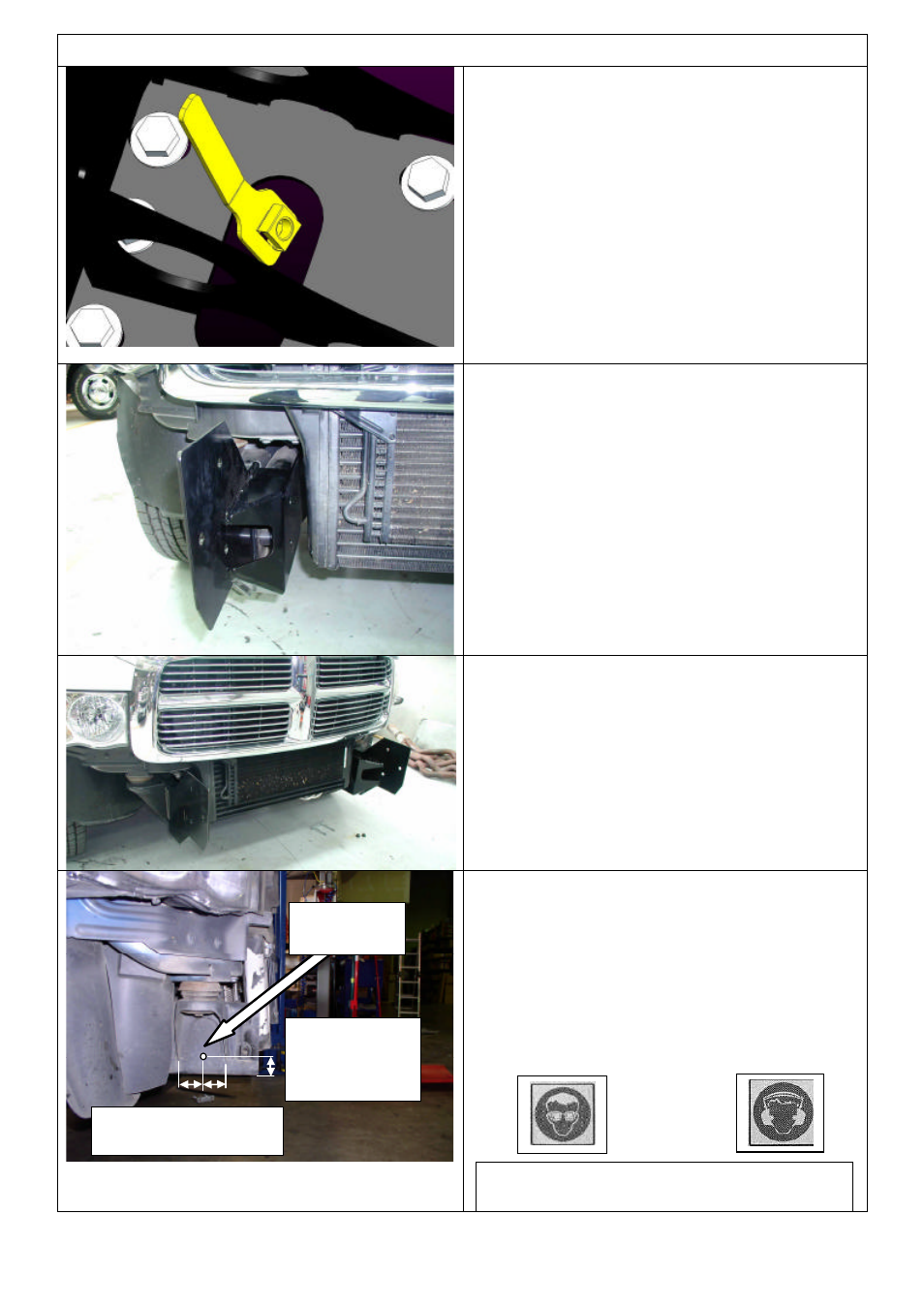

FITTING PROCEDURE GENERAL
11. For pinning bolt from outboard of reinforcing
bracket, fit cage nut plate assembly through
into chassis end aperture as shown, then
fasten in place through drilled pinning hole
with M10 x 30 SEMS bolt and washer set. Do
up tight. Repeat for other side of vehicle.
2500 AND 3500 ONLY STEPS 12 - 18
12. Fit chassis brackets as shown.
13. Insert original U bolts, entering from inboard
face of chassis (you may have to tilt
intercooler to gain sufficient clearance to
allow U bolt to enter this side).
14. Set brackets so front edge is vertical then do
bolts up tight.
15. Replace the intercooler suspension blocks
and bolts if removed for U bolt removal.
16. Mark the position for the pinning hole
centrally between the body mount bracket
flanges as shown on the outboard face of the
chassis rails.
17. Drill through both sides of chassis and mount
bracket flange Dia 10.0mm.
18. Fit M10 x 100 pinning bolt, M10 x 3MM
washer and flange nut set and do up tight.
APPROX.
35mm FROM
UNDERSIDE
OF CHASSIS
LOCATE CENTRALLY
BETWEEN FLANGES
DRILL DIA
12.0mm
Warning: Drilling operations can result in flying
metal debris, safety glasses should be worn.
Warning: Drilling operations can result in flying
metal debris, safety glasses should be worn.
